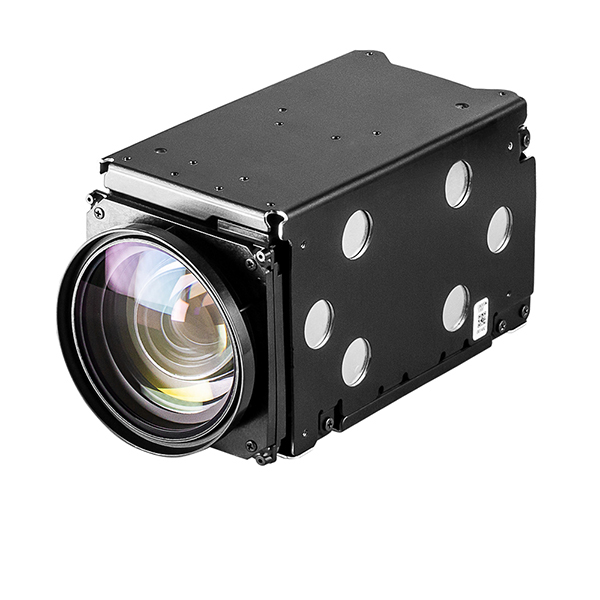

Sony FCB-EV9500L(FCBEV9500L) LVDS auto focus 30x Zoom FHD Camera Block

Sony FCB-EV9500L Main Features:

◆FHD (1080p/60)

◆  Video Output:LVDS
◆  30x Enhanced Optical Zoom
◆  High Sensitivity
◆  Super Image Stabilizer
◆  Flare reduction with the new iris
◆  Color image acquisition during ICR ON
◆  Spot Focus · Spot AE · Spot AWB
◆  Wide Dynamic Range (Wide-D)
◆  Visibility Enhancer (VE)

  • Product Details
  • Product Specs
  • Video
  • Downloads

Sony FCB-EV9500L Product Details:

FCB-EV9500L is a 30x full HD integrated camera movement introduced by SONY in 2021 using LVDS interface. The new lens, image Sensor (1/1.8 Type STARVIS CMOS Sensor) and ISP imager are used to achieve high quality picture and high sensitivity, 30x enhanced optical zoom, wide dynamic, super image stabilization, excellent optical axis consistency, and the latest three-region feature. Suitable for all kinds of ball machine, all-in-one machine, gimbal products, etc.



The FCB-EV9500L is an LVDS interface 30X HD integrated camera movement launched by SONY in 2021, which makes the FCB camera module series further develop and expand. The new FCB-9500 series includes three models: FCB-EW9500H, FCB-EV9500M, FCB-EV9500L.



Sony FCB-EV9500L Applications:

◆ unmanned flight equipment

Security & Surveillance

◆ intelligent transportation

◆ snapshot kiosks

◆ police cars

◆ amblyopia

◆ video conferencing

◆ many other fields

FCB-EV9500L Product Specs:

Image Sensor 1/1.8-type STARVIS CMOS Sensor (4.17M pixels)
Output Image Size (H x V) 1920 x 1080, 1280 x 720
Signal System 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25
Minimum Illumination (50%, High Sensitivity MOde ON) ICR-Off mode: 0.009 lx (Shutter Speed: 1/30 s), 0.0012 lx (1/4 s or 1/3 s)
ICR-Off mode: 0.00008 lx (Shutter Speed: 1/30 s), 0.00005 lx (1/4 s or 1/3 s, 30%)
Minimum Illumination (50%, High Sensitivity MOde OFF) ICR-Off mode: 0.09 lx (Shutter Speed: 1/30 s), 0.012 lx (1/4 s or 1/3 s)
ICR-Off mode: 0.00063 lx (Shutter Speed: 1/30 s)
Recommended Illumination 100 lx – 100,000 lx
Gain Auto/Manual (0 dB – 50.0 dB), 0 – 28 steps
Shutter Speed 1/1 – 1/10000 s, 22 steps
Sync System Internal
Exposure Control 0 dB – +- 10.5 dB, 15 steps
Backlight Compensation Yes
Gamma Standar/Straight Gamma
Aperture Control 16 steps
White Balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), Spot AWB
AE (Auto Exposure Mode) Full Auto, Manual, Priority Mode (shutter/iris), EV compensation, Spot AE, Slow AE
Zoom 30x Enhanced Optical Zoom
36x Stable Zoom
12x Digital Zoom
Lens f = 6.5 mm (wide) to 195.0 mm (tele), F1.6 – 4.8
Zoom Mode Standard Mode / Variable Mode / Direct Mode
Zoom Movement Speed Wide end – Tele end – 4.8 sec. (Focus Tracking ON), 2.9 sec (Focus tracking OFF)
Wide end – Digital 12x tele – 6.1 sec. (29.97p/59.94p), 6.4 sec (25p/50p)
Digital wide – Digital 12x tele – 1.4 sec. (29.97p/59.94p), 1.6 sec (25p/50p)
Focusing System Auto Focus (Normal AF, Interval AF, Zoom Trigger AF (Sensitivity: normal, low), Manual (Standard, Variable, Direct), One Push Trigger, Full Scan One Push, Near Limit, ICR-on Correction, Spot Focus
Focus Movement Time ∞-Near: 1.4 sec.
Horizontal Viewing Angle 58.1°-2.3°
Minimum Object Distance (wide end to tele end) 100 mm – 1200 mm
Auto ICR Yes
Wide Dynamic Range (Wide-D) Yes
Visibility Enhancer Yes
Defog Yes (low/mid/high)
Noise Reduction Yes (3D + 2D / Independent setting (3D, 2D)
Progressive Scan Mode Yes
Image Stabilization Yes
Spot Light Avoidance Yes
Motion Detection Yes
Privacy Zone Masking Yes
Alarm Yes
Slow AE Response Yes
Picture Effects Black White (Monochrome Image)
Picture Freeze Yes
Electronic-Flip (E-FLIP) Yes
Mirror Image Yes
Slow Shutter Yes
Temperature Readout Yes
Title Display Yes (20 characters / line, max. 11 lines)
Camera Mode Display Yes (English)
Video Output Digital: Y/Pb/Pr 4:2:(HDMI) Y:8bit. C:8bit
RGB 4:4:4(HDMI) R:8bit G:8bit B:8bit
Camera Control Interface VISCA protocol (CMOS 3.3V Level, 5.5V tolerance); Baud Rate : 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2 kbps, Stop bit: 1 bit
Power Requirements 7.0 V – 12.0 V DC
Power Consumption 4.6 W (When motor operates: 6.3W)
Operating Temperature -5 °C – +60 °C
Storage Temperature -20 °C – +60 °C
Operating Humidity 20% – 95% (Absolute humidity : 36 g/m3)
Storage Humidity 20% – 95% (Absolute humidity : 36 g/m3)
Dimensions (W x H x D) 56.0 x 64.0 x 125 mm
Mass Approx. 439 g
