FCB-EW9500H Weight Reduced Version 4MP HDMI CMOS Camera Module

FCB-EW9500H Weight Reduced Version 4MP HDMI CMOS Camera Module

FCB-EW9500H Weight Reduced Version Features Sensor: 1/1.8-inch STARVIS CMOS Video Output: 4MP HDMI (2160P/60), (Approx. 4.17MP effective pixels) Lens: 30× Enhanced Optical Zoom, 12× Digital Zoom Low Illumination Performance: ICR-Off Mode: 0.009 lx (Shutter Speed: 1/30s) ICR-On Mode: 0.00008 lx (Shutter Speed: 1/30s) Dimensions: 76.0 × 62.0 × 125.0 mm Weight: Approx. 310g Other Functions: High definition, high sensitivity, super image stabilization, wide dynamic range, starlight night vision, day/night switching, fog penetration, highlight suppression, etc. Applications: Drones, robots, handheld devices and other load-sensitive scenarios

在线询价
  • 产品详情

View

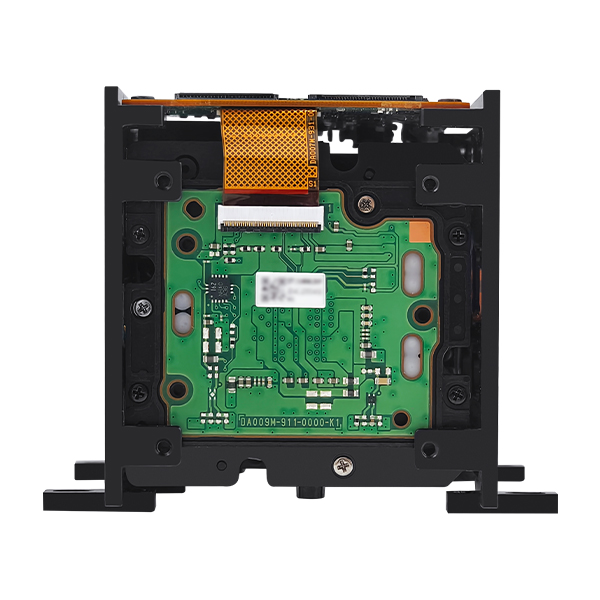

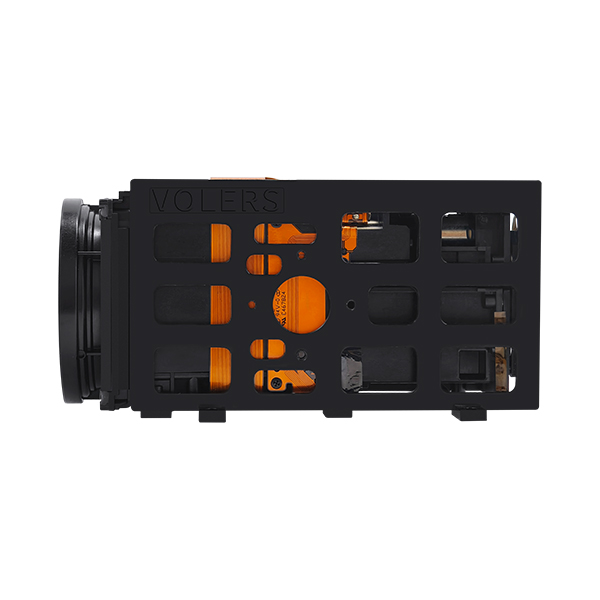

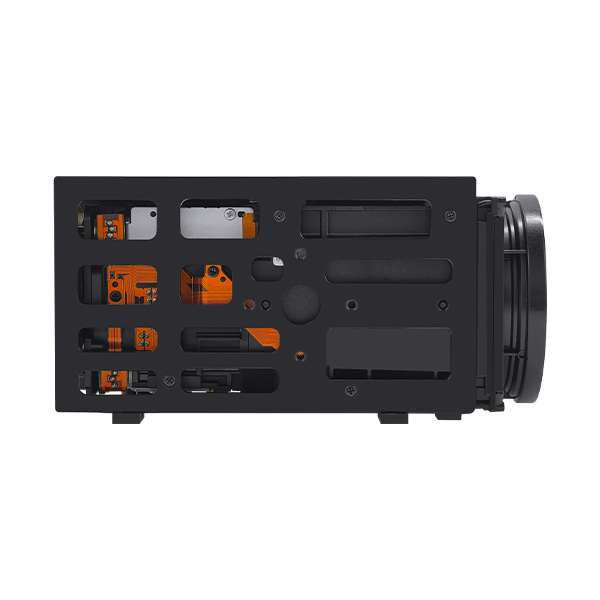

  The FCB-EW9500H Weight-Reduced Version is a lightweight camera module secondarily developed by Ruiloog Electronic, an officially authorized distributor of Sony (China) and a professional high-definition video secondary development solution provider. Developed based on the original Sony FCB-EW9500H, it retains full core performance while achieving weight reduction, specially tailored for load-sensitive scenarios such as drones, small pan-tilts and handheld devices.   Ⅰ. Why Launch the Weight-Reduced Version The original Sony FCB-EW9500H camera module weighs 439 grams, which is relatively heavy among Sony integrated camera modules. Its excessive weight brings obvious limitations in many application scenarios. For scenarios with strict weight constraints such as drone mounting, robot visual navigation, handheld devices, small pan-tilts and portable inspection equipment, the standard original model cannot meet actual deployment requirements.   Ⅱ. Weight Reduction Solution Ruiloog Electronic redesigned the original metal housing of the Sony FCB-EW9500H into a customized aluminum alloy housing. The weight is successfully reduced from the original 439g to 310g, making the camera module perfectly suitable for application scenarios with high lightweight requirements. The weight-reduced FCB-EW9500H still adopts the original core components of Sony FCB-EW9500H, including the image sensor, lens and image processing circuit. It fully maintains the original core indicators such as high-definition image quality, low-light performance and zoom capability.   Ⅲ. Product Advantages 1. Reduce Load Burden The lightweight FCB-EW9500H effectively lowers the bearing pressure of terminal equipment and improves overall operating performance. 2. Enhance Stability and Controllability In scenarios requiring fast movement and frequent shooting angle adjustment, such as robot visual navigation and drone aerial photography, the lighter weight effectively reduces equipment jitter and ensures clear and stable imaging. 3. Expand Application Scope It is not only applicable to traditional video surveillance, intelligent transportation and other conventional fields, but also widely used in emerging industries with extremely high weight requirements, including drones, service robots and underwater robots.

Features

  Sensor: 1/1.8″ STARVIS 2 CMOS Sensor (Approx. 4.17MP effective pixels) Max Frame Rate: 2160p/60fps Output Interface: 4K HDMI Zoom: 30X Enhanced Optical Zoom, 12X Digital Zoom Lens: 6.5mm ~ 162.5mm, F1.6 – 4.8 Output Resolution: 2688x1512, 2560x1440, 1920×1080, 1280×720 Minimum Illumination: 0.009 Lux (ICR OFF) Minimum Illumination: 0.00008 Lux (ICR ON) Horizontal Viewing Angle: Approx. 58.1° Image Stabilization: Super Image Stabilization (Super / Super+) Other Features: Wide Dynamic Range, Optical Axis Consistency, Infrared-sensitive Color Mode, Spot Auto Focus / Exposure / White Balance, Highlight Suppression, Point Light Reduction, Digital Noise Reduction, Motion Detection, Privacy Masking Dimensions: 76.0 × 62.0 × 125.0 mm Weight: Approx. 310g

Product Specs

FCB-EW9500H Weight Reduced Version


Image Sensor 1/1.8-type STARVIS CMOS Sensor (4.17M pixels)
Output Image Size (H x V) 2688 x 1512 2560 x 1440 1920 x 1080, 1280 x 720
Signal System 2160p/60, 2160p/59.94, 2160p/50, 2160p/30, 2160p/29.97, 2160p/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25
Minimum Illumination (50%, High Sensitivity MOde ON) ICR-Off mode: 0.009 lx (Shutter Speed: 1/30 s), 0.0012 lx (1/4 s or 1/3 s) ICR-Off mode: 0.00008 lx (Shutter Speed: 1/30 s), 0.00005 lx (1/4 s or 1/3 s, 30%)
Minimum Illumination (50%, High Sensitivity MOde OFF) ICR-Off mode: 0.09 lx (Shutter Speed: 1/30 s), 0.012 lx (1/4 s or 1/3 s) ICR-Off mode: 0.00063 lx (Shutter Speed: 1/30 s)
Recommended Illumination 100 lx - 100,000 lx
Gain Auto/Manual (0 dB - 50.0 dB), 0 - 28 steps
Shutter Speed 1/1 - 1/10000 s, 22 steps
Sync System Internal
Exposure Control 0 dB - +- 10.5 dB, 15 steps
Backlight Compensation Yes
Gamma Standar/Straight Gamma
Aperture Control 16 steps
White Balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), Spot AWB
AE (Auto Exposure Mode) Full Auto, Manual, Priority Mode (shutter/iris), EV compensation, Spot AE, Slow AE
Zoom 30x Enhanced Optical Zoom 36x Stable Zoom 12x Digital Zoom
Lens f = 6.5 mm (wide) to 162.5 mm (tele), F1.6 - 4.8
Zoom Mode Standard Mode / Variable Mode / Direct Mode
Zoom Movement Speed Wide end - Tele end - 4.8 sec. (Focus Tracking ON), 2.9 sec (Focus tracking OFF) Wide end - Digital 12x tele - 6.1 sec. (29.97p/59.94p), 6.4 sec (25p/50p) Digital wide - Digital 12x tele - 1.4 sec. (29.97p/59.94p), 1.6 sec (25p/50p)
Focusing System Auto Focus (Normal AF, Interval AF, Zoom Trigger AF (Sensitivity: normal, low), Manual (Standard, Variable, Direct), One Push Trigger, Full Scan One Push, Near Limit, ICR-on Correction, Spot Focus
Focus Movement Time ∞-Near: 1.4 sec.
Horizontal Viewing Angle 58.1°-2.3°
Minimum Object Distance (wide end to tele end) 100 mm - 1200 mm
Auto ICR Yes
Wide Dynamic Range (Wide-D) Yes
Visibility Enhancer Yes
Defog Yes (low/mid/high)
Noise Reduction Yes (3D + 2D / Independent setting (3D, 2D)
Progressive Scan Mode Yes
Image Stabilization Yes
Spot Light Avoidance Yes
Motion Detection Yes
Privacy Zone Masking Yes
Alarm Yes
Slow AE Response Yes
Picture Effects Black White (Monochrome Image)
Picture Freeze Yes
Electronic-Flip (E-FLIP) Yes
Mirror Image Yes
Slow Shutter Yes
Temperature Readout Yes
Title Display Yes (20 characters / line, max. 11 lines)
Camera Mode Display Yes (English)
Video Output Digital: Y/Pb/Pr 4:2:(HDMI) Y:8bit. C:8bit RGB 4:4:4(HDMI) R:8bit G:8bit B:8bit
Camera Control Interface VISCA protocol (CMOS 3.3V Level, 5.5V tolerance); Baud Rate : 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2 kbps, Stop bit: 1 bit
Power Requirements 7.0 V - 12.0 V DC
Power Consumption 4.6 W (When motor operates: 6.3W)
Operating Temperature -5 °C - +60 °C
Storage Temperature -20 °C - +60 °C
Operating Humidity 20% - 95% (Absolute humidity : 36 g/m3)
Storage Humidity 20% - 95% (Absolute humidity : 36 g/m3)
Dimensions (W x H x D) 76.0 × 62.0 × 125.0 mm
Mass Approx. 310 g (10.93 oz)
