| Model |

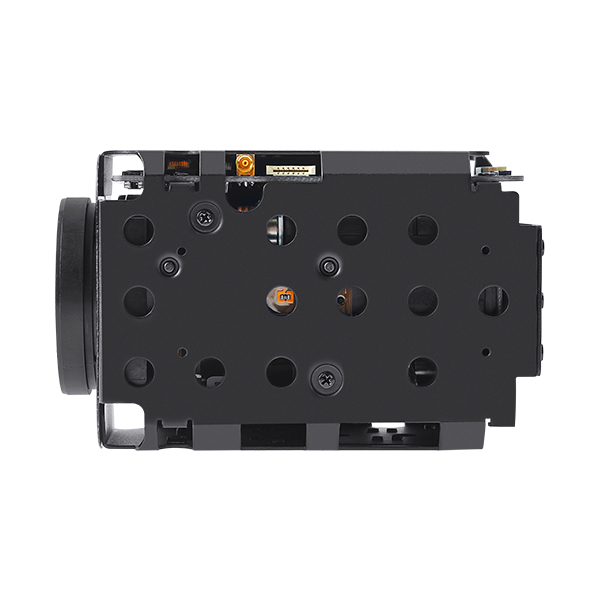

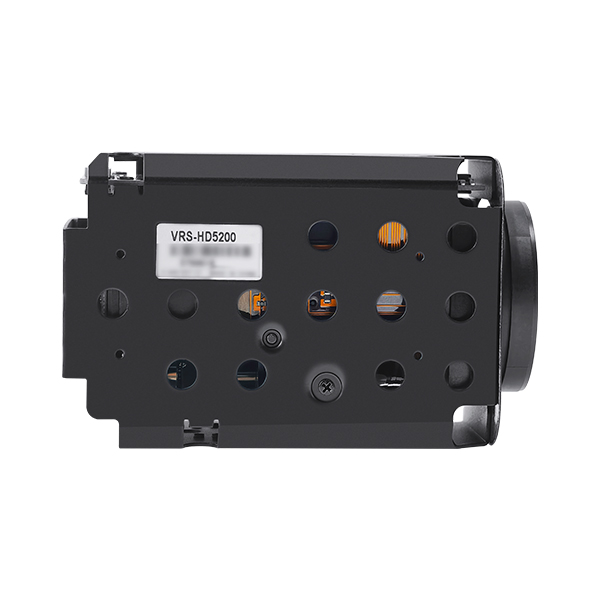

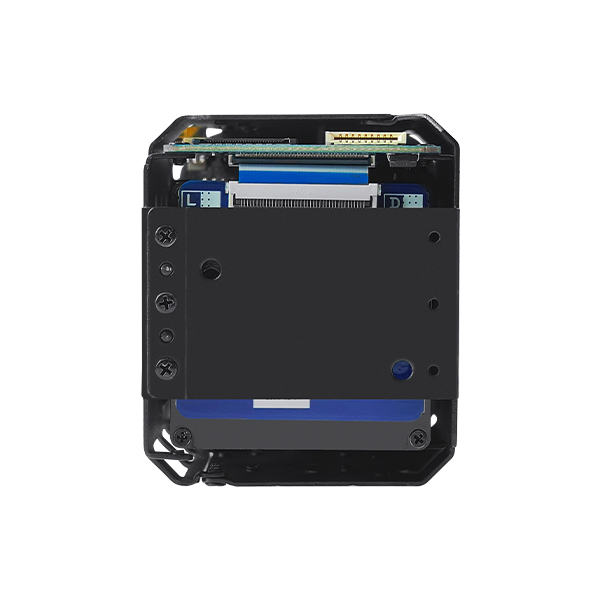

VRS-HD5200 |
| Image Sensor |
1/2.8" Sony CMOS Sensor |
| Total Pixels |
1,945 (H) x 1,109 (V) = 2.16M Pixels |
| Active pixels |
1,937 (H) x 1,097 (V) = 2.12M Pixels |
| Scanning system |
Progressive Scan |
| Sync. System |
Internal |
| Resolution |
Digital:1080p/30, 1080p/25,1080i/60, 1080i/50, 720p/60, 720p/50, 720p/30, 720p/25
Analog : 700TVL |
| Min. illumination |
Color(1/30s, 78dB) : 0.01 lux, BW(1/30s, 78dB) : 0.001 lux
Color DSS(1/1s, 78dB) : 0.001 lux , BW DSS(1/1s, 78dB) : 0.0001 lux |
| Video Output |
HD : HD-SDI, EX-SDI
Analog SD : CVBS(without WDR) |
| S/N Ratio |
more than 50dB (AGC off) |
| Lens |
| Lens type |
20x Day & Night Zoom Lens |
| Zoom Ratio |
Optical 20x, Digital 32x Zoom |
| Focal Length |
f = 5.2mm ~ 104mm |
| Aperture Ratio |
F1.5 (wide) ~ F3.5 (tele) |
| Angle of View (D, H, V) |
Wide |
63.2° |
56.4° |
33.5° |
| Tele |
3.5° |
3.1° |
1.7° |
| Function |
| AF Mode |
Auto / One Push / Manual |
| Min. Distance |
0.5 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Lens Refresh |
One Push / 1 ~ 10Day |
| Digital Zoom |
Off / MAX 2x ~ 32x |
| Exposure |
Auto / Iris.P / Shut.P / Manual |
| Gain Control (AGC) |
Off / On |
| Shutter Speed |
1/30(25) ~ 1/60,000 sec |
| Iris |
0 ~ 20 steps |
| Digital Slow Shutter (DSS) |
Off / 2x / 4x / (8x : 60 or 50 fps mode only) |
| Brightness |
0 ~ 20 steps |
| WDR/BLC |
OFF / WDR / BLC |
| Day&Night |
Auto / Day / Night / Ext-in |
| White Balance |
Auto / One Push / Manual / Indoor / Outdoor / Auto-Ext |
| HLC |
Off / On / Night Only |
| DNR |
Auto / Off / Low / Middle / High |
| Mirror |
Off / H / V / H&V |
| Sharpness |
0 ~ 10 steps |
| ACE |
Off / Low / Middle / High |
| Defog |
Off / On(Auto / Manual) |
| Privacy Mask |
Max. 24 Areas |
| Motion Detection |
Max. 3 Areas |
| Defect Detection |
Off / On |
| System |
NTSC / PAL |
| Communication |
Baud Rate : 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200
Protocol : VISCA / Pelco-D / Pelco- P / Update |
| Language |
English / Simplified Chinese / Traditional Chinese / Japanese |
| Power Source |
9V to 15V DC |
| Power Consumption |
500mA |
| Operating Temperature |
-20℃ ~ +60℃ (Humidity : 0%RH ~ 90%RH) |
| StorageTemperature |
-10℃ ~ +50℃ (Humidity : 0%RH ~ 90%RH) |
| External Dimension |
50(W) x 60(H) x 97(D) |
| Weight |
Approx 232g |
Sony FCB camera block
