fcb-ew9500h | fcb-ev9500m | fcb-ev9500L

Fcb-ew9500h | fcb-ev9500m | fcb-ev9500L Technical Manual Download. A new color camera block that achieves higher visibility by adopting new lens, image sensor, and ISP by Japanese manufacturer.

FCB-EW9500H

4M (2160p/60) HDMI 30x Enhanced Optical Zoom

FCB-EV9500M

Full HD (1080p/60) MIPI 30x Enhanced Optical Zoom

Full HD (1080p/60)

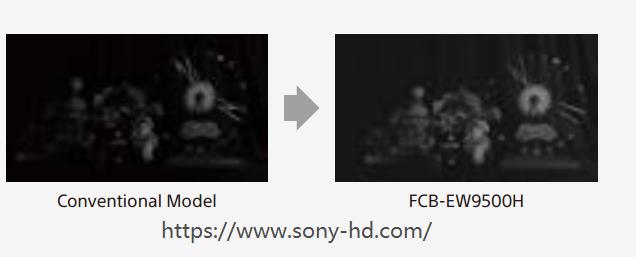

LVDS 30x Enhanced Optical Zoom Launch schedule: First half of 2022 High Resolution Utilizing a 4M sensor and sharp lens achieve superior resolution and accurate image representation with the evolved AF/AE/AWB functions even in low light environments. Combined with enhanced optical zoom achieve a high image quality from the Wide end to the Tele end. High Sensitivity Through introduction of new cell structures and circuit technology, the series efficiently uses light, achieving twice the sensitivity compared to conventional image sensors. Consequently, clear images can be captured even during the night and in dark environments. Super Image Stabilizer Enables capturing of highly precise video with reduced blurring even in harsh environments with strong vibrations by greatly improving blur suppression and image stabilizer. Equipped with the “Super” and “Super+ (plus)”* modes. *Available during full HD or HD output

Features

30x Enhanced Optical Zoom Using a compact lens designed for resolutions up to 8M the camera maximizes the coverage of the 4M sensor. The newly designed lens provides high resolution and low aberration, making it capable of capturing high resolution images that span from the Tele end from the screen center to the surrounding edges. There is no image deterioration using the 30x enhanced optical zoom. Experience full sharpness and dramatically reduced chromatic aberration in full HD output and also achieve images with sharp resolution during 4M output. Equipped with an approximately 417 millioneffective-pixel, 1/1.8-type high sensitive, AR-coated (anti-reflective coating) CMOS sensor. With a high spectral sensitivity value in near infrared to infrared, it is especially effective for security uses. Furthermore, the AR coating minimizes the ghost phenomenon and enables capturing of images without missing crucial information even during the night and in dark environments. Super Image Stabilizer Applying a wide correction area using 4M pixels the camera series suppresses blurs from strong vibrations and rotational vibrations compared to conventional models. There are 2 modes available to select from based on the scale of  vibrations. Super Suppresses strong vibrations with a wider correction area compared to conventional electronic vibration suppressors. Super+ By employing a wider correction area than “Super,” “Super+” suppresses intense vibrations that cannot be suppressed with “Super.” Potential application: Shipboard, attachments for ITS surveillance, on bridges, drones, vehicles, etc. Flare reduction with the new iris Diamond flares and ghosts that occur on lenses disrupts focusing and deteriorates the image quality. The new lens adopts 7 blades compared to the conventional 2 blades, improving this phenomenon by generating fine circular flares, and thus greatly improving image quality.

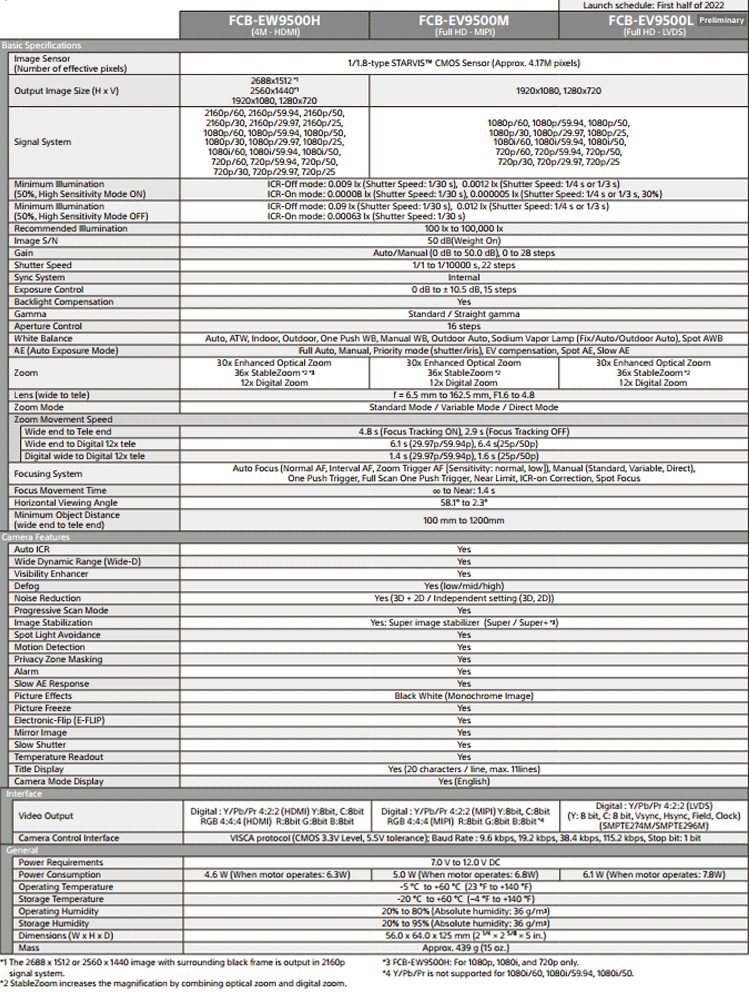

FCB-EW9500H FCB-EV9500M FCB-9500L Specifications
