Sony FCB camera block
FCB-EV7520, SONY autofocus camera, using 1/2.8 TYPE Exmor R CMOS image sensor, can achieve unprecedented levels of sensitivity, effective pixels of about 2.13 million, support Full HD(full HD), Using a 30x optical zoom lens and a unique image signal processor (ISP), 1080P/60fps high-quality picture can be obtained.
In high sensitivity mode, the SONY FCB-EV7520 camera can operate effectively in light levels as low as 0.35 lx (ICR enabled), providing a clear view of the object even in very low light. The main functions include VISCA command protocol, wide dynamic, image stabilization, defog, advanced noise reduction, automatic ICR, spherical privacy area masking and visibility enhancement, which can effectively improve the clarity of the picture.

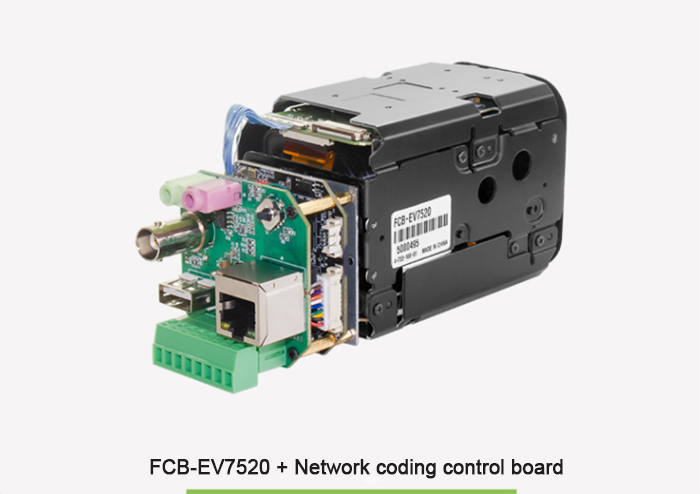

SONY FCB-EV7520 camera module can be used with HDMI HD interface board, HD-SDI mini interface board, SDI/HDMI/CVBS three-in-one interface board, network HD interface board, MIPI interface board and other interface boards developed by Xuanzhong Technology. Output HD video signal, and support external keys to achieve zoom, focus, gain, white balance and other functions.
| Image Sensor | 1/2.8-type Exmor R CMOS |
| Number of Effective Pixels | Approx.2.13 Megapixels |
| Signal System | Less than 1.4 lx (F1.6, ICR off) |
| Minimum illumination (50%) | |
| High Sensitivity Mode | Colour: 0.01 lx (F1.6, AGC on, 1/30s) |
| Normal Mode | Colour: 0.1 lx (F1.6, AGC on, 1/30s) |
| S/N Ratio | More than 50 dB |
| Gain | Auto/Manual 0 dB to 50.0dB (0 to 28 steps +2 step/ total 15 steps) – Max. Gain Limit 10.7 dB to 50.0 dB (6 to 28 steps +2 tep/ total 12 steps) |
| Shutter Speed | 1/1 s to 1/10,000 s, 22 steps |
| Sync System | Internal |
| Exposure Control | Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Backlight Compensation | Yes |
| Aperture Control | 16 Steps |
| White Balance | Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual |
| Lens | 30x optical zoom f = 4.3 mm (wide) to 129.0 mm (tele) F1.6 to F4.7 |
| Digital Zoom | 12x (360x with optical zoom) |
| Focusing System | Auto (Sensitivity: normal, low), One-push AF, Manual, Interval AF, Zoom Trigger AF, Focus compensation in ICR on |
| Horizontal Viewing Angle | |
| 1080p Mode | 63.7° (wide end) to 2.3° (tele end) |
| 720p Mode | 63.7° (wide end) to 2.3° (tele end) |
| SD | 47.8° (wide end) to 1.7° (tele end) |
| Minimum Object Distance | 10 mm (wide end) to 1200 mm (tele end) (Default: 300 mm) |
| Auto ICR | Yes |
| Wide-D | Yes |
| Visibility Enhancer | Yes |
| De-fog | Yes |
| HLC | Yes |
| Noise Reduction | Yes (6 steps) |
| Image Stabilization | Yes |
| StableZoom | Yes |
| Spherical Privacy Zone Masking | Yes |
| Motion Detection | Yes |
| Alarm | Yes |
| Slow AE Response | Yes |
| Picture Effects | E-Flip, Nega Art, Black & White, Mirror image, Colour enhancement |
| Slow Shutter | Yes |
| Temperature Readout | Yes |
| Title Display | 20 characters/line, max. 11 lines |
| Camera Mode Display | Yes |
| Key Switch Control | No |
| Camera Operation Switch | No |
| Video Output | |
| HD | N/A |
| SD | Digital: Y/Cb/Cr 4:2:2 via LVDS (Signal format conforms to SMPTE 274/SMPTE 296) – VBS |
| Camera Control Interface | VISCA (CMOS 5 V level) – Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, 115.2 Kbps, Stop bit: 1 bit |
| Power Requirements | 6.0 V to 12.0 V DC |
| Power Consumption | 3.2 W (zoom/focus inactive) – 4.0 W (zoom/focus active) |
| Operating Temperature | -5°C to +60°C (23°F to 140°F) |
| Storage Temperature | -20°C to +60°C (-4°F to 140 °F) |
| Operating Humidity | 20% to 80%, Absolute humidity: 36 g/m3 |
| Dimensions (W x H x D) | 50.0 x 60.0 x 89.7 mm (2 x 2 3/8 x 3 5/8 inches) |
| Mass | 255 g (9.0 oz) |
