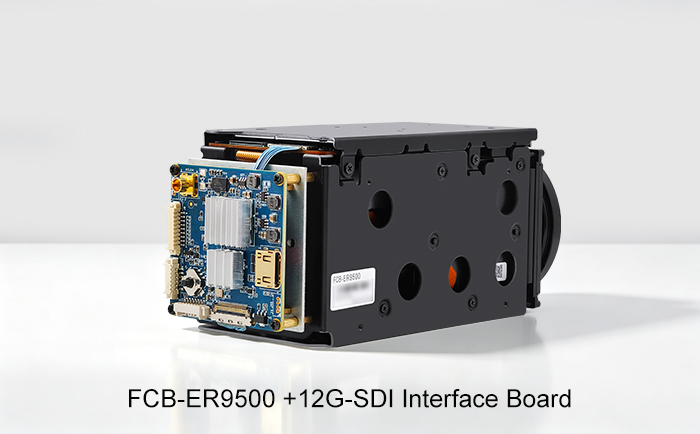

Tailored for small and medium professional teams engaged in event live streaming, surgical teaching, remote command, airborne gimbal deployment and product shooting, an all-in-one 4K UHD live streaming solution delivering broadcast-grade image quality and lossless long-distance transmission has been launched. Composed of the Sony FCB-ER9500 autofocus camera module and a dedicated 12G-SDI Interface Board, this solution creates a full-end-to-end pipeline from ultra-high-definition image capture to lossless broadcast-standard transmission, balancing outstanding imaging performance and practical deployment across diverse scenarios.
Ruiloog Electronic, an officially authorized distributor of Sony (China) [1], states that the FCB-ER9500 integrates Sony’s self-developed STARVIS™2 image sensor, enabling superior imaging under two extreme lighting conditions: intense bright light and ultra-low illumination. Equipped with native 25x optical zoom, it outputs smooth 4K@60fps broadcast-grade footage. The matching exclusive 12G-SDI Interface Board converts the camera’s HDMI signal into lossless broadcast-standard 12G-SDI signals, resolving core industry pain points including signal attenuation over long-distance transmission, synchronous multi-terminal monitoring, and compatibility with professional video switchers.
I. Powerful Synergy Between Dual Core Hardware with Zero Performance Bottlenecks Across the Entire Pipeline

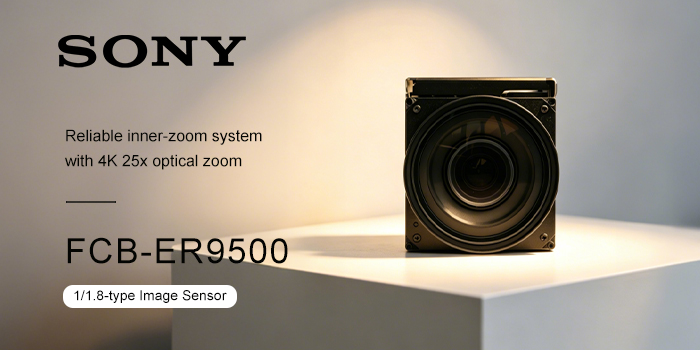

a. Sony FCB-ER9500: The Core Imaging Foundation for 4K60P Broadcast-Grade Footage
As Sony’s standardized integrated 4K/60fps autofocus camera block, the FCB-ER9500 underpins the image quality of the complete solution:
1. High-Sensitivity Hardware Architecture
The Sony FCB-ER9500 features a 1/1.8-inch STARVIS™2 CMOS sensor with an effective pixel count of 8.4 million. When the ICR infrared cut filter is activated, its minimum illumination reaches merely 0.00016 lx. Powered by wide dynamic range (WDR) technology [2], it fully retains highlight and shadow details under strong light, preserving rich color imagery day and night without detail loss.
2. Lossless Detail Capture
The FCB-ER9500 comes standard with 25x optical zoom and built-in StableZoom enhanced zoom technology. When operating in 1080P mode, it delivers an equivalent 50x lossless magnification. It can capture microscopic textures of products at close range as well as distant figures, text and markers from afar, meeting multi-shot framing requirements for live streaming.
3. Advanced Image Processing Algorithms
The camera integrates broadcast-grade image processing functions including regional intelligent autofocus, automatic exposure, adaptive white balance, dual Super/Super+ hyper-stabilization, 2D+3D hybrid noise reduction and point light suppression. Footage remains crisp and stable even under complex conditions such as gimbal vibration and backlighting.
4. Standard Control Protocol Support
The FCB-ER9500 complies with the VISCA industrial control protocol. Paired with the 12G-SDI Interface Board, users can remotely adjust all parameters including zoom, focus, white balance, fog penetration and image stabilization, and instantly recall preset positions for seamless integration with all professional video switchers and remote gimbal control systems.

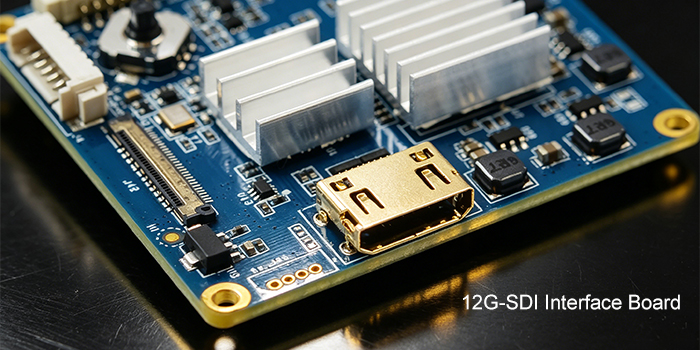

b. 12G-SDI Interface Board: Unlock the Full Bandwidth Potential of 4K60P
With 17 years of expertise in HD video secondary development, Ruiloog Electronic has custom-engineered this 12G-SDI Interface Board to perfectly match the interface, bandwidth and control protocol specifications of the FCB-ER9500, addressing four key pain points for small and medium live streaming teams:
1. Full 12Gbps Bandwidth Lossless Transmission Native to 4K60P Broadcast Standards
Compliant with SMPTE broadcast industry specifications, the massive 12Gbps bandwidth fully carries uncompressed 4K@60fps video signals, eliminating motion blur, color banding and pixel degradation in fast-moving footage.
2. Synchronous 12G-SDI + HDMI Dual Output for Simultaneous Multi-Terminal Monitoring
Dual synchronized signal outputs remove the need for external signal splitters. The 12G-SDI channel connects directly to professional recorders, 4K video switchers and large-screen teaching hosts, while the HDMI channel serves local real-time preview. Command centers, operating rooms and drone ground stations can display synchronized low-latency footage without frame offset.
3. Multi-Mode Control for All-In-One Camera Management
Designed with multi-protocol compatibility, the board supports Sony VISCA and automatically recognizes PELCO-D/P gimbal protocols. It offers multiple control interfaces including RS-485, RS-232, TTL-232 and physical onboard buttons for full remote adjustment of all image parameters. Built-in features such as preset position storage, auto cruise and power-off parameter memory eliminate repetitive post-restart calibration, drastically simplifying on-site workflows.
4. Full Backward Compatibility with Legacy Equipment to Slash Upgrade Costs
Fully compatible with mainstream 6G-SDI and 3G-SDI broadcast standards, the board allows teams to reuse existing monitors, recorders and switchers without full backend equipment replacement, enabling cost-effective upgrades to complete 4K live streaming systems.
Conclusion
The combined system of the Sony FCB-ER9500 camera module and dedicated 12G-SDI Interface Board delivers an integrated live streaming platform that unifies 4K60P UHD capture and lossless long-distance broadcast transmission. It fully unlocks the full image quality and frame rate performance of the camera block, balancing premium imaging, stable transmission, flexible operation and cost efficiency. It serves as the premium broadcast-grade 4K live streaming solution of choice for small and medium professional teams covering event live streaming, remote medical teaching, airborne aerial filming and industrial visualization applications.
FAQ
Q: What is the working principle behind the 50x lossless magnification of the Sony FCB-ER9500 in 1080P Full HD mode?
A: The capability stems from the FCB-ER9500’s native 4K high-resolution sensor and Sony’s proprietary StableZoom zoom algorithm. The camera block delivers complete UHD footage at its native 25x optical zoom under 4K (3840×2160) resolution.
When switching to 1080P (1920×1080) Full HD mode, the horizontal and vertical pixel dimensions are each halved, allowing lossless cropping and scaling of the original 4K frame to 1080P resolution. Leveraging the excess pixel headroom of the 4K sensor and optimized by Sony’s StableZoom super-resolution algorithm, an additional 2x lossless magnification is achieved without image blurring or detail loss.
Mathematically, 25x optical zoom multiplied by the 2x lossless pixel-based magnification yields a total continuous 50x lossless zoom in 1080P mode, greatly enhancing the capture of fine distant details.
