For unattended transformer substations, wildfire prevention outposts and industrial parks operating round the clock, a truly dependable surveillance system delivers crisp footage around the clock, whether under bright daylight, pitch-dark nights or dim low-light conditions.

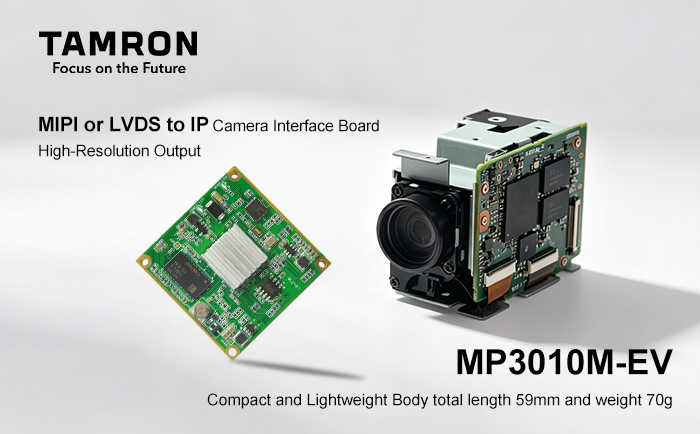

The Tamron MP3010M-EV integrated zoom camera module paired with its dedicated LVDS or MIPI to IP Network interface board forms a complete solution covering front-end optical imaging, signal conversion, network transmission and remote control. Tailored for 24/7 continuous monitoring, it effortlessly handles day-night transitions and harsh environmental conditions.
I. Imaging Core: Starlight-Grade Image Quality Consistent Day and Night

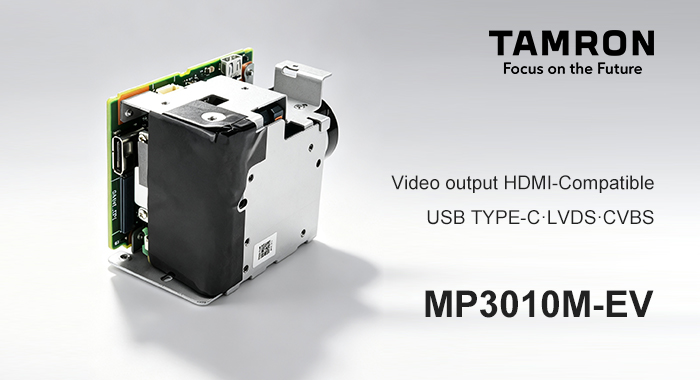

A lightweight 10x zoom camera block, the MP3010M-EV leverages Sony STARVIS back-illuminated sensor technology to lay the foundation for all-day surveillance, producing steady, sharp footage under blazing midday sun or faint nighttime light alike.
1. Starlight-Grade Sensor for Superior Low-Light Performance
Equipped with Sony’s 1/2.8-inch STARVIS CMOS sensor, the Tamron MP3010M-EV achieves a minimum illumination of 0.1 lx in color mode, dropping to merely 0.025 lx when switched to monochrome mode [1]. Even in dimly lit corridors, remote factory yards and unlit transformer substations, it clearly captures target outlines, license plates and human features.
The built-in auto ICR infrared filter delivers seamless color-to-black-and-white switching at dawn and dusk for uninterrupted continuous footage.
2. 10x Optical Zoom Balancing Wide Coverage and Long-Range Detail
The Tamron MP3010M-EV features a 10x optical zoom lens (f=3.3~33mm) with a large F1.8 aperture for abundant light intake. Its 59.2° wide-angle view easily covers expansive areas, while the 6.7° telephoto angle enables precise identification of distant details. Combined with 16x digital zoom, it clearly captures transmission towers, perimeter boundaries and river targets from afar, enabling both panoramic overwatch and close-up detail capture simultaneously.
3. Wide Dynamic Range & Noise Reduction for Stable Footage in Challenging Lighting
Integrated with WDR wide dynamic range, strong light suppression and digital fog penetration functions, the MP3010M-EV effectively mitigates tricky lighting scenarios such as backlit gateways, direct headlight glare and rainy, foggy weather. It balances bright and dark areas to eliminate overexposed highlights and crushed black shadows. Boasting a 50dB signal-to-noise ratio plus multi-stage 2D+3D hybrid noise reduction, it maintains clean, delicate footage during long-duration recording, preserving complete visual evidence for post-event review and forensic analysis.
4. Lightweight & Low Power Consumption for Long-Term Installation in Enclosed Devices
Weighing only approximately 70g with a length of 59mm, the compact module is easy to integrate into speed domes, pan-tilt units and airborne pods. Its static power consumption stands at roughly 2.5W, with a peak dynamic power draw no higher than 4.4W. It supports stable long-term operation even when powered by solar energy systems.
II. Transmission Hub: Network Encoding & Control Board
A high-performance camera module alone cannot fully support low-light surveillance. The LVDS or MIPI to IP Network interface board serves as the critical supporting component for stable signal conversion, efficient encoding, reliable storage and remote management. It encodes the 1080P@60fps video output from the MP3010M-EV into H.265/H.264 streams and outputs standard RTSP / ONVIF / GB/T28181 signals via RJ45 Ethernet, acting as the central nerve linking front-end cameras and back-end management systems.
| Core Capabilities | Practical Value |
|---|---|
| Multi-protocol Compatibility (ONVIF, GB/T28181) | Directly connects to security platforms, smart park systems and power operation platforms without extra protocol converters |
| Long-Distance Network Transmission | Breaks the transmission limits of short LVDS/MIPI cables; reliably streams video to NVRs or remote monitoring centers via RJ45 Ethernet |
| Network Serial Port Transparent Transmission | Remotely sends VISCA commands via the web UI to adjust camera zoom, focus, exposure and other parameters in real time |
| Dual Stream + Micro SD Card Storage | Supports simultaneous local high-definition recording and low-bitrate network streaming; Micro SD card provides edge storage backup to continue recording during network outages |
| Compact Form Factor | Dimensions of roughly 42.5×42.5×16mm with ultra-low power draw, easy to embed in speed domes, pan-tilts and miniature surveillance equipment |

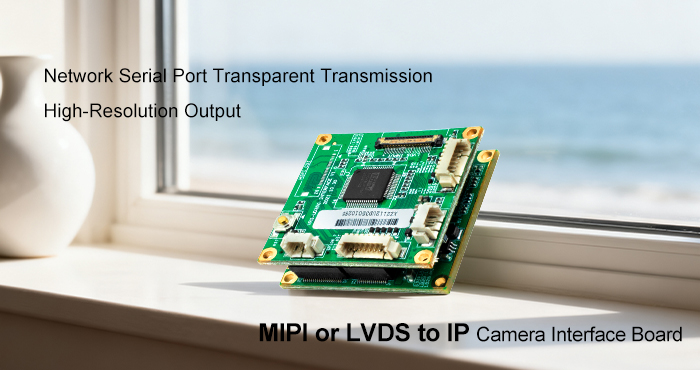

LVDS or MIPI to IP Network interface board
III. Typical Application Scenarios
1. Unattended Power, PV & Communication Base Station Monitoring
For critical infrastructure including transformer substations, outdoor utility poles, photovoltaic farms and telecom towers, the Tamron MP3010M-EV plus encoding board solution delivers 24/7 uninterrupted security patrols. It clearly identifies equipment conditions and intruders even in dim nighttime environments. Long-distance network transmission allows real-time remote monitoring from operation centers, with automatic alerts triggered by abnormal events, drastically cutting costs for manual night patrols.
2. Full-Site Security for Construction Sites, Industrial Parks & Factories
Deployed along factory perimeter walls, construction entrances and warehouse zones, the system offers round-the-clock monitoring. Human and vehicle information can be clearly identified day and night. Scheduled auto cruise and loop recording fully preserve video evidence to support accident investigations.
3. River Monitoring, Wildfire Prevention & Wildlife Conservation in Remote Areas
Suited for remote sites without mains power and scattered monitoring points, the solution pairs seamlessly with solar power supplies and 4G wireless transmission. Optical zoom enables long-distance wildfire observation and river water level tracking. Its reliable overnight operation under low-light conditions eliminates the need for on-site staff.
4. Mobile Forensics for Law Enforcement & Emergency Vehicles
Installed on patrol cars and emergency command vehicles, the system supports non-stop day-night recording. Built-in EIS electronic image stabilization counteracts camera shake from vehicle movement, delivering smooth, stable encoded footage to meet all-weather mobile evidence collection requirements.
Conclusion
The Tamron MP3010M-EV delivers consistent starlight-grade imaging day and night, while the LVDS or MIPI to IP Network interface board acts as the system backbone with stable signal conversion, encoding, storage and remote maintenance. Deep hardware and software synergy between the two components creates a true 24/7 all-weather surveillance solution, delivering continuous, reliable visual protection for critical infrastructure and key monitored zones.
FAQ
Q: Are there smaller zoom camera modules than the Tamron MP3010M-EV?
A: Imaging quality is positively correlated with the physical size of the sensor and lens. To guarantee high-definition footage, sensor and lens dimensions largely determine the overall module size. The Tamron MP3010M-EV strikes an excellent balance between image quality and compactness, making it the top compact option among modules with equivalent performance.
Q: Can the LVDS or MIPI to IP Network interface board accept both MIPI and LVDS camera inputs simultaneously?
A: No. The board is designed with a mutually exclusive input architecture supporting either MIPI or LVDS, and cannot connect to both signal sources at once. Select the model according to the interface type of your front-end camera module.
References
[1] Tamron MP3010M-EV
https://www.tamron.com.cn/cctvlens/products/MP3010M-EV.shtml
