Overview

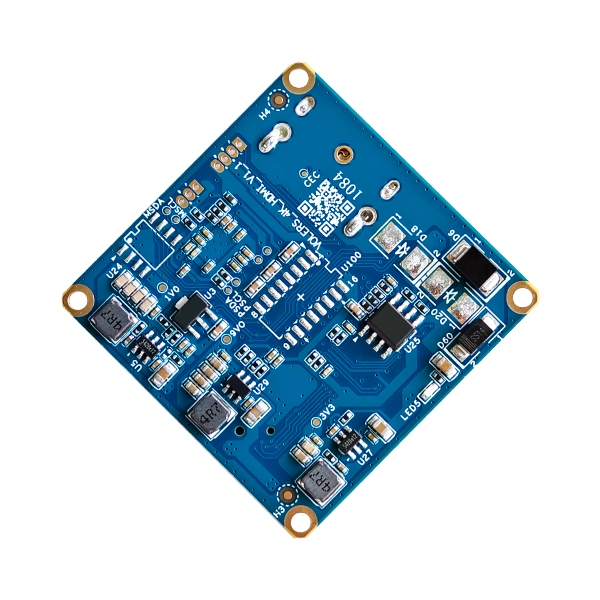

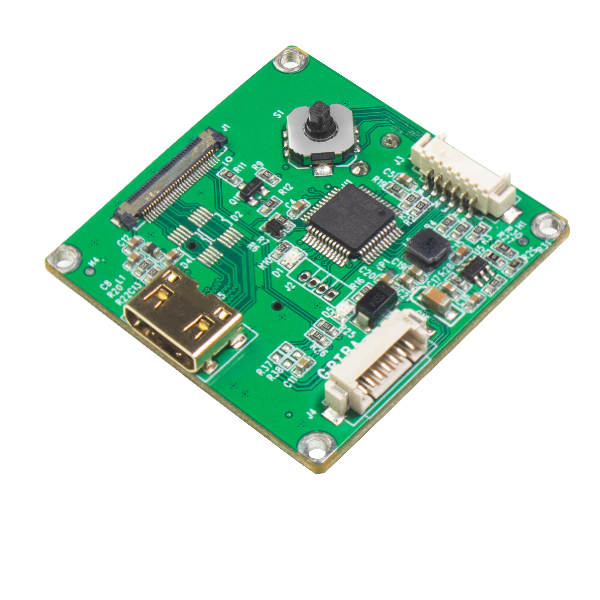

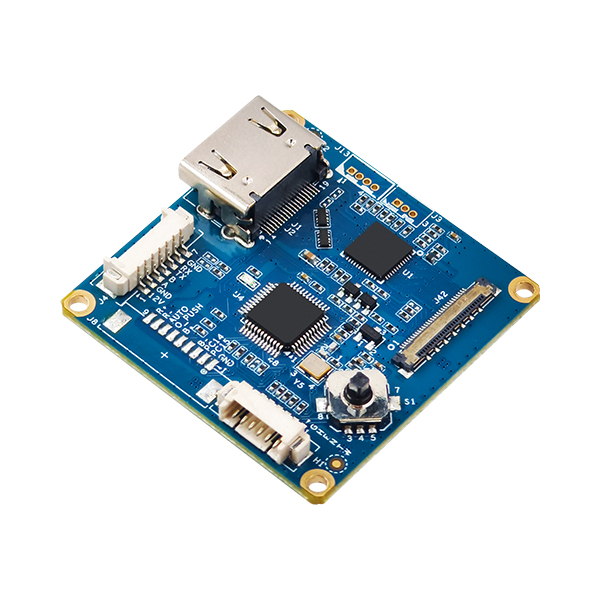

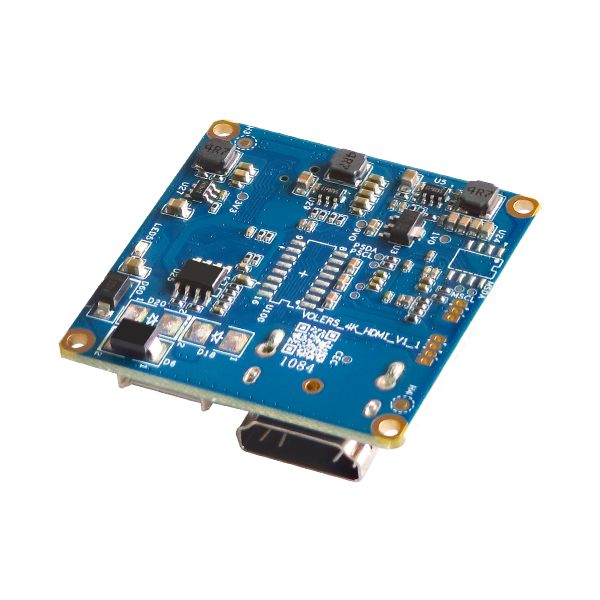

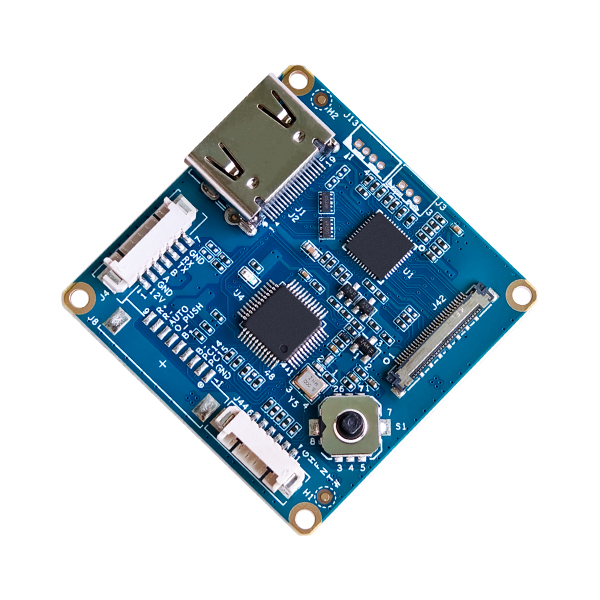

4KP60 HDMI interface board is a new generation of video processing solution independently developed by Xuanzhan Technology, specially designed for the SONY FCB-ER9500 4K/60fps zoom camera block and the FCB-EW9500H 4M zoom camera block. Supports high-definition video output at 4K resolution (3840x2160) at 60 frames per second (P60), ensuring clear and smooth images without trailing or blurring.Through the HDMI interface, the 4KP60 HDMI interface board can stably transmit high-definition video signals to display devices or recording systems, meeting the strict requirements for high frame rate and high-quality video transmission in scenarios such as broadcasting and television, medical imaging, and intelligent transportation.
Key feature
High frame rate support: Supports high-definition video output at 60 frames per second (P60) at 4K resolution, ensuring smooth and lag-free images.
Ultra-high-definition video transmission: Through the HDMI interface, stable and low-latency ultra-high-definition video transmission is achieved.
Plug-and-play design: No complex Settings are required. After the 4K P60 HDMI encoding control board is connected to the camera core module, it can automatically recognize and output high-definition video signals, simplifying the installation and debugging process.
Multi-functional control: Supports 485 control and English OSD menu. Users can easily adjust camera parameters such as focal length, exposure, and white balance through external buttons.
Preset position and automatic cruise: Equipped with unique power-off memory, preset position and automatic cruise functions (optional), it can automatically switch between different shooting angles, reduce manual intervention and improve operational efficiency.
Other functions: Supports RS232 and TTL232 functions (optional).
Support camera modules and video formats
|
Brand
|
Model No. |
video formats
|
| SONY |
FCB-ER9500 |
2160P60, 2160P50, 2160P30, 2160P25, 1080P60,1080P59.94, 1080P50,1080P30,1080P25,
720P60,720P50, 720P30, 720P25 |
| FCB-EW9500H |
| FCB-ER8530 |
2160P30, 2160P25
1080P60,1080P59.94,1080P50,1080P30,1080P25,
720P60,720P50,720P30, 720P25 |
| FCB-CR8530 |
| FCB-ER8550 |
| FCB-CR8550 |
| FCB-ES8230 |
| FCB-CS8230 |
| FCB-ER8300 |
| FCB-CR8300 |
Note: Other 4K brand cameras compatible with SONY VISCA protocol
Part No.
|
Part No.
|
Function
|
| PCB-UD010 |
With RS485 |
| PCB-UD011 |
With RS485 and RS232 |
| PCB-UD012 |
With RS485 and TTL232 |
Accessories
|
|
|
|
|
| LVDS cable（8cm）
|
6Pin
(15cm) |
7Pin
(15cm) |
:M2*5 |
(50*50mm) |
Sony FCB camera block
