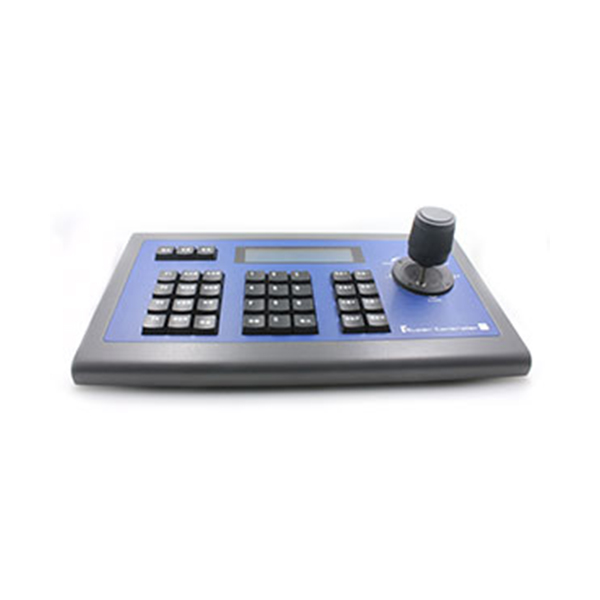

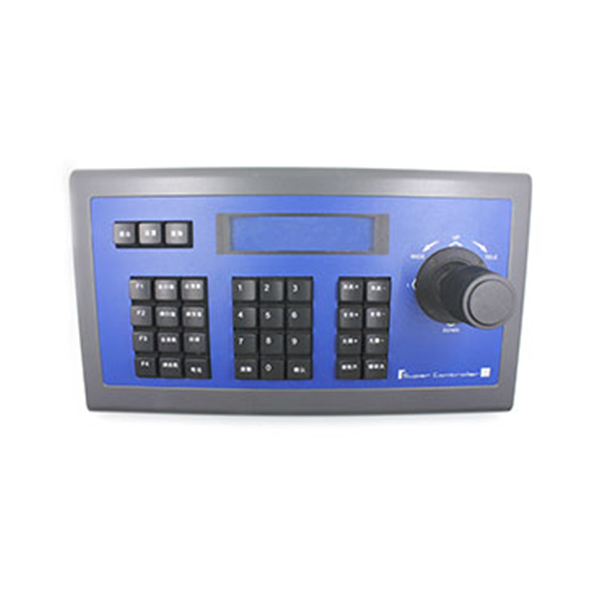

Intelligent control keyboard Product Overview:
Customized control keyboard for SONY video conferencing cameras, fully compatible with VISCA protocol
You can set the address code of the SONY video conference camera independently
Online refresh program function, according to the protocol provided by the customer, instructions, compile the corresponding upgrade program, the customer only need to connect the control keyboard through the RS485 interface on the computer, upgrade the firmware
Unique control code learning function, customers can modify the control code instructions
Multiple communication modes, RS485, RS422, RS232, 10M network (optional), USB(optional)
All parameters are set by keystroke operation program, convenient and fast
Stepless speed control fastball rotation, control rocker swing Angle to reflect the speed of the fastball in real time
Intelligent control keyboard Basic functions:
RS485 control bus can control up to 255 front-end device addresses, up to 128 devices in parallel at the same time, up to 7 series SONY video conference cameras
You can set and call the SONY video conference camera 1-46 preset bits
All input and output communication ports adopt lightning protection design, strong anti-interference ability, standard transmission distance of 1200 meters
A maximum of 15 sub-keyboards can be connected to the cascade port
Good communication compatibility, built-in a variety of protocols
Keyboard operation password switch lock function
Button prompt tone switch function
Fastball infinitely variable speed control
LCD display
Product Specs
| Parameter | |
| Communication protocols | Pelco-D、Pelco-P、VISCA |
| Baud rate(bps) | 1200、2400、4800、9600、19200 |
| Control address | can control a maximum of 255 fastballs, decoders, address codes from 0-254 |
| Communication mode | RS485 half-duplex, RS422 full-duplex, RS232 serial port |
| 10M network (optional), USB (optional) | |
| communication distance | RS485、RS422大约1200米，RS232大约10米 |
| Cascade number | 16 sub-control control keyboards can be cascaded, controller ID from 0 to 15 |
| Control joystick | three-dimensional (control: up, down, left, right, multiply) |
| Interface mode | 10 PIN press terminal, DB9 head |
| Display mode | LCD blue screen LCD display |
| Prompt Tone | Button sound prompts on/off |
| Working power | DC12V±10% |
| Power consumption | 6W MAX |
| Operating temperature | 0℃到50℃ |
| Storage temperature | -20℃到70℃ |
| Packing size(mm) | 360×190×55 |
| Weight(Kg) | 2.8 |
