Sony FCB camera block
Functional aspects : FCB-EV7300 and FCB-EV7500 have the same function, while FCB-EV7100 only lacks anti-shake function than the former two.
PS: More comparison and analysis of Sony's movement parameters, please pay attention to the official website of Xuan Zhan Technology! Didn't you want to know? Tell us anytime through the contact information on the website!

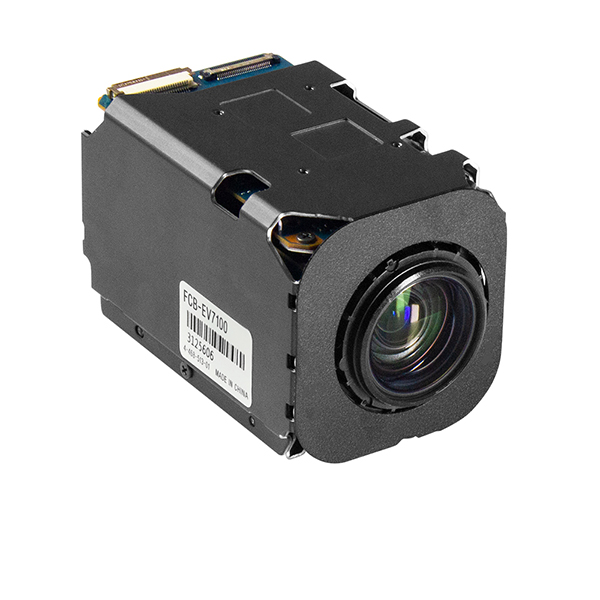

SONY FCB-EV7100 offers a wide range of products from 10x to 30x optical zoom, as well as HD or Full HD. All of these cameras inherit many of the world's best-known FCB features, including wide dynamics, automatic day and night conversion, and spherical privacy zone masking. These practical features are suitable for a wide range of applications and meet the needs of your users.
SONY FCB-EV7100 Key Feature:
Capturing the sharp, clear Full HD (1080/60p)
high-performance 1/2.8-inch ExmorTM CMOS imager for instant, full-HD (1920×1080) picture quality in low-light environments.The progressive scan mode reduces the blur of the picture and makes the picture smoother – it captures the details of the motion picture and is ideal for shooting.
Fast response, high transparency 10x optical zoom lens
This high quality lens has a very high transmittance, F1.6 maximum aperture, 10 times optical zoom range. At the same time, its fast focusing capability (from wide-angle to far-end) enables smooth, high-speed conversion of the surveillance range from wide-angle to near-in-the-go, making it ideal for security and surveillance applications.
StableZoomTM ( Stable Focus )
uses an image stabilizer, optical and digital zoom to improve picture quality while maintaining the original horizontal viewing angle to ensure that the picture size remains the same and reduces blurring.
The 2D/3D noise reduction feature
features advanced noise reduction technology that filters out unwanted noise in the picture, giving users a clear picture even in low-light environments. The noise reduction level can be selected from five levels to accommodate a variety of different operating environments.
The visual enhancement and fog-through function
picture quality can be dynamically enhanced. In a given dynamic range, the picture is continuously adjusted to adjust the scene pixel by pixel. In addition, they also have a fog-passing function that instantly captures sharper images in a smoky environment.

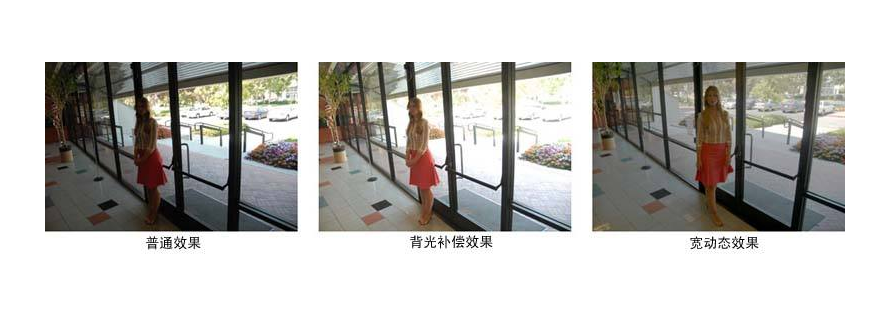

Wide dynamic range
Wide dynamic range picture processing technology allows users to see detailed images in high contrast or backlit environments.

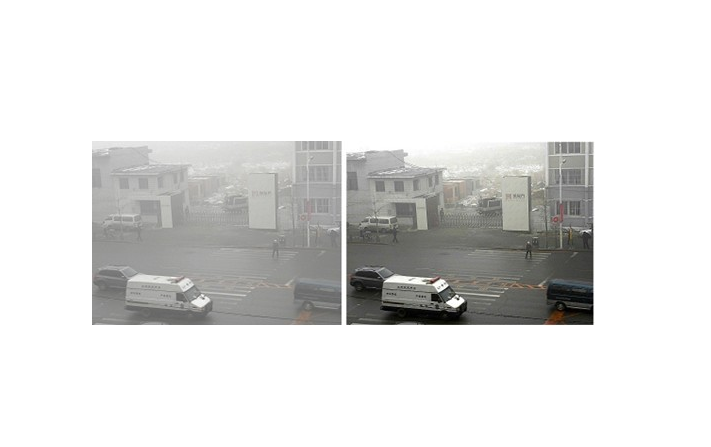

The fog-
through function allows for clear and natural viewing in haze or hazy scenes. When this feature is activated, the camera detects the haze level and automatically applies the desired effect. The level of these effects can be adjusted by the VISCA command according to user requirements.
HLC ( Highlight Compensation )
HLC (Highlight Compensation) technology helps to improve the visibility of the license plate when shooting bright headlights, for example, in low light conditions. The bright parts of the image are automatically masked and compensated for better visibility.
Automatic ICR ( Automatic IR Cut Filter Removal )
In low light conditions, the camera automatically switches from day mode to night mode, eliminating the infrared cutoff filter to increase sensitivity and sharp images in near darkness. The spherical privacy zone masking feature makes it possible to selectively mask the field of view for privacy. The shaded area automatically interlocks with the pan/tilt/zoom movement of the camera.
A wide range of versatile operations
ensure versatile operation through a wide range of functions and adjustments, including: white balance mode; picture effects ( E-Flip, Nega art, black and white, mirroring, color enhancement ); motion detection/alarm; picture freeze; temperature Reading; slow AE response; electronic shutter/slow shutter; and title display/camera mode display (English).
Providing clear monitoring images
day and night continuously, in the operation of day and night continuous monitoring, the lighting conditions are often changed, and these camera components also have optimized picture quality. In high sensitivity mode, the camera assembly can operate effectively at illumination levels as low as 0.35 lx (ICR on).
Automatic day/night conversion function Automatic infrared filter removal function. In low light environment, the camera unit automatically switches from day mode to night mode, removes the infrared filter, and improves sensitivity so that a clear picture can be taken at night. The spherical privacy zone masks the user to select an area in the monitoring screen for privacy masking. The shaded area is automatically locked as the camera pans/tilts/zooms.
SONY FCB-EV7100 Applications:
- Security & Surveillance
- Medical Treatment
- Broadcast
- ITS
Product Specs
| Product number | FCB-EV7100 |
|---|---|
| Sensor Type | 1/2.8-type CMOS |
| Auto ICR function | Yes (adjustable threshold) |
| ICR function | Yes |
| Freeze | Yes |
| Auto Slow Shutter | Yes |
| Slow Shutter Function | Yes |
| Wide Dynamic Range | Yes (Advanced 90dB 1080p60, 130dB 1080p30) |
| Signal System | 1080p/29.97, HD: 1080p/60, 1080p/59.94, 1080p/50, 1080i/60, 1080p/30, 720p/59.94, 1080i/50, 1080i/59.94, 1080p/25, SD (NTSC-PAL), 720p/25, 720p/29.97, 720p/30, 720p/50, 720p/60 |
| Picture Elements | About 2.38 million pixels |
| Horizontal Resolution | 1920*1080（FHD） |
| Lens | 10 x optical zoom |
| Lens - Detail | f=3.8mm (wide-angle end ) to 38mm (distal ) |
| Lens - f stops | F1.8 to F3.4 |
| BLC | Have |
| Digital Zoom | 12 times ( 120 times after using optical zoom ) |
| Angle of View H (WIDE) | 1080p mode 67.0° ( wide-angle end ) to 7.6° ( distal ) 720p mode 67.0° ( wide-angle end ) to 7.6° ( distal ) SD mode 50.3° ( wide-angle end ) to 5.7° ( distal ) |
| Min Working Distance (WIDE) | 10mm ( wide end ) to 800mm ( distal ) (default : 320mm) |
| Title display | 20 characters / line, up to 11 lines |
| Recomended Illumination | 100 lx to 100,000 lx |
| Minimum Illumination（50%） | High sensitivity mode Color : 0.35 lx (F1.8, automatic gain control on , 1/30 second ) Normal mode Color : 1.4 lx (F1.8, automatic gain control on , 1/30 second ) |
| Visual enhancement | Have |
| Progressive scan mode | Have |
| Image stabilizer | No |
| SN Ratio | 50 dB or more |
| Electronic Shutter Speed | 1/1 second to 1/10,000 second,22 steps |
| White Balance | Auto, ATW, Indoor, Outdoor, Outdoor Auto, One-push, Manual, Sodium Vapor Lamp Fix/Auto/outdoor |
| Gain | Auto / Manual (0 steps to 28 steps , +2 steps / total 15 steps) Maximum gain limit (6 steps to 28 steps , +2 steps / total 12 steps ) |
| AE Control | Full Auto, Shutter Priority, Iris Priority, Manual, Bright, Exposure Compensation, Slow AE, Back Light Compensation, Slow Shutter - Auto/Manual, Min shutter limit |
| EV Compensation | Have |
| Flicker Compensation | No |
| Noise Reduction | 6 steps (Adaptative 3DNR) |
| Spot AE | Yes |
| Focusing System | Auto (Sensitivity: normal-low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF, Near Limit, Focus Compensation with IR lighting |
| Picture Effects | Black & White, Neg. Art, E-Flip, Mirror, Color enhancement, Defog (Auto, 3 levels), Visibility enhancer, Black level, gamma, Sat/Hue Adjust, HLC |
| Character Generator | Yes (20 characters/line, max. 11 lines) |
| Grid/Cross Disaply | Yes |
| Privacy Zone Masking | Yes (with Spherical Pan/tilt) |
| Motion detection | Have |
| Interlock with pan, tilt and zoom | Yes (Spherical interlocking) |
| Alarm function | Yes (Motion detection with 4 zones) |
| Aperture Control | 16 steps |
| Image freeze | Have |
| Serial Interface | VISCA protocol (TTL/CMOS), 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, 115.2 Kbps Stop bit 1/2 bit |
| Camera component mode display | Have |
| Video Output | HD: Analog Component (Y/Pb/Pr), Digital (Y/Cb/Cr 4:2:2) Dual/single LVDS SD: VBS |
| Connector | 30 pin LVDS, 24-pin FFC |
| Storage Temperature/Humidity | -20 ° C to 60 ° C/20% to 95% |
| Operating temperature/ Humidity | -5 ° C to 60 ° C/20% to 80% |
| Power Consumption | Power consumption 3.4W (zoom/focus not on) 3.7W (zoom/Focus on) |
| Power Voltage | 6.0 V to 12.0 V DC |
| Weight | 210g |
| Dimensions (W × H × D) | 45.6×48.8×78.0 mm |
