SONY FCB-EV7520A NEW Full HD 30x Colour Camera Block Replace EV7500 7520

SONY FCB-EV7520A  NEW Full HD 30x Colour Camera Block Replace EV7500 7520

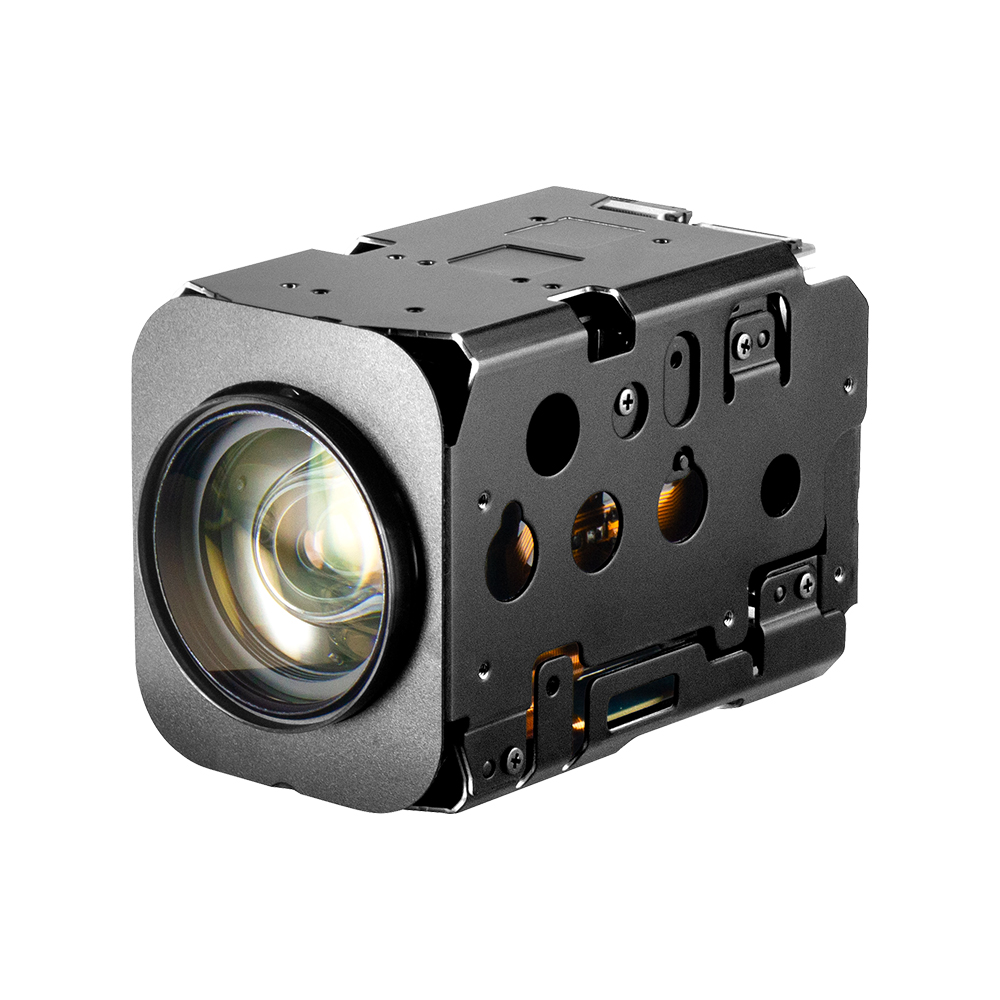

Sony FCB-EV7520A block camera with 30x ZoomSONY FCB-EV7520A NEW Full HD 30x Colour Camera Block Replace EV7500 7520

Low Light, Low Vision Camera

Full HD 1920 x 1080 with 30x Zoom

1/2.8″ CMOS image sensor (2.14 million effective pixels)

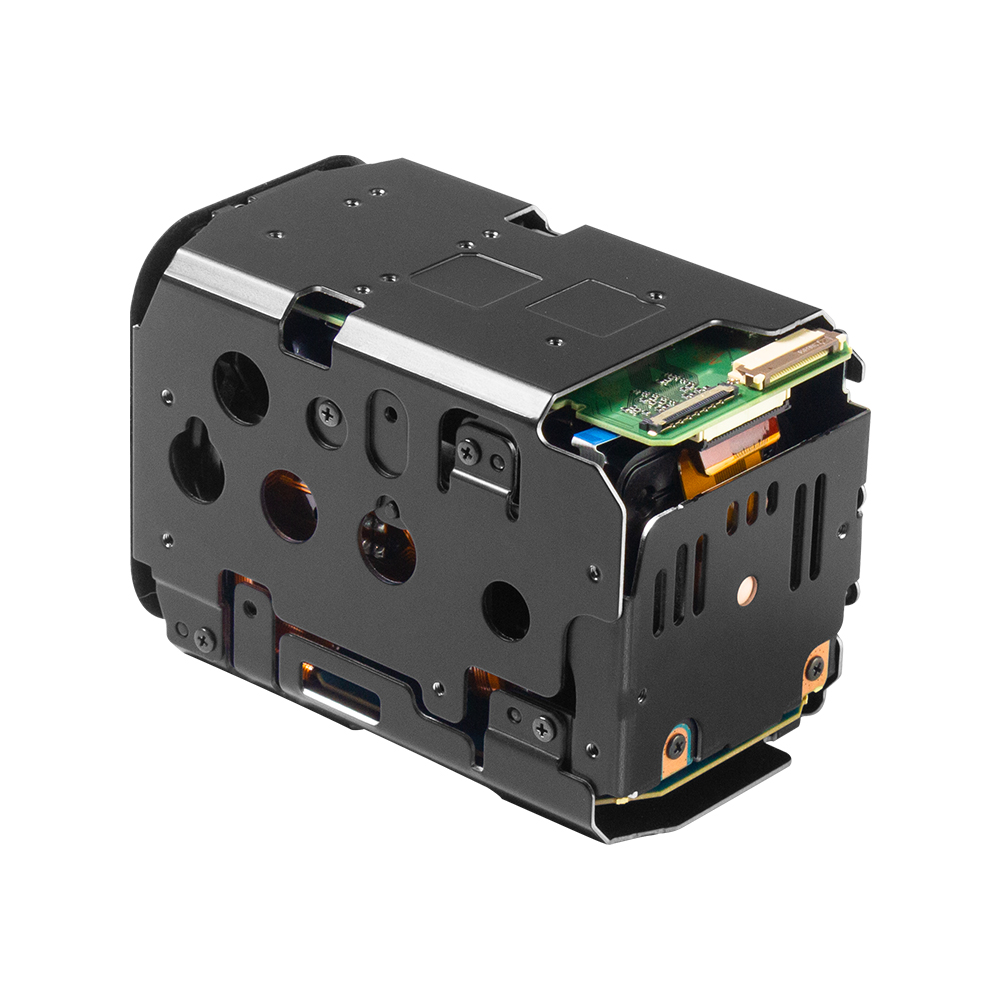

High sensitivity mode the camera can operate effectively in lighting levels as low as 0.35 lxFCB-CV7520A NEW Full HD 30x Colour Camera Block

Advanced Noise Reduction

VISCA communications protocol

Custom camera solutions and integration services for robotics, drones, unmanned vehicles and aircraft, surveillance, police vehicle cameras, ROV camera, intelligent traffic cameras, RVI industrial cameras, video conference cameras, and house of worship cameras.

Interfaces for HDMI, 3G-SDI, IP, PoE, GigE, USB 3.0

Camera Dimensions: 50.0 x 60.0 x 89.7 mm (2 x 2 3/8 x 3 5/8 inches).

Camera Specifications
Image Device 1/2.8-type CMOS
Effective Pixels Approx. 2.13 Megapixels
Digital Zoom 12x (360x with optical zoom)
Horizontal Viewing Angle 63.7°(wide end) to 2.3°(tele end)
Minimum Object Distance 10 mm (wide end) to 1200 mm (tele end) (Default: 300 mm)
Sync System Internal
Electronic Shutter 1/1 s to 1/10,000 s, 22 steps
White Balance Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual
Gain Auto/Manual 0 dB to 50.0dB (0 to 28 steps +2 step/ total 15 steps); Max. Gain Limit 10.7 dB to 50.0 dB (6 to 28 steps +2 step/total 12 steps)
Wide Dynamic Range No
Backlight Compensation Yes
Privacy Zone Masking Yes
Character Generator 20 characters/line, max. 11 lines
Focus System Auto (Sensitivity: normal, low), One-push AF, Manual, Interval AF, Zoom Trigger AF, Focus compensation in ICR on
Picture Effects E-Flip, Nega Art, Black & White, Mirror image, Color enhancement
Exposure Control Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow AE
Video Output Specifications Detail:
Lens Value 30x optical zoom; f=4.3mm (wide) to 129.0mm (tele); F1.6 to F4.7
S/N Ratio More than 50 dB
Minimum Illumination Color: 1.4 lx (F1.6, AGC on, 1/30 s); High Sensitivity Mode Color: 0.35 lx (F1.6, AGC on, 1/30 s)
Video Output Digital: Y/CB/CR 4:2:2 via LVDS (Signal format conforms to SMPTE 274/SMPTE 296.) SD VBS
Interfaces Specifications Detail:
Camera Control Interface VISCA (CMOS 5 V level; Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, 115.2 Kbps, Stop bit: 1 bit
General Specifications Detail:
Dimensions (W x H x D) 50.0 x 60.0 x 89.7 mm
Weight Approx. 260 g
Operating Temperature -5 ℃ to +60 ℃
Storage Temperature -20 ℃ to +60 ℃
Operating Humidity 20% to 80%
Storage Humidity 20% to 95%
Power Consumption 3.2 W (zoom/focus inactive); 4.0 W (zoom/focus active)
Power Requirements 6.0 V to 12.0 V DC
Quick Details
Place of Origin: Shenzhen, China
Brand Name: SONY
Model Number: FCB-EV7520A
Special Features: Sony Zoom Block Cameras
Sensor: CMOS, 1/2.8-type CMOS
Style:Dome Camera
Effective pixel:Approx. 2.13 Megapixels
Horizontal resolution: 1920 x 1080/60p video
Minimum Illumination: 0.001Lux
Screen menu: AWB , Digital noise reduction , Light suppression,Mirror
Special function:Anti-shake, wide dynamic,de-fog setting ,2D / 3D
Infrared sensors: Support IR cut filter
Optical zoom:360x (30 Optical *12 digital)
Menu: Chinese/English
Type: Digital Camera
