Sony FCB camera block
It is well known that SONY has been in a leading position in the field of HD camera technology development, especially the FCB series of products, among which the FCB-ER8300 is a 4K ultra HD camera component. Many people are not very clear about the concept of 4K. Simply put, it can display more pixel information and see more subtle details. It is 4 times the resolution of high-definition (HD), which is not possible with previous high-definition and even full HD cameras.

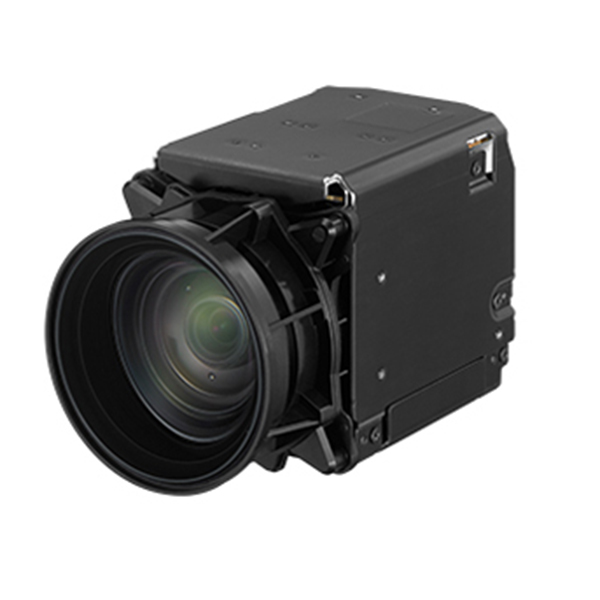

SONY FCB-ER8300
SONY FCB-ER8300 uses the latest 4K Exmor R CMOS sensor, and SONY’s original super resolution technology “Super resolution Zoom” provides clear resolution images with the same image quality as optical zoom. It is specifically designed for industrial, security, surveillance applications, providing true 4k resolution (3840 x 2160 pixels) at 30 frames per second (fps). Of course, this low power and small size camera is also suitable for the medical industry, equipment inspection and video conferencing, such as in the medical industry, For the implementation of some high-risk surgeries, it is necessary to use 4K automatic focusing cameras, which can show details to help doctors make better judgments and facilitate the perfect implementation of surgery. In security applications, the FCB-ER8300 can clearly capture the face of a victim or perpetrator while still seeing the entire scene. In addition, the adaptive noise reduction feature also helps to enhance detail and image quality, even for long shots, or in bad lightning conditions, you can always get the best image quality.
Sony FCB-ER8300 Detailed parameter protocol:
| Image Device | Progressive scan CMOS Image Sensor 1/2.3 type “Exmor R” | ||||||
| Effective Pixels | Approx. 8.93 Mega Pixels | ||||||
| Digital Zoom | 12x (144x with optical zoom) | ||||||
| Horizontal Viewing Angle | 73.4° (wide end) to 6.4° (tele end) | ||||||
| Minimum Object Distance | 10 mm (wide end) to 1,500 mm (tele end) (Default: 300 mm) | ||||||
| Sync System | Internal | ||||||
| Electronic Shutter | 1/1 s to 1/10,000 s, 22 steps | ||||||
| White Balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor/Auto) | ||||||
| Gain | Auto/Manual (0dB to 33dB) Max. Gain Limit (9dB to 33dB) | ||||||
| Wide Dynamic Range | No | ||||||
| Backlight Compensation | Yes | ||||||
| Privacy Zone Masking | Yes | ||||||
| Character Generator | 20 characters/line, max. 11 lines | ||||||
| Focus System | Auto (Sensitivity: normal, low), One-push AF, Manual, Interval AF, Zoom Trigger AF,Focus compensation in ICR on | ||||||
| Camera Operation / Zoom Switch | 12x (144x with optical zoom) | ||||||
| Picture Effects | E-Flip, Black & White, Mirror image, Color enhancement | ||||||
| Exposure Control | Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation | ||||||
| Lens Value | 12x optical zoom, f = 3.9 mm (wide) to 46.8 mm (tele), F1.8 to F2.0 | ||||||
| Minimum Illumination | Color: 0.75 lx (F1.8, AGC on, 1/30 s) High Sensitivity Mode – Color: 3 lx (F1.8, AGC on, 1/30 s) Normal Mode | ||||||
| Camera Control Interface | VISCA (CMOS 3.1 V level) Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, 57.6 Kbps, 115.2 Kbps, Stop bit: 1 bit | ||||||
| Dimensions (W x H x D) | 60mm x 64mm x 105mm | ||||||
| Weight | 385 grams | ||||||
| Operating Temperature | -5 to +60 (°C) / 20 (%) to 80 (%) Absolute Humidity: 36 (g/m3) | ||||||
| Storage Temperature | -20 to +60 (°C) / 20 (%) to 95 (%) Absolute Humidity: 36 (g/m3) | ||||||
| Operating Humidity | 20% to 80% Absolute humidity : 36[g/m3] | ||||||
| Storage Humidity | 20% to 95% Absolute humidity : 36[g/m3] | ||||||
| Power Consumption | 2.8W (Typ. DC IN 6 – 12V, steady state) | ||||||
| Power Requirements | 6.0V ~ 12.0V DC | ||||||
