Sony FCB camera block
Full HD Surgical Video Camera and 4K UHD Surgical Video Camera, all use SONY’s original integrated camera module, for different application scenarios, there are a variety of different classifications.
sort
Partition by definition
Can be divided into Full HD Surgical Video Camera and 4K ultra HD Surgical Video Camera
Divided according to the control mode
Can be divided into wired ordinary version of the field camera and wireless remote control version of the field camera
Divided by output interface
It can be divided into SDI (HD/3G) interface field camera, HDMI (4K) interface field camera and 6G-SDI+4K-HDMI interface field camera

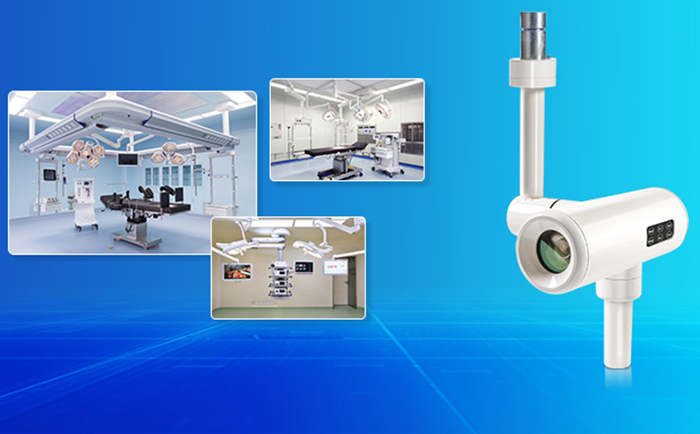

Today, we focus on introducing the ordinary version of the medical grade surgical field camera
Juye camera ordinary moderators are mainly wired control mode, can choose HD or 4K ultra HD solutions.
solution
1. Hd integrated camera module
Camera movement: SONY FCB-EV9520L or FCB-EV7520/FCB-CV7520
Control board: 3G-SDI mini coding control board
Video signal: HD-SDI and 3G-SDI full HD lossless video signal output
Image format: up to 1080P60
Output pixel: 1920×1080 (Full HD)
Lens multiplier: 30x optical zoom (medical grade)
2. 4K ultra HD integrated camera module
Camera movement: SONY FCB-ER8530/FCB-CR8530
Control board: 4K-HDMI coding control board
Video signal: HDMI ultra HD lossless video signal output
Image format: up to 2160P30
Output pixel: 3840×2160 (QFHD)
Lens multiplier: 20x optical zoom (medical grade)
Note: The camera movement can also choose the 4K60P camera module FCB-ER9500, which will be available in the summer of 2024.
Product advantage
Medical grade hardware: SONY’s new generation CMOS sensor, 30x optical zoom, 12x digital zoom.
True and delicate image quality: SONY’s original camera movement provides unique ultra-fine image performance, coupled with automatic fast and accurate focusing, real color restoration at high brightness, automatic strong light suppression, showing a true and delicate image quality.
Lossless output: Support HD-SDI and 3G-SDI full HD or HDMI ultra high-definition lossless video signal output, to ensure the stability and high definition of image transmission.
Integrated design: All cables are hidden in the pipe arm, beautiful, ergonomic, no dust, no dust, easy to clean, standard ONDAL and GREATSOLID spring arm docking bracket, easy to install.
The operation interface is simple: it is convenient to switch functions such as debugging, focusing and magnification.
Strong compatibility: universal RS485 control interface, support PELCO control protocol, with VOLERS HD video system to support external pickups and speakers, real-time audio intercom between operating room and demonstration classroom, and support real-time recording and video.
Application scenario
The ordinary version of the surgical camera has a wide range of application scenarios in the clinical medical field, mainly including the following aspects:
Operating room: The operating field camera can be used for real-time monitoring and video recording in the operating room, and the doctor can observe the operation process through the camera to improve the efficiency and safety of the operation.
Remote teaching: The surgical field camera can be remotely taught through a network connection, and doctors can conduct medical education and training in different locations.
Clinical skills training: Field cameras can record the clinical skills training process to help medical students and medical staff learn and improve their skills.
Oral medicine: Surgical field cameras can be used in the field of oral medicine to help doctors observe oral diseases and perform oral surgery.
Pet surgery recording: The surgical camera can record the video during the pet surgery to help the veterinarian perform the surgery.
Medical beauty: Surgical cameras can be used in the field of medical beauty to record the process of plastic surgery and help doctors evaluate the effect of surgery.
In SUMMARY:
This article from the classification, solutions, advantages, application scenarios and other aspects of the medical grade field camera ordinary version, users can choose high-definition or 4K ultra-high-definition solutions according to their own needs, at the same time, our company installed a set of field cameras, welcome all industries to visit the communication and experience.
In the future, I will introduce to you the remote control version of the medical grade surgical video camera, please pay attention.
