Sony Camera Information

FCB-EV9500M Full HD zoom camera block evaluation

In security monitoring, drone pods, smart medical, video conferencing and many industrial applications, high-definition, excellent, intelligent and stable cameras are always indispensable core equipment. With the continuous progress of technology, there are many excellent camera products on the market, among which SONY FCB-EV9500M has become the preferred choice of many users with its excellent performance and advanced technology. This paper will conduct an in-depth evaluation of SONY FCB-EV9500M to reveal its excellent performance in practical applications.

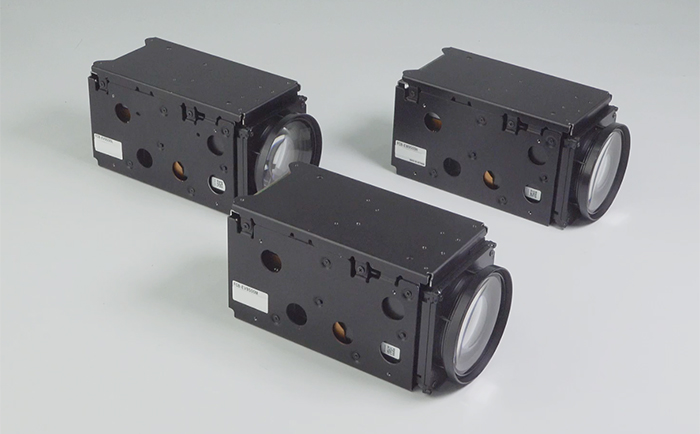

FCB-EW9500H,FCB-EV9500L and FCB-EV9500M



Appearance design
First, from the design point of view, the SONY FCB-EV9500M
Inherits SONY’s consistent exquisite technology, its fuselage design is sturdy and durable, although slightly large, it has its own calm and atmospheric style, which perfectly shows the unique professionalism and nobility of SONY products. This design style not only highlights the brand’s unremitting pursuit of quality, but also allows users to feel its extraordinary professional style at the first sight of contact.



Sensors and lenses
The SONY FCB-EV9500M uses a 1/1.8-inch STARVIS CMOS sensor with about 4.17 million effective pixels, a configuration that far exceeds the average in its class. Combined with a high-resolution lens, the FCB-EV9500M achieves extremely high definition, both in detail capture and color reproduction. In addition, the camera is equipped with a 30x enhanced optical zoom lens with a lens parameter of f=6.5mm (wide Angle) to 195.0mm (far end), F1.6 to F4.8, which enables the FCB-EV9500M to maintain high-quality image output in all focal segments from wide Angle to telephoto.



Intelligent function
SONY FCB-EV9500M not only has excellent hardware performance, but also integrates a number of intelligent functions. For example, it supports point focus, point exposure, point white balance (AF, AE, AWB) functions, allowing users to precisely set reference points for autofocus, auto-burst, and auto-white balance to specific areas within the frame, ensuring that the target area always maintains the best image results. In addition, the Wide dynamic (wide-D) function can effectively correct the brightness of dark areas, as well as the brightness of high-light areas, so that it can capture clear images in strong contrast environments.

FCB-EV9500M Spot Focus,Spot AE,Spot AWB

Low illumination performance
In low-light environments, the SONY FCB-EV9500M also performs well. Its starlight low illuminance allows the camera to capture clear, stable pictures at night or in low light environments. This is due to its powerful low light, large size STARVIS CMOS sensor and ICR ON COLOR, 2D/3D noise reduction and other key technologies, at 0.009Lx low light can still output color images, the lowest light up to 0.00008Lx.



Super image stabilization
SONY FCB-EV9500M also has a unique Super image stabilization function, using 2 million pixels to provide a wide correction area, which effectively improves the image jitter blur problem, plus there are two jitter modes: Super and Super+, even in strong vibration environment can maintain the stability of the picture. This feature is particularly important for applications such as drones, mobile surveillance, ships, Bridges, and vehicle-mounted vehicles to ensure that the picture captured is always clear and smooth.



Application scenario
With its powerful hardware composition and excellent performance, the SONY FCB-EV9500M has demonstrated a strong competitiveness in many fields such as security monitoring, drone pods, video conferencing, industrial inspection, and smart medical care.

In the field of security monitoring, the SONY FCB-EV9500M can provide high-quality monitoring images to help security personnel detect anomalies in a timely manner.

In the field of video conferencing and industrial inspection, the high-definition picture quality and intelligent functions of SONY FCB-EV9500M bring unprecedented visual experience and work efficiency to users.

In the field of drone pods, the SONY FCB-EV9500M super image stabilization and powerful zoom capability make it ideal for aerial photography. But its slightly larger body and weight is undoubtedly a challenge for smaller drones.

In order to solve this problem, the company launched the FCB-EV9500M weight reduction version, mainly by replacing the metal shell with a more lightweight aluminum alloy material. This change significantly reduces the overall weight of the device, from the original 439 grams to 310 grams, providing more mount flexibility and flight stability for smaller drones.



Sum up
To sum up, SONY FCB-EV9500M stands out in the HD camera module market with its excellent performance, advanced technology and wide range of application scenarios. Whether in terms of hardware configuration, intelligent functions or low illumination performance, SONY FCB-EV9500M has shown a strong competitiveness. For users who need high-quality images and stable video output, the FCB-EV9500M is undoubtedly a recommended choice.
