Sony Camera Information

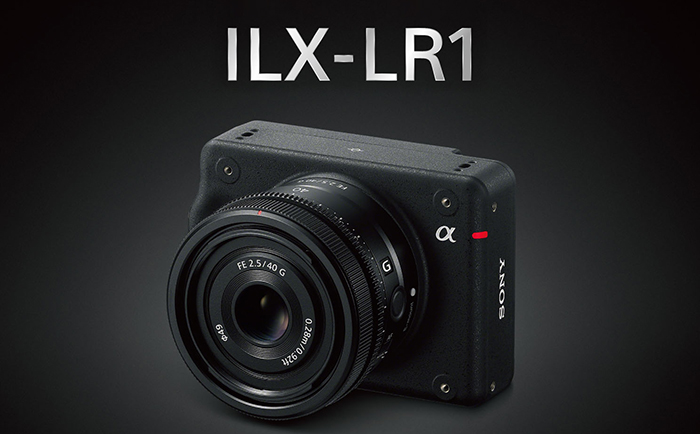

ILX-LR1 | SONY Full-frame expandable system remote control camera

High quality image quality
SONY ILX-LR1 uses a full-frame backlit image sensor with approximately 61 million effective pixels. Image quality with high quality, low noise and wide dynamic range enables detection of fine cracks and scratches during inspection, mapping, etc.

ILX-LR1

The new BIONZ XR™ image processor
The SONY ILX-LR1’s advanced BIONZXR” image processor delivers approximately eight times more performance than its predecessor. It reduces processing latency while enhancing video and still image processing for superior image quality and fast camera response.

Efficient shooting performance

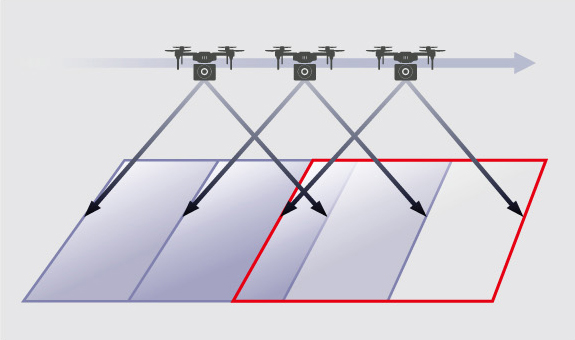

In single shot mode, the SONY ILX-LR1 can achieve continuous shooting of about 3 shots per second through the Trigger port. Improve shooting efficiency and reduce working time while ensuring accurate trigger control.

ILX-LR1 | SONY Full-frame expandable system remote control camera - Sony Camera Information - 2

Save time
Thanks to a full-frame sensor of around 61 megapixels, the SONY ILX-LR1 is able to take a single image from a high altitude, replacing multiple shots taken by a low-resolution camera.



A dedicated SDK that integrates with custom applications
The Sony Camera Remote SDK allows users to remotely control the menus and other functions of the ILX-LR1 through their own software applications. By integrating apis into the system, the SONY ILX-LR1 camera can be controlled remotely from the computer, allowing changes to camera Settings, shutter release, real-time view monitoring, and more. Using the Sony Camera Remote SDK, a user’s application can link a unique image ID to drone location data in post-processing.

Sony Camera Remote SDK

Get a live preview
Through the GetLiveViewlmage APl or LiveView Display Effect function, you can remotely obtain the real-time image of the SONY ILX-LR1 camera, and you can directly monitor it on the host display.



Remote parameter adjustment
Through the Remote Control mode of the Camera Remote SDK, it provides rich API interfaces and functions, and users can remotely obtain SONY ILX-LR1 camera parameters and adjust them in real time, such as aperture, shutter, ISO, etc.



File transfer and management
Through the Content Transfer mode of the Camera Remote SDK, the image file information in the memory card of the SONY ILX-LR1 camera can be remotely read on the host and transferred to the host.



Controllable focus position
With the Focus Position feature of the Camera Remote SDK, you can retrieve the current focus position and adjust the focus to any desired location for highly reproducible and stable shooting.



Remote electric zoom control
When using the SONY electric zoom lens, the Camera Remote SDK can remotely control the electric zoom and flexibly adjust the SONY ILX-LR1 picture composition range.

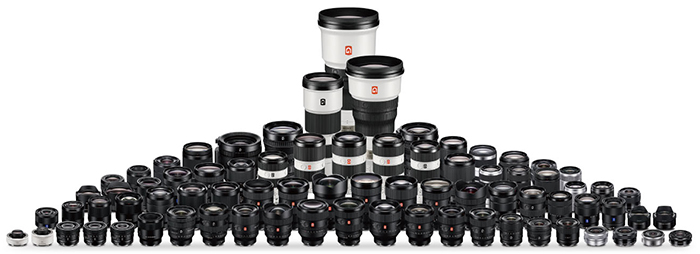

Wide selection of E-MOUNT lenses

SONY ILX-LR1 Wide selection of E-mount lenses

Electric zoom lens
The SONY ILX-LR1 enables electric zoom without the need for additional external equipment.

Lightweight lens
Lighter and smaller lens, combined with the body for more lightweight options,



Optimized for remote operability
SONY Camera Remote SDK(Software Development Kit)
By integrating APL into the system, the SONY ILX-LR1 camera can be controlled remotely from a PC, allowing changes to camera Settings, shutter release, real-time view monitoring, and more. When using a manual pair, the current pair position can be retrieved and the focus adjusted to any desired location, resulting in a highly reproducible and stable shot. The customer’s app can link the unique image ID to drone location data in post-processing.
