Although the MIPI to IP interface board (model: VRS-UD350) and FCB-EV9520L are not new products, they are used by a wide range of industry users, and with the advent of Windows 11, Danny Wong, senior engineer at Xiexin Technology, believes that it is time to introduce popular science: MIPI to IP interface board connected to FCB-EV9520L, how to show in WIN11 system.

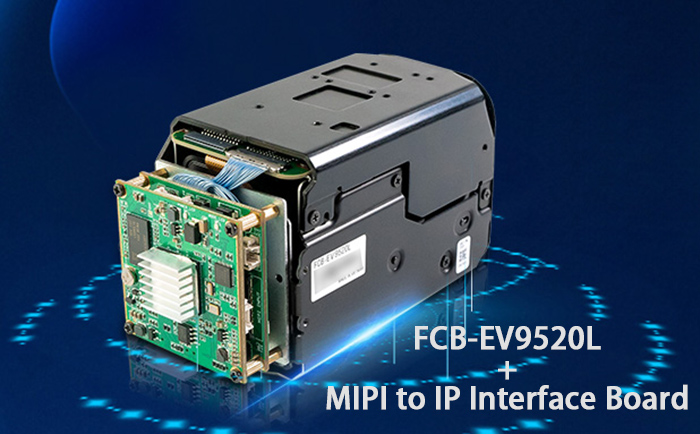

MIPI to IP interface board is connected to FCB-EV9520L
To connect the MIPI to IP interface board to SONY FCB-EV9520L and display it on Windows 11 system, there are the following precautions and steps:
1. hardware connection
1. Interface identification:
Make sure the SONY FCB-EV9520L HD all-in-one camera is connected to the correct LVDS interface on the MIPI to IP interface board, not the MIPI interface (this interface is only suitable for use with the SONY FCB-EV9500M). The interface type can be distinguished from the screen printing on the control board. The screen printing is LVDS Input.
Procedure for connecting the MIPI to IP interface board to the FCB-EV9520L
2. Wiring:
Connect the FCB-EV9520L camera to the MIPI to IP interface board using a 30-pin LVDS cable;
Connect the MIPI to IP interface board to the computer using a 6-PIN network cable;
Use the 2Pin power cord to connect the power supply;
Ensure that ports are connected correctly.
2. Software setup and configuration
1. IP Address configuration:
Ensure that the IP addresses of the MIPI to IP interface board and Windows 11 are in the same network segment; otherwise, the FCB-EV9520L camera cannot display images.
If they are on different network segments, use the search tool or Internet Explorer to log in to the Settings page of the MIPI to IP interface board and change the IP address of the MIPI network control panel to the same network segment as that of Windows 11.
2. Internet Explorer configuration:
Because MIPI to IP interface board only accepts Internet Explorer browser, and in Windows 11 system is the default Edge browser, how to solve it?
Step 1: Open the Edge browser and click “… “in the upper right corner of the browser. Open the “Settings” panel, click the “Default browser” in the left navigation bar, and then change the value of “Allow reloading websites in Internet Explorer mode (IE mode)” to “Allow” in the right content, you can use the “IE mode” of the Edge browser.
Step 2: In the “Internet Explorer Mode page”, add the IP address of the MIPI to IP interface board (http://192.168.0.123), so as to avoid errors later, restart the Edge browser, it will take effect.
3. Login control interface:
In the Edge browser of Windows 11, enter the IP address of the MIPI to IP interface board to go to the control page.
Enter the user name and password for login. The default user name and password are admin and abcd1234. (If you forget the password, you can press and hold the Factory Reset button on the control panel to reset the password and set a new password.)
4. Plug-in installation
After entering the control interface, the image of FCB-EV9520L camera still cannot be displayed normally. At the top of the control interface, it will prompt “RTSPPlay plug-in has not been installed, click to download”. Click this prompt to download the plug-in.
After the plug-in is downloaded to the computer, close the Edge browser, and then “run as administrator” install the plug-in. After the installation, open the Edge browser again. If “This page wants to run the following add-ons…” pops up at the bottom of the browser. And other content must be “allowed” to load.
After logging in to the control interface, SONY FCB-EV9520L can display images normally and control the camera.
If the MIPI to IP interface board is connected to FCB-EV9520L, and the WIN11 system shows that this topic is still not understood, you can contact Danny Wong, a senior engineer at Xianyang Technology, who can solve various technical problems for domestic and foreign customers through personal visits or remote videos.
For SONY integrated camera module secondary development, we have 15 years of practical experience, can customize the development of video product solutions according to the different needs of enterprises, and provide pre-sale, sale and after-sales technical support.
