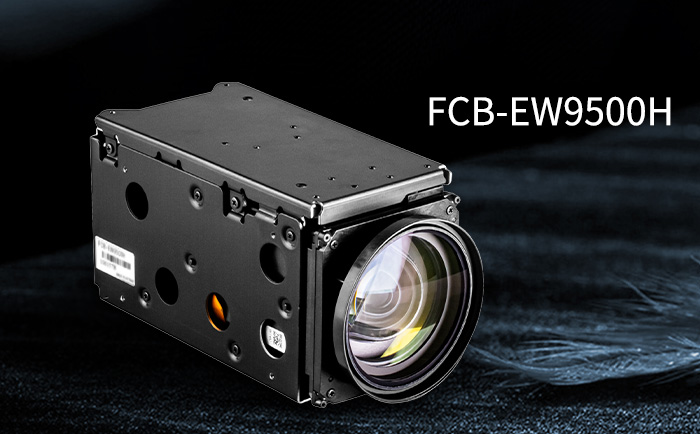

Where can I download the SONY FCB-EW9500H Official Technical Manual?

In order to meet the needs of users for in-depth understanding of the technical details of SONY FCB-EW9500H HD integrated camera, as an official authorized distributor of SONY (China), we hereby provide the official technical agreement manual download service. The manual of this agreement describes in detail the technical characteristics, performance indicators, precautions for use, maintenance, control position, instruction list, specifications and copyright description of SONY FCB-EW9500H, in order to help users better grasp and use this camera product.



Through this manual, you will learn how the FCB-EW9500H supports high-resolution video output to provide clear and delicate images. How to use high-performance image sensor and advanced image processing technology to effectively reduce image noise, enhance image details, and provide more accurate and true color reproduction; And how to provide clear images in low light environments by increasing sensitivity and using infrared light sources.



In addition, this manual also details the FCB-EW9500H autofocus function, including its advanced image processing algorithm and autofocus technology, as well as the unique area autofocus, area automatic exposure and area automatic white balance functions, which will greatly improve the accuracy and reliability of the monitoring system.



1. Image sensor

The SONY FCB-EW9500H uses a 1/1.8 “STARVIS™ CMOS image sensor with approximately 4.17 million effective pixels and supports 4 million pixel high-definition images.



2. Zoom

The SONY FCB-EW9500H zoom feature includes 2 features, enhanced optical zoom and digital zoom.

(1) Enhanced optical zoom

The SONY FCB-EW9500H’s optical zoom, which magnifies an image by moving it around while changing the effective pixel area of the zoom lens, can zoom up to 30 times.

(2) Digital zoom

The SONY FCB-EW9500H performs digital scaling by cropping the image, capturing the center portion of the image with CMOS scaling, and the resolution will decrease as the zoom diameter increases. Digital zoom can zoom up to 12 times.

When using StableZoom, the unit can be enlarged up to 432 times.



3. ISP

The SONY FCB-EW9500H utilizes an image signal processor (ISP) to achieve 4M/60fps and 1080P/60fps image output and features such as super image stabilization, wide motion, fog penetration, visibility enhancement and noise reduction (2D+3D).



4. Video output

SONY FCB-EW9500H video output port: HDMI

Can output 3 kinds of video, 4M output /1080P full HD output/HD output



video format
1512p/60 1512p/59.94 1512p/30 1512p/29.97 1440p/30 1080p/60 1080p/59.94 1080p/30 1080p/29.97 1080i/60 1080i/59.94 720p/60 720p/59.94 720p/30 720p/29.97 480p (Test Mode)	1512p/50 1512p/25 1440p/25 1080p/50 1080p/25 1080i/50 720p/50 720p/25 576p (测试模式)
1/60 sec	1/50 sec



5、VISCA Command/Acknowledge Protocol

Command	Command Message	Reply Message	Comments
General Command	81 01 04 38 02 FF (Example)	90 41 FF (Acknowledge) +90 51 FF (Completion) 90 42 FF 90 52 FF	Returns Acknowledge when a command has been accepted, and Completion when a command has been executed.
	81 01 04 38 FF (Example)	90 60 02 FF (Syntax Error)	Accepted a command which is not supported or a command lacking parameters.
	81 01 04 38 02 FF (Example)	90 60 03 FF (Command Buffer Full)	There are two commands currently being executed, and the command could not be accepted.
Inquiry Command	81 09 04 38 FF (Example)	90 50 02 FF (Completion)	Acknowledge is not returned for the inquiry command.
	81 09 05 38 FF (Example)	90 60 02 FF (Syntax Error)	Accepted an incompatible command.
Address Set	88 30 01 FF	88 30 02 FF	Returned the device address to +1.
IF_Clear(Broadcast)	88 01 00 01 FF	88 01 00 01 FF	Returned the same command.
IF_Clear (For x)	8x 01 00 01 FF	z0 50 FF (Completion)	Acknowledge is not returned for this command.
Command Cancel	8x 2y FF	z0 6y 04 FF (Command Canceled)	Returned when the command of the socket specified is canceled. Completion for the command canceled is not returned.
		z0 6y 05 FF (No Socket)	Returned when the command of the specified socket has already been completed or when the socket number specified is wrong.



As an official authorized distributor of SONY (China), we have the right and obligation to ensure that the SONY FCB series cameras sold are SONY original and authentic products, and provide pre-sales and after-sales technical support as well as official technical agreements, specifications, parameter manuals, etc. PDF file download.



At the same time, as the FCB camera secondary development solution provider, Xuancheng Technology has been in the field of video products for 16 years, accumulated rich industry experience, can provide users with customized video product solutions, including hardware and software development and integration, such as video capture, image processing, video conversion, video transmission, related control.



Note: SONY owns the copyright of the agreement manual for SONY products.
