With the rapid development of science and technology and the growing need for security, security monitoring systems have become an indispensable part of our daily lives. The 4-channel disk Video Recorder (DVR), as one of the core equipment in the field of security monitoring, has won widespread attention and application with its powerful functions, flexible configuration and efficient data processing capabilities.

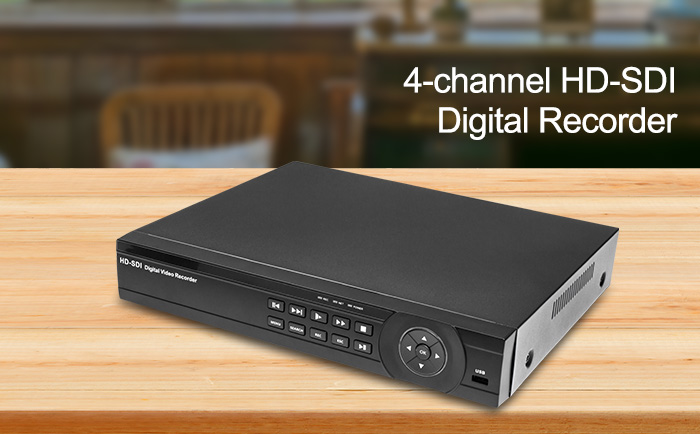

4 channel hard disk video recorder
The purpose of this article is to comprehensively introduce the concept, working principle and diversified uses of 4-channel hard disk video recorder, to help readers understand this important device in order to better use its role in the monitoring needs of homes, enterprises, public places and traffic engineering.
First, basic concepts
4-channel hard disk video recorder (Digital Video Recorder, referred to as DVR), is a collection of video recorder, picture splitter, pinion lens control, alarm control, network transmission and other functions in one camera control system equipment. The “4-channel” in its name refers to the fact that the device can simultaneously receive and record video signals from four different cameras. This device has a wide range of applications in the field of security monitoring and is an important tool to protect the safety of homes, businesses and public places.
Second, the working principle

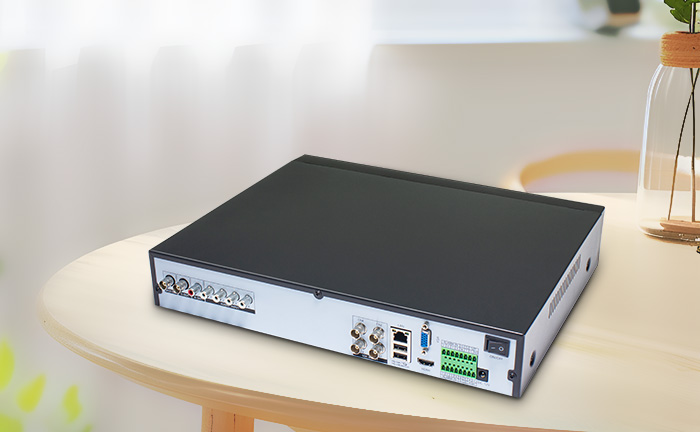

Security monitoring DVR
The working principle of 4-channel DVR is mainly based on digital recording technology. When the camera captures video signals, these signals are transmitted to the DVR. DVR will digitize these signals, including compression, encoding and storage. Through the built-in hard disk or other storage devices, the DVR can save the recorded video data for a long time. At the same time, DVR also has real-time preview, video playback, alarm triggering and remote control and other functions, users can manage and operate through the operation interface or remote client.
Specifically, the DVR workflow is as follows:
Video signal acquisition: After the camera captures the video signal, it is transmitted to the video input interface of the DVR through the video cable.
Signal digital processing: The DVR performs digital processing of the received video signal, including compression and coding.
Storage: The digitized video signal is stored on the DVR’s internal hard drive or other storage device.
Preview and playback: Users can preview the monitoring screen in real time through the DVR operating interface or remote client, and play back the recorded video data at any time.
Alarm and remote control: DVR has alarm triggering and remote control functions, when the monitoring area is abnormal, it will automatically trigger the alarm and notify the user; At the same time, users can manage and operate the DVR through the remote client.
The 4-channel DVR supports HD VGA and HDMI output simultaneously, 4-channel full real-time coding, standard H.264 compression format, supports 4-channel audio and video synchronous recording and playback, supports manual recording, timing recording, motion detection video and alarm video and other video modes, graphical interface, easy to operate, It supports two SATA disk ports (each disk supports a maximum of 3TB), making it the preferred device in the security monitoring field. It is suitable for various scenarios that require high-quality surveillance videos.
3. Main uses
The main uses of 4-channel hard disk video recorder
The main uses of 4-channel hard disk video recorder include the following aspects:
Home security monitoring: In the home environment, the 4-channel hard disk video recorder can be connected to multiple cameras for all-round monitoring inside and outside the home. This helps in the timely detection and handling of abnormal situations, such as theft, fire, etc.
Enterprise security monitoring: In the enterprise environment, the 4-channel hard disk video recorder can monitor the entrance and exit of the enterprise, warehouses, production lines and other important areas. With the real-time preview and video playback functions, enterprises can discover and handle security problems in a timely manner, improving management efficiency.
Public place monitoring: In public places such as shopping malls, supermarkets, schools, hospitals, etc., 4-channel hard disk video recorder can monitor crowded areas to prevent theft, fighting and other incidents. At the same time, in the event of an emergency, video data can also be used as evidence to assist the relevant departments in handling the case.
Traffic engineering monitoring: In the field of traffic engineering, 4-channel hard disk video recorder can be used to monitor the traffic flow of highways, urban roads and other traffic arteries. Through real-time preview and video playback functions, traffic management departments can find and deal with traffic accidents, traffic congestion and other problems in a timely manner.
In summary, as an advanced camera control system equipment, 4-channel hard disk video recorder has the advantages of powerful function, simple operation, safety and reliability. In the field of security monitoring has a wide range of application prospects and market demand.
