Sony FCB camera block
The three main highlights of the SONY FCB-ER9500 are: 4K/60FPS, 1/1.8 “4K STARVIS2 CMOS large target surface sensor and 25x optical zoom lens. Thanks to these innovative technologies, it can output high quality 4K ultra HD images for a variety of applications. How does it achieve this?

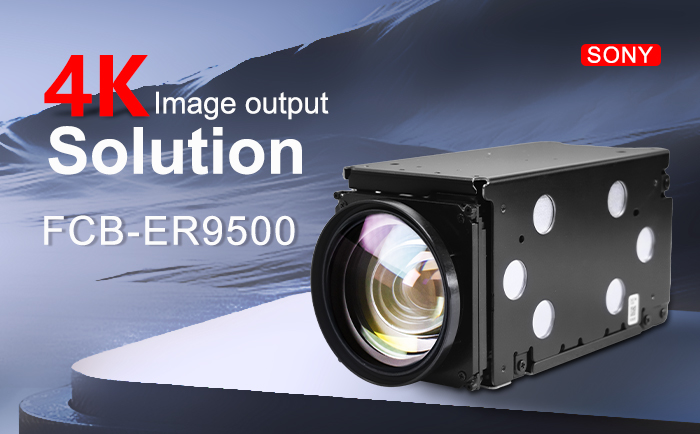

FCB-ER9500
First, advanced hardware composition

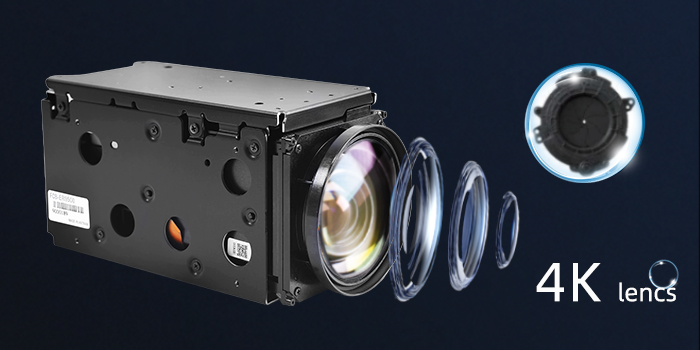

1. 4K resolution lens
The SONY FCB-ER9500 is paired with a 4K resolution lens to ensure ultra HD quality from the source.
The 4K resolution, which is 3840×2160 pixels, is four times the resolution of HD, providing higher pixel density and richer color layers. This high resolution allows every detail in the image to be accurately represented, from tiny textures to complex color transitions.
The 4K resolution lens paired with the SONY FCB-ER9500 further improves the clarity of the image. The 4K resolution lens ensures that light is accurately focused and evenly distributed as it passes through the lens, thus avoiding image distortion and blurring.
In addition, the SONY FCB-ER9500 also uses advanced image processing technology and algorithms to further optimize and process the captured images. These technologies include noise reduction, color correction, contrast enhancement, etc., which can further improve the clarity and color reproduction of the image, making the final picture more realistic and vivid.
2. 1/1.8 “large target surface sensor
The SONY FCB-ER9500 uses a 1/1.8 “large target STARVIS2 CMOS sensor with an effective pixel of about 8.4 million, which offers excellent high sensitivity, low light performance and high dynamic range performance.
And the 1/1.8 “large target surface helps increase the physical area of a single pixel with the same number of pixels, thereby improving light reception, achieving higher sensitivity, and capturing more detail in high-contrast scenes (especially bright and dark environments) as well as in low-light environments. Color images can still be output even at low illuminance of 0.009Lx, and the lowest illuminance can reach 0.00008Lx, ensuring high-quality image output in complex environments.
SONY FCB-ER9500DE 4K lens with 7 blade aperuses
3. 7 blade apertures
The SONY FCB-ER9500 greatly improves image quality due to its 7-blade aperture design, which makes the glare/halo generated in the application scene appear more circular.
Second, excellent software optimization
1. New three regional functions
The SONY FCB-ER9500 features area autofocus, area auto-exposure and area auto-white balance.
These functions can set independent specific areas within the picture, so that the adjustment level of the captured image changes only according to the specific area, and will not be affected by changes outside the area.
By controlling the key parameters of the image, the intelligence and quality of the image are greatly improved.
SONY FCB-ER9500 Super image stabilization with day and night switching
2. Super image stabilization
The SONY FCB-ER9500 features advanced super image stabilization technology such as a built-in gyroscope sensor, electronic stabilizer and jitter compensation space.
The 8 megapixels of the SONY FCB-ER9500 provide a wider correction area, which can more effectively reduce image jitter blur in the context of intense shaking and twisting.
Provides “Super” and “Super+” two anti-shake mode, can adapt to different shooting scenes and needs.
It can realize super image stabilization function in multiple dimensions such as horizontal, vertical and center rotation.
3. Other optimization functions
The SONY FCB-ER9500 also has night-sensing infrared mode, fog penetration, noise reduction, automatic day and night switching, point light source avoidance and other functions.
These functions ensure the improvement of image quality and the stability of the picture through different ways and methods.
Third, special interface board
1, 12G-SDI interface board
In order to cooperate with the 4K60 frame image format output of SONY FCB-ER9500, we specially developed the 12G-SDI interface board, which can support the FCB-ER9500 video signal of 60 frames per second at 4K resolution and output 12G-SDI ultra-high-definition lossless video signal. Achieve high definition and smooth video capture, conversion and transmission.
SONY FCB-ER9500 with 12G-SDI interface board, can achieve up to 12Gbps transmission speed, to ensure real-time video signal transmission.
In addition to 12G-SDI UHD video signals, the 12G-SDI interface board also helps the FCB-ER9500 be backward compatible with 6G-SDI and 3G-SDI signals, effectively reducing costs and saving costs.
2, 4K-IP network control board
4K-IP interface board, coming soon.
4K-IP interface board, connected to SONY FCB-ER9500 via LVDS interface, can output 4K60 frames of ultra HD video format through HDMI and network port at the same time. More detailed parameters are subject to the final release.
To sum up, the SONY FCB-ER9500 has advanced hardware composition and excellent software optimization, combined with the 12G-SDI interface board, not only achieves high-quality 4K ultra HD image output, demonstrating the leading position of SONY FCB-ER9500. It also provides users with more high-quality, efficient and flexible video solutions.
