Sony FCB camera block
FCB-ER9500, as SONY’s carefully built 4K/60fps ultra HD 25x zoom camera module, not only integrates cutting-edge optical and electronic technology, but also achieves unprecedented breakthroughs in picture quality, zoom performance and intelligent applications.
With its excellent image stabilization technology and automatic adjustment function, the FCB-ER9500 provides a strong guarantee for stable imaging in various complex shooting environments. Whether it is the intense shaking of the drone aerial photography, or the light changing medical imaging diagnosis, the FCB-ER9500 can meet the diverse needs of users with excellent performance.
First, powerful functions
Super image stabilization: The SONY FCB-ER9500 incorporates advanced image stabilization technology such as a gyroscope sensor, electronic stabilizer and jitter compensation space. These technologies ensure stable, clear video images, even in situations of intense shaking or twisting. And the FCB-ER9500 provides “Super” and “Super+” two anti-shake modes to adapt to different shooting scenes and needs.
New three-zone features: The SONY FCB-ER9500 introduces new three-zone features, including zone autofocus, zone auto exposure, and zone auto white balance. These features allow users to customize different image areas for fine control. By controlling the key parameters of the image, the intelligence and image quality of the camera are greatly improved.
Wide dynamic and low light performance: The SONY FCB-ER9500 features wide dynamic and low light performance in a high dynamic range to capture more detail in high-contrast scenes and low-light environments. Even at a low illuminance of 0.01Lx, color images can still be output, with a minimum illuminance of 0.00008Lx.
Second, excellent performance
Image sensor: The SONY FCB-ER9500 is equipped with a 1/1.8-inch STARVIS2 CMOS sensor with an effective pixel count of about 8.4 million. The sensor features high pixel density and low noise, providing excellent image quality and detail performance.
Resolution and frame rate: The SONY FCB-ER9500 module supports 4K ultra HD resolution (3840×2160 pixels) and has a recording capability of 60 frames per second. This means that in fast motion or highly dynamic scenes, it can also present smooth and natural video pictures, which can be applied to more application scenarios.
Optical Zoom: The module is equipped with a 25x optical zoom lens, which is SONY’s first application on a 4K ultra HD camera module. The lens achieves a smooth transition from wide Angle to telephoto, covering a wider shooting range, whether it is vast natural scenery or remote detail capture, it can be easily handled.
Three, a variety of interface board selection

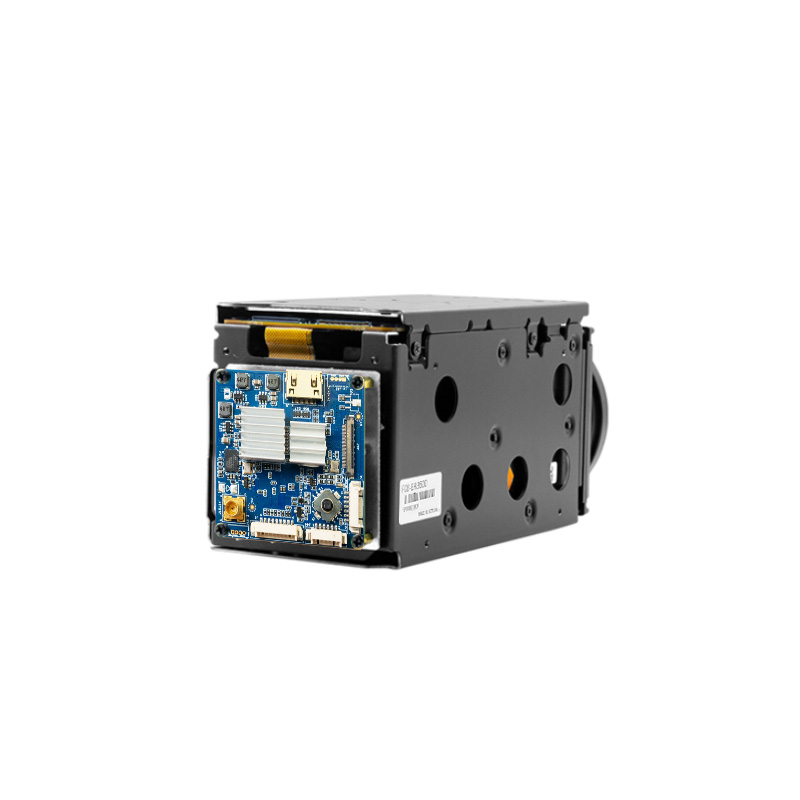

The SONY FCB-ER9500 can be connected to 12G SDI, 4K HDMI, and 4K to IP (coming soon) encoding control board, can achieve image output and related control. These coding control boards not only enrich the output mode of FCB-ER9500, but also improve its flexibility and adaptability in different application scenarios.
Iv. Application scenario and performance
Security monitoring: The SONY FCB-ER9500’s high definition, high frame rate shooting capabilities and powerful image stabilization make it an ideal choice in the field of security monitoring. The module can capture delicate image details, and maintain the clarity and stability of the picture in the environment of violent shaking or twisting, especially in the application scenarios such as intelligent transportation, Bridges, and vehicles that are prone to violent shaking.
Industrial automation: In the field of industrial automation, the SONY FCB-ER9500 can be used as a vision sensor for robotic arms to achieve tasks such as detection. Its high resolution and high-speed frame rate help to capture small changes in the target, thus improving the real-time and accuracy of detection.
Drone aerial photography: The SONY FCB-ER9500 is the ideal choice for drone aerial photography due to its excellent picture quality and stability. In the process of high-speed flight and severe turbulence, the FCB-ER9500 can still maintain a stable image quality, ensuring that the video is smooth without stalling.
In the medical field: In scenarios such as operating room monitoring, electronic colposcopy or medical imaging diagnosis, the SONY FCB-ER9500’s high-resolution and fine image control capabilities help doctors better observe conditions, develop treatment plans, and improve medical quality and safety.
In SUMMARY:
SONY FCB-ER9500, as a camera module that integrates 4K ultra HD image quality and 25x optical zoom, is undoubtedly a shining pearl in the field of video products today. It has successfully distinguished itself in several areas with its outstanding picture quality performance, excellent zoom capability, and advanced image stabilization and auto-adjustment technology. SONY FCB-ER9500 not only represents the pinnacle of camera technology, but also promotes the arrival of a new era of video product experience, bringing unprecedented changes and opportunities to all walks of life.
