SONY FCB-EV9520L How to output HDMI video signal?

SONY FCB-EV9520L, as a high-performance autofocus integrated HD camera module, its video output defines the foot as a universal LVDS, want to output and transmit other video signals, can only be achieved by means of video conversion.



Today, Ruiloog senior engineers for everyone is: SONY FCB-EV9520L how to output HDMI video signal.

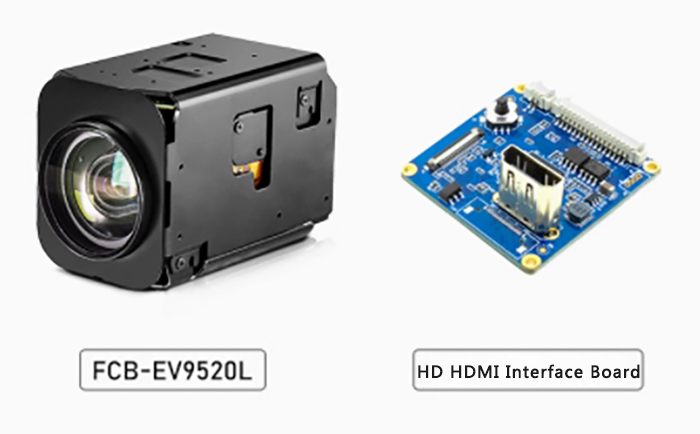

 SONY FCB-EV9520L and HD-HDMI interface board



As a widely used HD multimedia interface, HDMI has become the best choice for connecting monitors and recording devices because of its high bandwidth, high image quality and easy connection.



1. Required parts and tools

SONY FCB-EV9520L auto focus camera movement

HD-HDMI interface board

30Pin LVDS cable

HDMI HD cable

16Pin cable

Power adapter

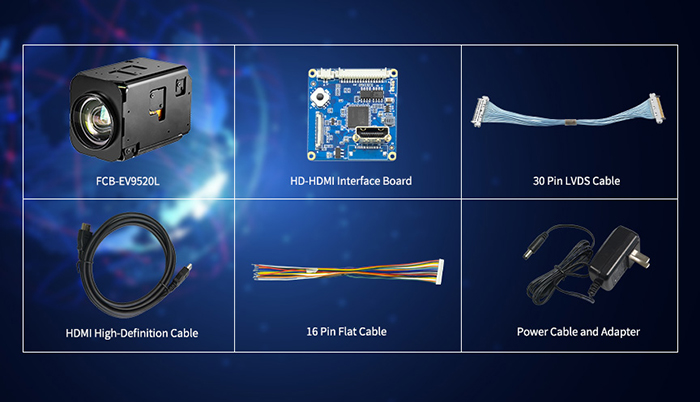

SONY FCB-EV9520L Output HDMI video signal required accessories



2. connection steps

Prepare equipment: Ensure that the SONY FCB-EV9520L camera movement, HD-HDMI coding control board, and other required components are in good working order.



Connect the LVDS cable: Use the LVDS cable to connect the SONY FCB-EV9520L camera movement to the HD-HDMI coded control board. LVDS wire is used to transmit the video signal generated by the camera movement.



Connect an HDMI cable: Connect one end of the HDMI cable to the HDMI output port on the HD-HDMI coding control board, and connect the other end to a display device that supports HDMI input (such as a monitor, TV, or HDMI high-definition video capture card).

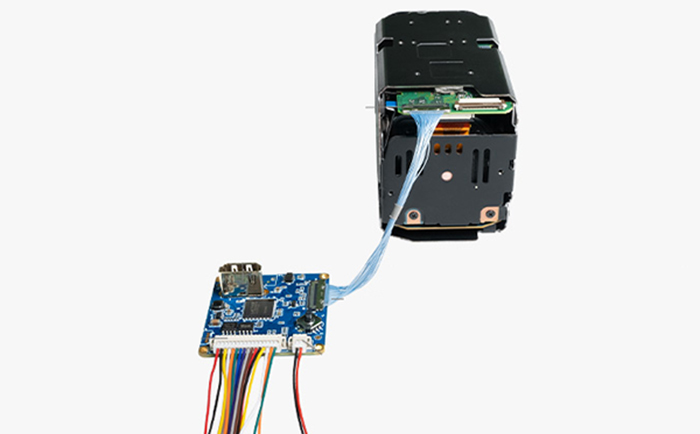

SONY FCB-EV9520L is connected to the HD-HDMI interface board



Configuration and debugging:

Ensure that all connections are secure and secure to avoid loose or poor contact.

According to the need, through the control serial port on the HD-HDMI interface board, the video signal format, resolution, frame rate and so on are configured.

Through external buttons or control devices such as RS-485, users can also achieve accurate control of zoom, focusing, gain, white balance and other functions of the camera movement.



3. precautions

Compatibility: Before connecting, ensure compatibility of all devices, including camera movement, coding control board, display device, HDMI cable, etc.



Signal quality: Use high-quality HDMI cables and LVDS cables to ensure the clarity and stability of the video signal.



Debugging and testing: After the connection is completed, the necessary debugging and testing are carried out to ensure that the video signal can be correctly transmitted and displayed.



Through the above steps, the SONY FCB-EV9520L camera movement can successfully output HDMI video signals and display them on display devices that support HDMI input. In this process, the HD-HDMI coding control board plays a key role, which converts the video signal of the FCB-EV9520L camera movement into HDMI video signal output and transmission through the LVDS line.



In addition to HDMI high-definition video signals, SONY FCB-EV9520L can also interconnect with different coding control boards to output 3G-SDI, network video signals.



In addition, the FCB-EV9520L video data can be collected by USB3.0 acquisition module.
