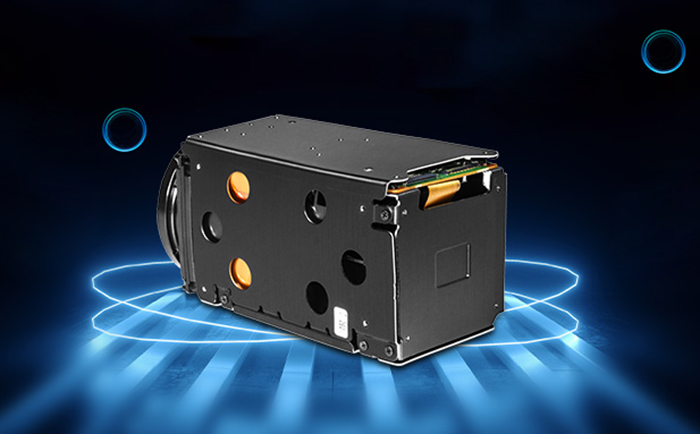

When it comes to SONY FCB-ER9500, the first thing that comes to mind is its 4K ultra HD picture quality and 60FPS fluency, the combination of these two technologies shows amazing image effects. At 4K resolution, the FCB-ER9500 is able to capture rich detail and color, while the high frame rate of 60FPS ensures continuity and realism in the dynamic picture. This dual advantage of high definition and high fluency makes the FCB-ER9500 stand out among many camera modules.
1, 4K ultra HD image quality
High resolution: The FCB-ER9500 supports 4K Ultra HD resolution (3840×2160 pixels), which is four times the resolution of HD, providing higher pixel density and richer color layers. This high resolution allows every detail in the image to be accurately represented, from tiny textures to complex color transitions.
High sensitivity sensor: The FCB-ER9500 uses a 1/1.8 “large target STARVIS2 CMOS sensor with an effective pixel of about 8.4 million. With excellent high sensitivity, low light performance and high dynamic range performance, the sensor is able to capture more detail in high-contrast scenes (especially bright and dark environments) and low light environments, and can still output color images even in low illuminance of 0.009Lx, with a minimum illuminance of 0.00008Lx.
Dealing with complex scenarios:
In the case of violent shaking or twisting, the SONY FCB-ER9500 built-in gyroscope sensor, electronic stabilizer and jitter compensation space and other advanced image anti-shake technology to ensure the stability and clarity of the video picture. And the FCB-ER9500 provides “Super” and “Super+” two anti-shake modes to adapt to different shooting scenes and needs.
What if the distance of the target object keeps changing? The 25x optical zoom lens equipped with the SONY FCB-ER9500 camera module can achieve a smooth transition from wide Angle to telephoto, covering a wider shooting range, whether it is vast natural scenery or remote detail capture, can easily cope with.
In addition, the SONY FCB-ER9500 introduces new three-zone features, including zone auto focus, zone auto exposure, and zone auto white balance. These features allow users to customize different image areas for fine control. By controlling the key parameters of the image, the intelligence and image quality of the camera are greatly improved.
The above performance together ensures that the SONY FCB-ER9500 camera module can achieve 4K ultra HD image quality output under different environmental conditions.
2, 60FPS high frame rate recording
Increased fluency: Recording at 60FPS (60 frames per second) allows the SONY FCB-ER9500 camera to maintain consistency and smoothness when capturing fast-moving scenes or targets. This high frame rate technology not only improves the visual enjoyment, but also makes the presentation of dynamic scenes more accurate and vivid.
Augmented reality: The 60-frame picture is closer to the visual perception in real life, because the human eye is actually constantly receiving and processing a large amount of picture information when observing fast-moving objects. As a result, the 60 frames of the SONY FCB-ER9500 can more accurately simulate the visual perception of the human eye, allowing users to feel a more realistic and immersive visual experience.
3, a variety of output options
The SONY FCB-ER9500 can be connected to 12G SDI, 4K HDMI, and 4K to IP (coming soon) interface board, can achieve image output and related control. These coding control boards not only enrich the output mode of FCB-ER9500, but also improve its flexibility and adaptability in different application scenarios.
The SONY FCB-ER9500 shows a wide range of application prospects and excellent performance in many industries such as security monitoring, industrial automation, drone aerial photography and medical fields.
