Today, with the digital wave sweeping the world, the application scenarios of video equipment are becoming increasingly extensive, ranging from security monitoring to drones, from industrial inspection to medical imaging. The intelligence and convenience of video equipment have become an inevitable trend in the development of the industry. In this transformation, the UVC protocol (USB Video Class), as an invisible driver for the intelligent interconnection of video devices, is quietly changing our working and lifestyle.
I. UVC Protocol: The standardized language for video devices
The UVC protocol, fully known as USB Video Class, is a set of protocol standards for USB video capture devices formulated by the USB Standardization Organization. It defines the data transmission protocol and format between the camera and the host, enabling cameras of different brands to be directly recognized and used by the operating system without the need to install any drivers. This feature greatly simplifies the installation and configuration process of the equipment, enhancing its ease of use and compatibility.
The core of the UVC protocol lies in its standardized feature. It stipulates key elements such as device descriptors, interface specifications, and control commands, ensuring that UVC devices produced by different manufacturers can achieve seamless integration on various operating systems and platforms. Whether it is Windows, Linux or macOS systems, and whether it is terminal devices such as computers, tablets or mobile phones, UVC devices can be easily recognized and used, providing great convenience for users.
Ii. Main Characteristics of the UVC Protocol:
Supports multiple video formats, including MJPEG, H.264, H.265, etc
Supports multiple resolutions and frame rates
Support video stream control, including starting, stopping, pausing and resuming video streams
Support device control, including setting video format, resolution, frame rate, etc
Iii. Technical Advantages of the UVC Protocol
1. Plug and play, simplifying operation
The greatest advantage of the UVC protocol lies in its plug-and-play feature. Users do not need to install specific drivers for each UVC device. They just need to connect the device to a compatible system and can quickly start using it. This feature not only saves users’ time and energy, but also lowers the threshold for using the device, enabling more people to easily get started with video equipment.
2. High-definition video transmission enhances the experience
The UVC protocol supports high-definition video transmission and can meet users’ demands for high-quality videos. Whether it’s video conferencing, drones or security surveillance, UVC devices can provide clear and smooth video images, enhancing the user experience. Meanwhile, with the continuous advancement of technology, the UVC protocol also supports video transmission with higher resolutions and frame rates, providing a broader space for future video applications.
3. Standardize interfaces to promote innovation
The standardized characteristics of the UVC protocol provide strong support for the innovation of video devices. Hardware manufacturers can focus on improving the quality and performance of their devices without having to invest a large amount of resources in developing dedicated drivers. This enables more innovative video devices to be quickly brought to the market, meeting the diverse needs of users. Meanwhile, standardized interfaces have also facilitated the interconnection and interoperability between video devices and other smart devices, driving the development of fields such as security monitoring, smart healthcare, and unmanned aerial vehicles.
Iv. Application of UVC Protocol in Xuanzhan Technology Products

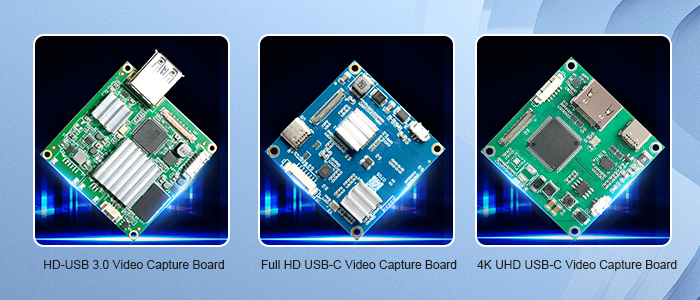

As a provider of high-definition video secondary development solutions, Xuanzhan Technology has always closely followed the technological development trend and deeply applied the UVC protocol in its products, such as USB3.0 video capture board, USB Type-c video capture board, and 4K USB Type-C capture board, etc. These acquisition modules achieve data transmission through a high-speed USB3.0 interface and output high-definition videos based on the standard UVC protocol. In the Windows system, there is no need to install driver programs, which greatly simplifies the installation and configuration process.
In the field of industrial inspection, Xuanzhan Technology’s USB3.0 video acquisition module, when connected to a high-definition integrated camera core module, can achieve real-time image acquisition and analysis, providing strong support for quality control in industrial production. In the field of medical imaging, it is used for video transmission in equipment such as endoscopes and microscopes, helping doctors observe the internal conditions of patients more clearly and improving the accuracy of diagnosis. In the field of security monitoring, this module supports the rapid deployment of high-definition camera modules, capable of quickly displaying the video from the camera core module to display devices such as computers, providing real-time and high-definition monitoring images for security assurance.
Summary
As an invisible driver for the intelligent interconnection of video devices, the UVC protocol is leading the video device industry to new heights with its advantages such as standardization, ease of use and compatibility. As a deep user of the UVC protocol, Xuanzhan Technology will continue to uphold the enterprise spirit of innovation, pragmatism and efficiency, providing users with more intelligent and convenient one-stop video solutions, and jointly promoting the prosperous development of the video equipment industry.
