Which camera blocks can be matched with the 4KP60 HDMI interface board to output images?

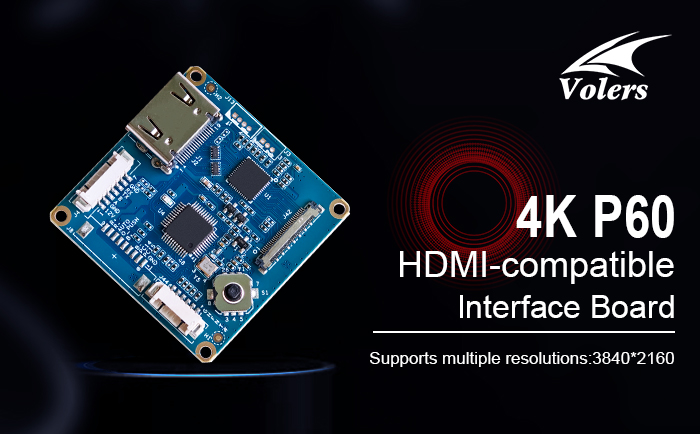

In the field of high-definition video products, 4K resolution and a high frame rate of 60fps have become the core indicators for measuring the performance of imaging systems. The 4KP60 HDMI interface board launched by Shenzhen Xuanzhan Technology, with its deep adaptation to SONY FCB series camera modules and cross-brand compatibility, is redefining the technical boundaries of high-definition video transmission.

The 4KP60 HDMI interface board is not only tailor-made for flagship modules such as SONY FCB-ER9500 and FCB-EW9500H, but also injects new vitality into the entire 4K camera module ecosystem through an open protocol architecture.

I. Core Compatible Module: Technical Synergy of SONY FCB zoom camera block
1. SONY FCB-ER9500:60fps high frame rate benchmark
As SONY ‘s first 4K@60fps integrated camera module, the FCB-ER9500 is equipped with a 1/1.8-inch STARVIS 2 CMOS sensor with 8.4 million effective pixels and a 25x optical zoom lens. The 4KP60 HDMI interface board is deeply coupled with it through the LVDS interface to achieve:

Lossless video transfer: Fully release 4K@60fps video stream, which can clearly capture fast-moving targets (such as racing cars, flying birds) in drone aerial photography, and accurately identify vehicle license plates and human facial features in security surveillance.
Breakthrough in low-light performance: By combining the low-light advantage of the STARVIS 2 sensor, in the night monitoring scenario, the interface board reduces the noise in the picture through an intelligent noise reduction algorithm and effectively improves the retention of details.
Dynamic range expansion: Supports SONY’s Wide Dynamic Range (WDR) technology. In backlit environments (such as the entrances and exits of the monitoring room), it can simultaneously retain details in both highlight and shadow areas, effectively improving the accuracy of target recognition.

2. SONY FCB-EW9500H: A Model of multi-scenario adaptation
For medical imaging, industrial inspection and other fields, the FCB-EW9500H 4K@60fps output combined with the interface board is realized through 4K HDMI output function:

Lossless video output: In the surgical teaching scenario, the 4KP60 HDMI interface board helps the FCB-EW9500H output 4K HDMI ultra-high-definition video signals to ensure the precise restoration of medical images.

Attention
Since the effective pixels of SONY FCB-EW9500H are 4.17 million (less than the 8 million pixels of the 4K standard), when using the above solution to output 2160P video images, the phenomenon of black frames will appear around the picture. It can be solved by using the cropping tool or switching to the 1080P mode.

3. Other 4K camera blocks of SONY
In addition to SONY FCB-ER9500 and FCB-EW9500H, the 4KP60 HDMI interface board can also be combined with other 4K camera modules of the SONY FCB series to achieve video conversion, capture, transmission and related control. The supported list is as follows:
FCB-ES8230
FCB-ER8530
FCB-ER8550
FCB-ER8300

Ii. Cross-brand Compatibility: VISCA protocol opens the door to the ecosystem
By supporting the SONY VISCA control protocol, the 4KP60 HDMI interface board can achieve seamless integration with third-party 4K ultra-high-definition camera modules, greatly expanding its application scenarios and compatibility. This compatibility not only provides users with more choices, but also reduces the complexity and cost of system integration. Whether it is medical operating rooms, educational classrooms, security monitoring, or industrial inspection and other fields, users can choose the appropriate 4K ultra-high-definition camera module according to their own needs, and easily achieve the collection and transmission of 4K ultra-high-definition videos.

Furthermore, the low latency feature of the 4K P60 HDMI interface board ensures the real-time performance of the video signal, which is particularly important for scenarios that require rapid response. The multiple video formats and control protocols it supports further enhance the flexibility and adaptability of the system. Through seamless integration with third-party devices, the 4KP60 HDMI interface board creates an efficient, stable and easily expandable 4K ultra-high-definition video solution for users, helping various industries move towards a higher-definition visual experience.

Iii. Industry Application Scenarios: Full coverage from the sky to the ground
Drone aerial photography: The visual cornerstone of the low-altitude economy
High-speed flight stability: In the unmanned aerial vehicle (UAV) carrying scenario, the 4KP60 HDMI interface board, in combination with the 25x optical zoom of the FCB-ER9500, can stably capture ground targets at high-speed flight speeds and effectively reduce the phenomenon of trailing.

2. Intelligent Transportation: A security tool with high frame rate
License plate recognition optimization: In the highway checkpoint system, the 4KP60 HDMI interface board and the FCB-ER9500 4K@60fps video stream increase the processing frame rate of the license plate recognition algorithm by 2 times, effectively improving the recognition accuracy.

3. High-end video conferencing: Smooth and natural ultimate experience
Paired with the 4KP60 HDMI interface board, the SONY FCB-ER9500 can present a smoother and more natural image picture, ensuring that participants can clearly see each other’s facial expressions and movements, thereby improving the communication efficiency and effect of the meeting. A high frame rate of 60 frames per second means that the picture is smoother and more natural, reducing motion blur and making the dynamic images in the meeting clearer and more stable. In addition, its 25x optical zoom function enables the camera to easily achieve a smooth transition from wide-angle to long distance, meeting the capture requirements in different scenarios.

Summary
Under the trend of high resolution and high frame rate of video products, the 4KP60 HDMI interface board, with its open compatibility and excellent performance, has become a bridge connecting camera modules and industry applications. From the technological deepening of SONY’s FCB series camera blocks to the construction of a cross-brand ecosystem, this product is promoting the in-depth penetration of 4K ultra-high-definition technology into vertical fields such as security, healthcare, and transportation, providing a reliable visual infrastructure for industrial upgrading.
