Sony FCB camera block

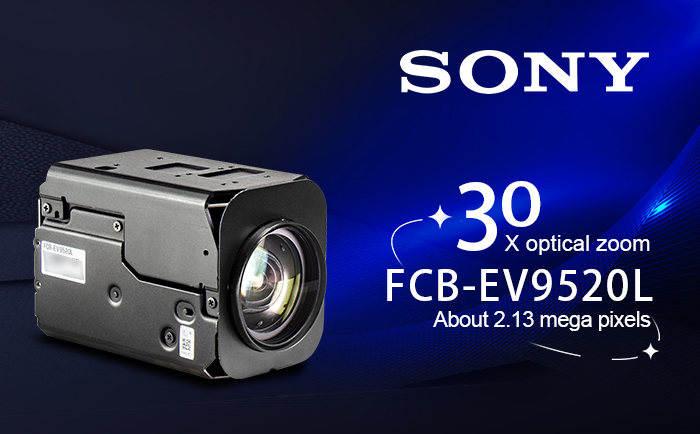

As the core component of the camera module, the performance of the image sensor directly determines the level of imaging quality. The Sony FCB-EV9520L high-definition camera module, equipped with a 1/2.8-inch STARVIS2 CMOS sensor, has successfully broken through the limitations of traditional vision technology, bringing brand-new solutions to fields such as security monitoring, intelligent transportation, industrial inspection, and medical imaging.
1. High sensitivity, the “thousand-mile eyes” in the dark night
The SONY FCB-EV9520L adopts the STARVIS2 CMOS sensor, which features outstanding high sensitivity and low light performance. It has approximately 2.13 million effective pixels, supports full HD resolution output of 1920×1080, and has a frame rate of 60fps, ensuring clear imaging in dynamic scenes.
What is even more worth mentioning is that it can still output high-definition color images at a low light level of 0.009lx. Its minimum illuminance can reach 0.00008lx.
This high sensitivity and low illumination performance make the FCB-EV9520L a “night vision wonder” in the field of security monitoring.
At night or in dimly lit environments, it can clearly capture the detailed features of the target, providing solid data support for security prevention and control.
Meanwhile, in the field of medical imaging, such as in night emergencies or certain special examination scenarios, it can also provide doctors with clear image-assisted diagnosis.
2. Wide dynamic Range, the “Balance Master” in Complex Lighting environments

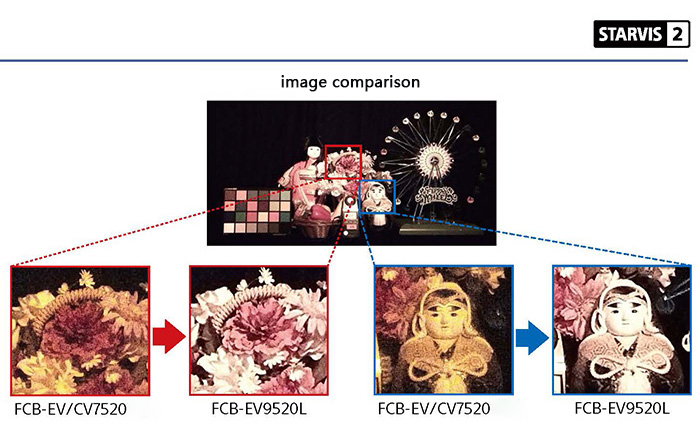

Wide Dynamic Range (WDR) technology is another major highlight of SONY FCB-EV9520L. Through pixel-level exposure control and multi-frame synthesis algorithms, the STARVIS2 CMOS sensor achieves an ultra-high dynamic range, enabling it to maintain clear images in complex lighting conditions such as backlighting, direct strong light, and tunnel entrances and exits.
This technological breakthrough enables the FCB-EV9520L to simultaneously capture details in the reflection of license plates and the shadows of car Windows in intelligent transportation systems, providing a reliable basis for violation capture and safety early warning.
In the field of security monitoring, it can also clearly restore the facial features in the dark areas and the license plate information in the highlighted areas, enhancing the efficiency of night monitoring. Besides,
In the field of medical imaging, such as laparoscopic surgery, its 1080P/60fps full high-definition picture quality combined with WDR function can clearly present vascular branches and tissue layers, helping doctors accurately identify the direction of nerves and blood vessels.
3. Color Reproduction and Noise Reduction Algorithms: The details reveal the truth
The SONY FCB-EV9520L also performs well in color reproduction and noise reduction algorithms. It combines color restoration algorithms and can output natural color images in an environment without visible light, enhancing the visual experience. Meanwhile, the 3D+2D noise reduction algorithm is adopted, based on the spatio-temporal joint filtering technology, which effectively suppresses noise points under low illumination and keeps the picture clear.
This ultimate pursuit of details enables the FCB-EV9520L to clearly capture the soldering details of chip pins and background textures in the field of industrial inspection. In the monitoring of high-temperature furnaces in steel plants, it can simultaneously present the flame morphology inside the furnace and the temperature distribution on the furnace wall. In the field of medical imaging, it can provide doctors with clearer and more accurate image support, facilitating precise diagnosis.
4. intelligent regulation and real-time interaction, flexibly responding to diverse demands
In addition to its outstanding imaging performance, the SONY FCB-EV9520L also supports a variety of intelligent adjustment functions. It features regional automatic exposure, regional automatic focus and regional automatic white balance functions, and can make individual adjustments based on the differences in brightness, focus and color temperature of different regions in the image to optimize image quality. This intelligent adjustment method not only improves the image quality but also reduces the user’s burden.
Summary
The SONY FCB-EV9520L STARVIS2 CMOS sensor, with its advantages of high sensitivity, wide dynamic range, color reproduction and noise reduction algorithms, as well as intelligent adjustment, has successfully broken through the limitations of traditional vision technology, bringing brand-new solutions to fields such as security monitoring, intelligent transportation, industrial inspection, and medical imaging. Choosing FCB-EV9520L means choosing a more intelligent, efficient and reliable visual future.
