Sony FCB camera block

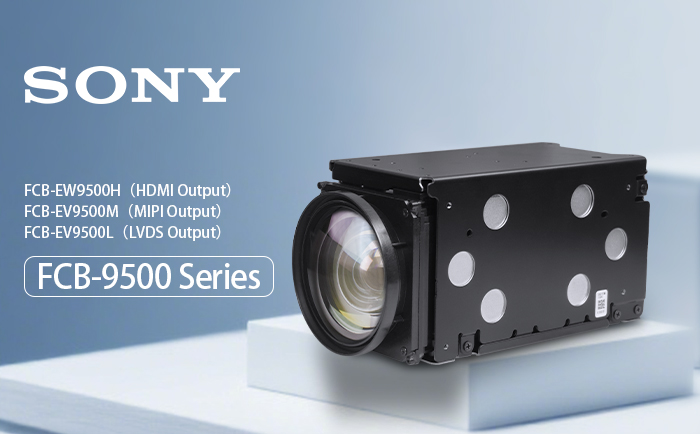

In the Sony FCB-9500 series, there are three integrated camera modules with exactly the same appearance and size. They are: FCB-EW9500H (HDMI output), FCB-EV9500M (MIPI output), and FCB-EV9500L (LVDS output).
The SONY FCB-9500 series meets the demands of various application scenarios by offering camera modules with three different interfaces. With the same appearance but different interfaces and output methods, the SONY FCB-9500 series demonstrates its strong adaptability and flexibility.
With the wide application of the SONY FCB-9500 series in numerous fields, its attention has been continuously rising, and users’ expectations and questions about its performance have also been increasing day by day. In particular, the issue of how this series achieves 30x enhanced optical zoom on the basis of 25x physical focal length (6.5mm-162.5mm) has drawn much attention. For this reason, Danny Wong, a senior engineer from Xuanzhan Technology, provided a comprehensive and in-depth explanation of this technical detail.
I. The Mystery of 30x Enhanced Optical Zoom
The SONY FCB-9500 series camera module adopts advanced optical design and image processing technology, achieving a breakthrough of 30x enhanced optical zoom at a 25x physical focal length. The core of this technology lies in the combined zoom that integrates an 8M compatible lens and a 4M image sensor. Specifically, it is achieved through the following methods:
1. High-precision lens group design
The SONY FCB-9500 series adopts a precise structure of high-precision lens groups. By optimizing the lens spacing and coating technology, on the basis of 25x optical zoom, it compensates for edge distortion and chromatic aberration through algorithms, making the image quality of the digital zoom part approach the optical effect, thereby achieving 30x enhanced optical zoom.
2. STARVIS CMOS sensor empowerment
Equipped with a 1/1.8-inch STARVIS CMOS sensor (with an effective pixel count of 4.17 million), its high sensitivity (minimum illuminance 0.00008Lx) and low noise features provide sufficient pixel redundancy for digital zoom. Even when magnified to 30 times, the image details and clarity can still be retained through multi-frame synthesis technology.
3. StableZoom™ Dynamic compensation algorithm
SONY’s patented StableZoom™ technology analyzes image shake and object movement in real time during zooming. By combining optical image stabilization (gyroscope sensor) with digital compensation, it ensures the stability of the telephoto end image. For instance, in drone inspection, even if the target moves rapidly, details can still be accurately captured.
4. Advanced image processing technology
SONY’s ISP (Image Signal Processor) technology further optimizes image quality, ensuring that chromatic aberration and blurriness of images are effectively controlled when zooming at high magnification.
FAQ

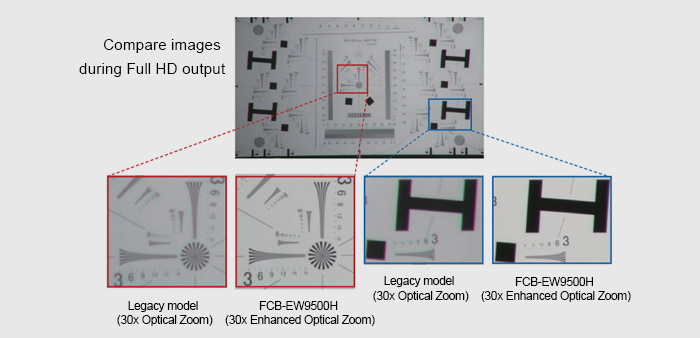

Q: Does achieving 30x enhanced optical zoom at a 25x physical pitch sacrifice image quality?
A: No. Given the above features and advantages, it can help the SONY FCB-9500 series achieve a breakthrough of 30x enhanced optical zoom at a 25x physical focal length, and the details and clarity of the image can basically remain unchanged.
Ii. Technical Features and Advantages
The SONY FCB-9500 series camera module, with its advanced 30x enhanced optical zoom technology, offers strong support and significant advantages for a variety of application scenarios.
1.High-definition capture of long-distance targets
The 30x enhanced optical zoom technology of the SONY FCB-9500 series camera module can magnify distant targets while maintaining the clarity and detail of the image. Even at the telephoto end, it is easy to capture the subtle features of distant objects.
2. Clear imaging in low-light conditions
Combined with the Super Starlight night vision function, the SONY FCB-9500 series camera module’s 30x enhanced optical zoom can output high-quality color images even in low light or no light conditions.
3. Reduce equipment costs and complexity
The SONY FCB-9500 series camera module features 30x enhanced optical zoom, eliminating the need for users to equip additional infrared cameras or other auxiliary devices, thereby reducing equipment costs and system complexity.
4. Enhance image stability and clarity
The 30x enhanced optical zoom technology of the SONY FCB-9500 series camera module, combined with advanced image stabilization function, ensures that images remain stable and clear even at high magnification zoom.
5. Enhance the efficiency and flexibility of monitoring
The 30x enhanced optical zoom technology of the SONY FCB-9500 series camera module offers a wider monitoring range and greater flexibility. Users can quickly adjust the focal length as needed to capture targets at different distances.
Iii. Application Scenarios
The 30x enhanced optical zoom technology of the SONY FCB-9500 series camera module enables it to perform exceptionally well in a variety of scenarios.
Intelligent transportation: It can clearly capture the license plates and details of distant vehicles.
Drones: It provides drones with more powerful long-distance capture capabilities.
Security monitoring: It can still provide clear monitoring images in low light and complex environments.
Industrial inspection: It can magnify the circuit of a PCB by 30 times, making even the slightest defects and flaws clearly visible.
Port lifting: Clearly monitor vessels and cargo in the foggy port environment.
Iv. Summary
This article starts from three core aspects: how to achieve 30x enhanced optical zoom, technical features and advantages, and application scenarios, and comprehensively and multi-dimensionally analyzes the outstanding performance of the SONY FCB-9500 series camera module. Through in-depth interpretation of its technical principles, the powerful capabilities of this series of camera modules in the field of high-magnification zoom are clearly presented. Combined with actual application scenarios, it fully demonstrates its extensive adaptability and high flexibility. This not only provides users with detailed technical basis for a thorough understanding of the SONY FCB-9500 series, but also offers highly valuable references and strong technical endorsements when users choose SONY camera modules.
