In fields with extremely high requirements for image quality, such as security monitoring, unmanned aerial vehicle inspection, intelligent transportation, and high-end video conferencing, clear, detailed and stable images are the key to ensuring the successful completion of tasks.
The SONY FCB-ER9500 integrated camera module, equipped with a large target surface sensor, has become a trusted choice for many professional users. So, how exactly does this large target surface sensor camera module enhance image quality? Danny Wong, a senior engineer from Xuanzhan Technology, will explore this with you in depth.
Large target surface sensor: Capture more light and details

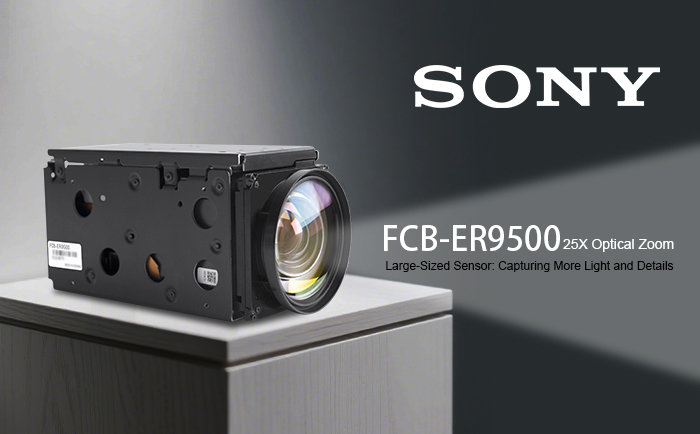

The SONY FCB-ER9500 is equipped with a 1/1.8-inch STARVIS2 CMOS large surface sensor, which has significant advantages over traditional small surface sensors. Large target surface sensors have a larger light-sensitive area, which can increase the physical area of a single pixel under the same number of pixels, thereby significantly enhancing the light reception capability.
This means that in low-light conditions, the FCB-ER9500 can capture more light, reduce noise, and output clearer and more detailed images.
Take security surveillance as an example. In night or dimly lit scenes, traditional cameras often struggle to capture clear images. However, the SONY FCB-ER9500, with its large sensor surface, can capture clear images even at 0.00016Lx (ICR open mode, shutter speed: Even under extremely low illumination of 1/30 second, it can still output clear images, ensuring the comprehensiveness and accuracy of the monitoring screen.
High dynamic range: Capable of handling complex lighting environments
In addition to low-light performance, the large target surface sensor also endows the SONY FCB-ER9500 with outstanding high dynamic range performance. In high-contrast scenes, such as streets under direct sunlight or environments with significant differences in indoor and outdoor light, traditional cameras often struggle to capture the details of both the bright and dark areas, resulting in overexposure or underexposure of the picture.
The large target surface sensor of the FCB-ER9500 can simultaneously capture the details of both the bright and dark areas, ensuring that every element in the picture is presented clearly.
This feature of SONY FCB-ER9500 is particularly important in the field of intelligent transportation. In the monitoring of high-speed vehicles, the FCB-ER9500 can clearly capture key information such as license plate numbers and vehicle colors. Even in backlit or strong light conditions, it can maintain the continuity and stability of the image, providing strong support for traffic management.
Good color reproduction: Further enhance image quality
The large target surface of SONY FCB-ER9500 enhances the sensitivity of the sensor. This enables the sensor to capture more abundant color information under different lighting conditions, providing a solid foundation for color reproduction.
In addition to its hardware advantages, the FCB-ER9500 further enhances image quality through outstanding software optimization. Its built-in algorithms such as noise reduction, color correction and contrast enhancement can further optimize and process the captured images, making the final presented picture more realistic and vivid.
25x optical zoom: Clear both near and far
In addition to the large target surface sensor, the FCB-ER9500 is also equipped with a 25x optical zoom lens, which can easily achieve a smooth transition from wide-angle to long-distance. This feature enables the FCB-ER9500 to perform exceptionally well in scenarios such as drone inspection and large-scale event monitoring. Whether it’s a vast scene or distant details, the FCB-ER9500 can capture incredible details at 4K high resolution.
In unmanned aerial vehicle (UAV) inspection, the FCB-ER9500 not only can handle both urban panoramic scanning and detailed capture of bridge cracks, but also its high frame rate capture capability of 60 frames per second provides inspection personnel with comprehensive and accurate image information. In large-scale event monitoring, the FCB-ER9500 can easily capture every corner of the scene, ensuring the safe and smooth progress of the event.
In addition, the FCB-ER9500 also features area auto focus, area auto exposure and area auto white balance functions. These functions can set independent specific areas within the picture, so that the adjustment level of the captured image only changes according to the specific area and is not affected by changes outside the area. By precisely controlling the key parameters of images, the intelligence and quality of images have been greatly enhanced.
Conclusion
The SONY FCB-ER9500, equipped with a large target surface sensor, a 25x optical zoom lens, and outstanding software optimization, provides high-quality image capture solutions in low-light conditions for fields such as security monitoring, unmanned aerial vehicle inspection, intelligent transportation, and high-end video conferencing.
Whether it’s clear capture in low-light conditions or detail retention in high-contrast scenes, the FCB-ER9500 can handle them with ease, ensuring the comprehensiveness and accuracy of the picture. If you are looking for a camera module that can enhance image quality, then the SONY FCB-ER9500 is undoubtedly your ideal choice.
