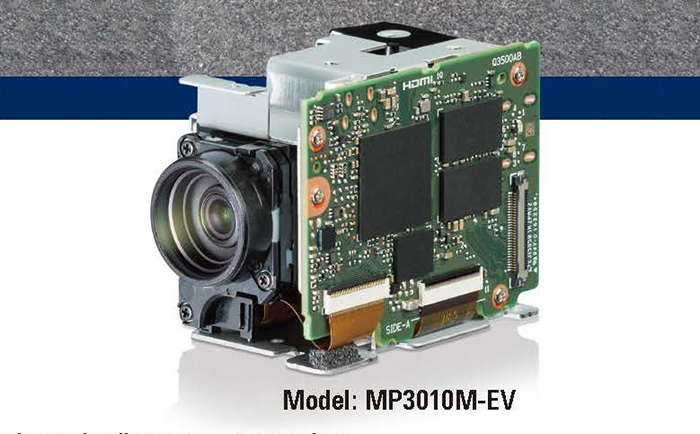

Tamron MP3010M-EV specifications
Compact and Lightweight Body
total length 59mm and weight 70g
10x optical zoom lens
industry-leading compact zoom lens
Day/Night feature
for 24/7
surveillanceModel: MP3010M-EV Compact and lightweight design by utilizing industry-leading compact zoom lensCamera module for various applications
| Basic Specifications | |
| Image Sensor(Number of effective pixels) | 1/2.8-type STARVIS CMOS Sensor (Approx. 2.0 pixels) |
| Output Image Size (H x V) | 1920×1080，1280×720 |
|
Signal System |
1080p/60，1080p/59.94，1080p/50，
1080p/30，1080p/29.97，1080p/25， 720p/60，720p/59.94，720p/50， 720p/30，720p/29.97，720p/25 |
| Minimum Illumination(50%) | 0.1 lx (1/30sec, F/1.8,Color,Typical)
0.025 lx (1/30sec, F/1.8,B&W,Typical) |
| Image S/N | 50 dB(Weight On) |
| Gain | Auto/Manual |
| Shutter Speed | 1/1 to 1/10,000s |
| Sync System | Internal |
| Exposure Control | 0d8 to +10.5dB,15 steps |
| Backlight Compensation | On/Off |
| White Balance | ATW1(wide),ATW2(tele), Indoor,Outdoor, Indoor,Outdoor |
| Focusing system | Auto, Manual, One push,Af sensitivity |
| Lens | 10x optical zoom,16x digital zoom
f=3.3mm to 33mm,F1.8 to 3.4 |
| Horizontal viewing angle (wide to tele) | 59.2°（wide） to 6.7°（tele） |
| Minimum object distance (wide to tele) | Visible light: 10mm(wide) to 800mm(tele) 850nm: 10mm(wide)~1200mm(tele) |
| Camera Features | |
| Day/Night | Day/Night |
| Wide-D | Yes |
| Horizontal resolution | Center :80aTy ines (Typical) |
| EIS | OFF/ON |
| Interface | |
|
Video output (HD) |
LVDS: digital Y/Pb/Pr 4:2:2
HDMI digital Y/Pbpr 4.2:2 HDMI Type D |
| Video output（SD） | CVBS 1.0 v (p-p 75Ω) |
| Camera control | VISCA |
| General | |
| Camera control | 8.0V-12.0V±10% DC |
| Power consumptior | Approx.2.5W Shutter speed Power consumptior (Approx4 4W in the zoom and focus operation) |
| Operating temperature | -5°C to +60°C(23°F to +140°F) |
| Storage temperature | -40°C to +60°(-40°F to +140°F) |
| Operating humidity | 20%-80%(no condensation) |
| Storage humidity | 20%-90%(no condensation) |
| Dimensions (W x H x D) | 33 x 43 x 59mm |
| Weight | about 70g |
