Sony FCB camera block
Under the details lies the focus
Against the backdrop of the accelerated development of smart cities, Industry 4.0 and low-altitude economy, high-definition imaging is no longer a luxury. Ultra-high definition, intelligence and multi-functional integration are becoming the new benchmarks of the industry. Ruiloog Electronic, the official authorized distributor of SONY (China), believes that the SONY FCB-ER85304K ultra-high-definition camera module is precisely the leader in this trend. It is quietly reshaping the boundaries of image quality perception in multiple industries.
I. Core Technology Breakthrough: From full High Definition to 4K breakthrough

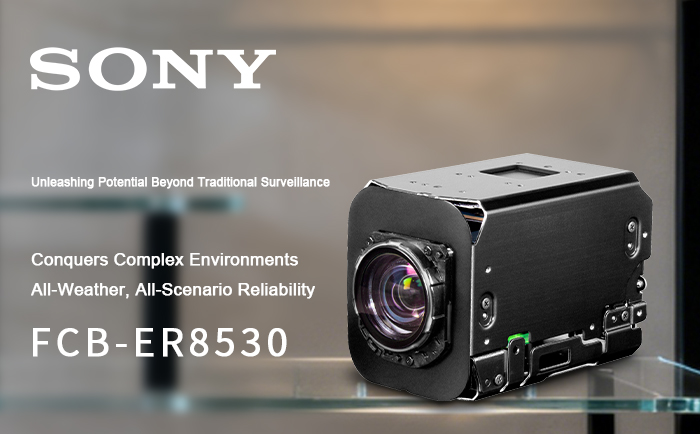

The SONY FCB-ER8530 is equipped with a 1/2.5-inch Exmor R CMOS sensor, with an effective pixel count of up to 8.51 million. It supports a 4K ultra-high-definition resolution output of 3840×2160, and the richness of picture details far exceeds that of traditional 1080P devices.
The SONY FCB-ER8530 integrates a 20x optical zoom lens, combined with 12x digital zoom technology, enabling a smooth and rapid transition from a wide-angle view to a long-distance close-up. This means that from a distance, it can still clearly capture the cracks in buildings, the veins of vegetation, and even the corrosion details of high-voltage clamps.
The SONY FCB-ER8530 is also equipped with advanced image stabilization, which can effectively counteract image blurring caused by low-frequency vibration. This is crucial for outdoor devices installed on Bridges, mobile vehicles or in shaking environments.
Ii. Conquering Complex Environments: Reliable performance in all weather conditions and scenarios
Security monitoring often needs to deal with challenging environments such as backlighting, low illumination, and smog. The SONY FCB-ER8530 performs exceptionally well in these scenarios thanks to its wide dynamic range (WDR) technology and fog-penetrating function.
The wide dynamic range technology of SONY FCB-ER8530 balances the details of bright and dark areas in high-contrast scenes through a multi-frame synthesis algorithm, avoiding misjudgment caused by license plate reflection or shadow occlusion.
The fog-penetrating function can effectively reduce the impact of haze and enhance visual reliability in bad weather.
In low-light conditions, the SONY FCB-ER8530 supports a minimum color imaging of 0.4lx (ICR off, slow shutter speed of 1/30s, high sensitivity on), truly achieving full-color monitoring day and night. Its automatic ICR (Infrared Cut-off Filter Removal) function can automatically switch to night mode under low-light conditions to enhance sensitivity.
Iii. Intelligent Functions: Unlimited Possibilities Beyond Traditional Monitoring
The SONY FCB-ER8530 is not merely a 4K ultra-high-definition surveillance camera module; it is also an intelligent vision system. It supports intelligent shooting modes such as auto focus, auto exposure, and auto white balance, and can automatically adjust parameters according to different environments to ensure the best picture effect.
The SONY FCB-ER8530 also features a privacy area masking function, which can automatically block sensitive areas in the surveillance screen, meeting the needs of both security monitoring and privacy protection. Its multiple functions such as image freezing, picture flipping, and digital zoom offer flexible adjustment possibilities for various application scenarios.
Iv. Multi-field Applications: Empowering the intelligent upgrade of thousands of industries
1. Intelligent traffic management
In highway monitoring, the 4K picture quality and 20x zoom capability of SONY FCB-ER8530 can clearly capture vehicle behavior from a distance, significantly improving the accuracy of license plate recognition and providing strong support for traffic law enforcement and flow management.
2. Industrial quality inspection
In industrial inspection on industrial production lines, the 20x optical zoom function of SONY FCB-ER8530 meets the diverse demands of macro observation and long-distance shooting, enabling clear detection of minute defects on product surfaces and enhancing the level of product quality control.
3. Unmanned aerial vehicle inspection
The lightweight design (only 275g) and compact body (50.0×60.0×93.3mm) of SONY FCB-ER8530 make it highly suitable for integration into unmanned aerial vehicle platforms. In agricultural monitoring, it can accurately identify crop diseases and pests. In power inspection, potential hazards of high-voltage line towers can be clearly identified.
4. Medical imaging assistance
In the medical field, SONY FCB-ER8530 can provide high-quality 4K ultra-high-definition video signals, which are applied in surgical assistance and medical image acquisition, helping doctors observe minute structures in real time and ensuring the accuracy of operations.
V. Integration and Compatibility: Seamless integration with existing systems

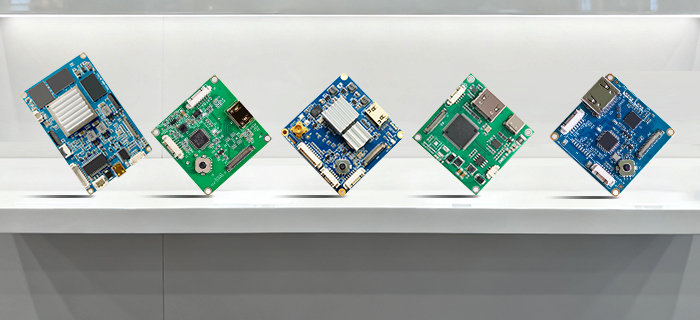

The SONY FCB-ER8530 supports LVDS interface and VISCA control protocol, and can be seamlessly integrated into various video systems. By combining with the different encoding control boards independently developed by Ruiloog Electronic, a provider of high-definition video secondary development solutions, it can flexibly output video signals in various formats, meeting the interface requirements of different industries.
4K HDMI and 4KP60 HDMI interface board: It can output 4K30 frame video signals for SONY FCB-ER8530 and achieve relevant control.
12G-SDI interface board: It can simultaneously output 6G-SDI and 4K HDMI video signals for SONY FCB-ER8530.
4KP60 AI Network interface Board: It can convert the video signal of SONY FCB-ER8530 into a network video signal for long-distance transmission.
4K USB TYPE-C video capture module: Supports 4K USB TYPE-C and HDMI loop-out, and enables video capture from SONY FCB-ER8530.
Conclusion: A new benchmark for visual technology and the cornerstone of an intelligent future
The SONY FCB-ER8530 4K ultra-high-definition surveillance camera module, with its outstanding imaging performance, strong environmental adaptability and rich intelligent functions, is becoming the preferred solution in multiple fields such as security monitoring, industrial inspection, unmanned aerial vehicle aerial photography and medical imaging.
It is not merely a camera module, but a microcosm of the development of visual technology – from the simple pursuit of clarity to the current integration of intelligent analysis, multi-functional integration, and environmental adaptability. With the continuous development of artificial intelligence and Internet of Things (iot) technologies, high-performance camera modules like SONY’s FCB-ER8530 will continue to empower various industries and drive society towards a smarter, safer and more efficient direction.
SONY FCB-ER8530 will be showcased at the 20th China Public Security Expo (CPSE2025). At that time, we sincerely welcome you to come to the site for experience and exchange.
Time: October 28-31, 2025
Location: Shenzhen Convention and Exhibition Center (Futian)
Booth No. : 1C43, Hall 1
