Sony FCB camera block
In the security monitoring industry, the SONY FCB-EV7520 series was once hailed as a “classic legend” and has been widely used in security, drones, medical equipment and other fields around the world for many years. With the continuous iteration and update of technology, SONY announced the discontinuation of the FCB-EV7520 series and the full launch of its upgraded version, the FCB-EV9520L. This new product not only fully supports the installation interfaces of existing devices but also achieves a leapfrog improvement in performance, setting a new benchmark in the field of security monitoring.

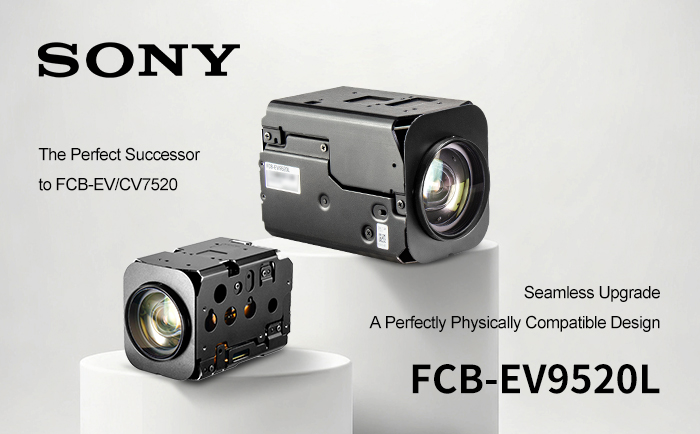

1. Seamless Upgrade: A perfect design with physical compatibility
One of the most commendable features of the SONY FCB-EV9520L is that it achieves full physical compatibility with the FCB-EV7520. The body dimensions of the two devices are exactly the same, both being 50.0×60.0×89.7 millimeters, and the LVDS interface pin definitions are fully compatible.
This design enables users to upgrade their devices without modifying the mechanical structure or circuit design of the original equipment in most cases, and they can directly replace it (the lens position of the FCB-EV9520L is about 2mm lower than that of the FCB-EV7520). Whether it is the old monitoring dome cameras in ports, the pan-tilt units of unmanned aerial vehicles, or the vision modules of surgical robots, they can all be easily upgraded without changing the original architecture, significantly shortening the upgrade cycle and reducing the replacement cost.
Ii. Performance Superiority: A Comprehensive Leap in technical Parameters
If physical compatibility is the fundamental advantage of the FCB-EV9520L, then its overall performance improvement is the core competitiveness that enables it to replace the FCB-EV7520 series.
Sensor Revolution: The FCB-EV9520L is equipped with SONY’s latest STARVIS 2 CMOS sensor. Compared with the Exmor R CMOS sensor of the 7520 series, its sensitivity has been increased by approximately twice. This means that in low-light conditions, the FCB-EV9520L can provide brighter and clearer image quality.
2. Astonishing low-light performance: In terms of specific parameters, the minimum illuminance of the FCB-EV9520L reaches 0.009Lx in color mode and even 0.00008Lx in black and white mode, which is at the starlight level. Compared with the 0.1Lx (color) and 0.001Lx (black and white) of the FCB-EV7520 series, the sensitivity has been greatly enhanced. This means that even in extremely low light conditions, the FCB-EV9520L can still capture clear images.
3. Wide dynamic range upgrade: The FCB-EV9520L features an ultra-wide dynamic range of 130dB, far exceeding that of the FCB-EV7520 series. In strong backlight conditions, it can simultaneously retain the details of both the bright and dark areas, effectively solving the overexposure problem in strong backlight scenarios such as tunnel entrances and Windows.
Iii. Function Enhancement: Comprehensive Upgrade of Intelligent Algorithms
In addition to the improvement in hardware performance, the FCB-EV9520L has also achieved significant enhancements in intelligent functions:

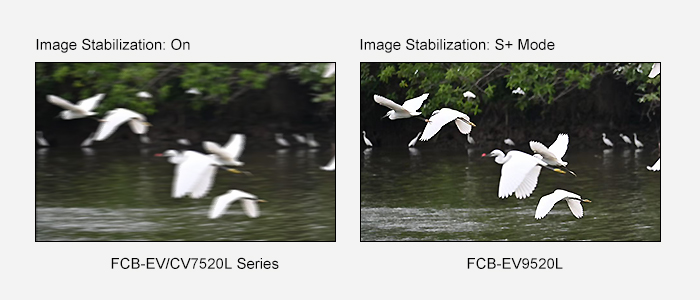

1. Super Anti-shake technology
The FCB-EV9520L is equipped with dual image stabilization modes: Super and Super+. By using a larger correction area to suppress intense image jitter, high-precision videos with reduced blurriness can be captured even in harsh environments with intense vibration. This is particularly important for scenarios such as intelligent transportation, shipborne systems, bridge monitoring, and unmanned aerial vehicle (UAV) aerial photography.
2. Three-zone intelligent functions: The FCB-EV9520L is equipped with zone auto exposure, zone auto focus, and zone auto white balance functions. Users can optimize specific areas in the image to achieve fine adjustments to key regions.
3. Optical axis consistency optimization: The FCB-EV9520L features superior optical axis consistency, ensuring that the focus and image quality remain consistent across different focal lengths and field of view angles. This is particularly important during the zooming process, as it can provide more accurate and consistent high-quality image output.
Iv. Application Scenarios: Performance Enhancement in Multiple Fields
The performance improvement of FCB-EV9520L can bring significant effects in various application fields:
1. Security monitoring: In night monitoring, the FCB-EV9520L’s starlight-level low-light capability can output full-color images in nearly total darkness. Its wide dynamic range feature can effectively deal with backlit scenarios, improving the license plate recognition rate and the accuracy of face recognition.

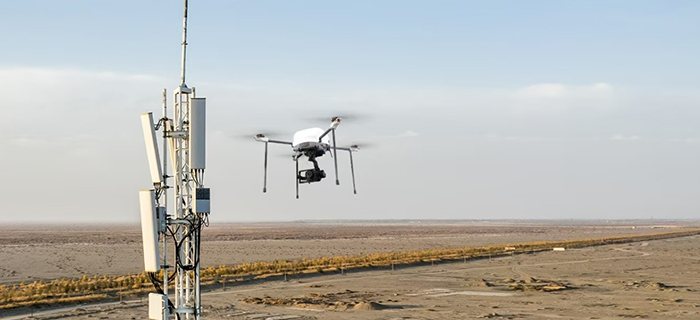

2. Drone inspection: A significant advantage lies in the weight reduction of approximately 17g (from 255g to 238g). Combined with the rapid auto-focusing function, drones can capture more stable and clear images during flight, providing higher-quality data for applications such as power inspection and agricultural monitoring.
3. Industrial Inspection: The high-precision imaging combined with the area focusing function enables the FCB-EV9520L to detect product detail defects more accurately, enhancing the accuracy and efficiency of automated inspection.
Conclusion
The SONY FCB-EV9520L is not merely an update or replacement, but a comprehensive leap over the FCB-EV7520. It retains the physical compatibility advantages of its predecessor, while achieving significant improvements in light-sensing performance, anti-shake technology, and intelligent functions.
With the discontinuation of the FCB-EV7520 series, the FCB-EV9520L has become an ideal alternative. Its emergence not only meets the industry’s demand for high-performance visual solutions, but also reduces users’ replacement costs through seamless upgrades, achieving a perfect balance between technology and economy.
Today, with the rapid development of security monitoring technology, the FCB-EV9520L is taking over the baton from the FCB-EV7520 series with its powerful performance advantages and continuing to lead the industry forward.
