Today, with the rapid development of video technology, simple high definition can no longer meet the demands of professional scenarios. The combination of the SONY FCB-ER9500 integrated camera module and the 4KP60 HDMI interface board has pushed video capture to a new height: 4K ultra-high-definition images at 60 frames per second are quietly changing the visual experience landscape in multiple fields, from high-end video conferencing to drone aerial photography.
I. Golden Combination: The Technical Foundation of Strong Alliances

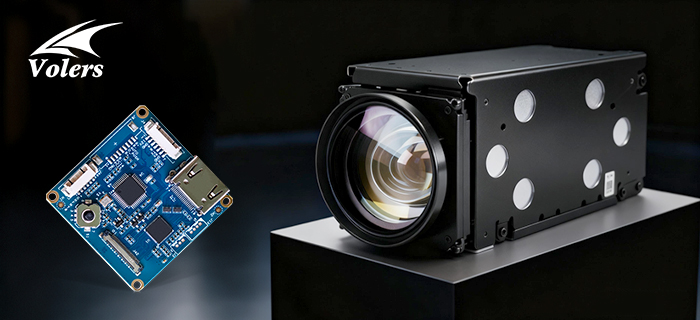

Xuanzhan Technology, the official authorized distributor of SONY (China), has successfully combined the SONY FCB-ER9500 with the 4KP60 HDMI interface board, building on the perfect integration of these two advanced technologies. As the core acquisition terminal, the SONY FCB-ER9500 is equipped with a 1/1.8-inch large sensor STARVIS 2 CMOS sensor, with an effective pixel count of 8.4 million and support for a true 4K resolution of 3840×2160.
Even more outstanding is that it can achieve a high frame rate of 60 frames per second at 4K resolution, and the smoothness of the picture is exactly double that of the conventional 30fps.
The 4KP60 HDMI interface board specially designed for SONY FCB-ER9500 is directly connected to the camera module via an LVDS cable, enabling plug-and-play high frame rate video signal transmission. This combination ensures the complete chain optimization of ultra-high-definition video from collection to output, with both dynamic range and color reproduction reaching professional-level standards.
Ii. Why is 60 frames So Important? A leap in smoothness experience
The moving images are clearer and more stable
When shooting fast-moving objects, the advantage of high frame rate is particularly obvious. Traditional 30-frame videos are prone to trailing and blurring when capturing high-speed scenes, while 60-frame technology can effectively solve this problem.
For scenarios such as drone aerial photography and monitoring of fast-moving targets, the clarity of each frame is of vital importance.
A visual experience closer to the human eye
60-frame images are closer to the visual perception in real life because when the human eye observes fast-moving objects, it is actually constantly receiving and processing a large amount of image information. High frame rates not only bring about an improvement in technical parameters, but also a qualitative leap in viewing comfort.
Iii. four core technological advantages
1. Ultra-high-definition picture quality with detailed presentation
The 4K ultra-high-definition resolution (3840×2160 pixels) of the FCB-ER9500 is four times that of the high-definition resolution, offering higher pixel density and richer color gradation. Whether it is the subtle facial expressions of the participants in a video conference or the key details in security monitoring, they can all be presented precisely.
Outstanding low-light performance
The FCB-ER9500 is equipped with a STARVIS2 CMOS sensor, featuring outstanding high-sensitivity performance. It can still output color images even in a low light of 0.009Lx, with a minimum light of 0.00008Lx. This feature ensures that clear and usable images can still be obtained in complex lighting environments.
Powerful anti-shake function
By significantly improving blur suppression and image stabilization, highly accurate videos can be captured even in harsh environments with intense vibrations, reducing blurring.
It offers two anti-shake modes: “Super” and “Super+”. Even in scenes with severe shaking, it can ensure the stability and clarity of the video picture.
Flexible control and integration
The 4KP60 HDMI encoding control board supports 485 control and OSD menu. Users can achieve functions such as zoom, focus, gain, and white balance through buttons. Supports RS232 or TTL232 communication (optional), facilitating integration into various professional systems.
Iv. Multi-field Applications
High-end video conferencing: In multinational enterprises or remote collaboration scenarios, the FCB-ER9500, when paired with a 4KP60 HDMI interface board, can provide a highly immersive visual experience. The 4K ultra-high-definition picture quality ensures that participants can clearly see each other’s facial expressions and movements, while the 60 frames per second high frame rate makes dynamic images more smooth and natural.
Drone aerial photography: For drone applications, a high frame rate is the key to ensuring clear and stable aerial photography images. The 4KP60 HDMI interface board can transmit ultra-high-definition video signals in real time to the ground control station, helping operators monitor the shooting images more clearly. It performs particularly well in high-speed flight shooting scenarios.
Security monitoring: In the field of security, this combination can clearly capture fast-moving targets and enhance the reliability of the monitoring system. Whether it is license plate recognition or face recognition, the combination of high resolution and high frame rate has greatly improved the recognition accuracy.
Industrial inspection: In the field of industrial vision inspection, 4K ultra-high-definition picture quality can accurately capture surface defects of products, while high frame rates are suitable for quality monitoring on rapid production lines.
Summary
Details determine success or failure, and smoothness is increasingly important. The combination of SONY FCB-ER9500 and 4KP60 HDMI interface board is the best interpretation of this concept. Whether it is used to enhance the communication efficiency of enterprises or ensure the security of critical scenarios, this combination can provide an outstanding video experience, allowing every detail to be clearly seen and every dynamic moment to be smooth and natural.
