In scenarios such as drone aerial photography, telemedicine, high-end video conferencing, and industrial inspection, 4K ultra-high-definition picture quality and 60 frames per second smoothness have become essential needs in the industry.

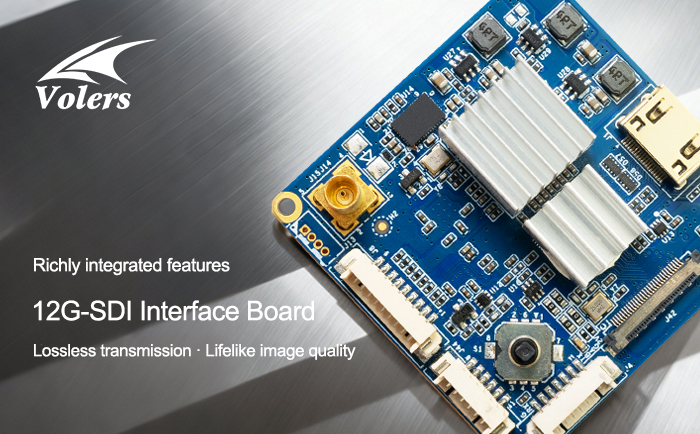

Xuanzhan Technology, a provider of high-definition video secondary development solutions, has independently developed a 12G-SDI interface board. With core advantages such as a single-cable 12Gbps high-speed transmission rate, lossless picture quality, and multi-protocol compatibility, it offers industry users a dual-core-driven solution.
I. What is 12G-SDI?
12G-SDI is a high-bandwidth serial digital interface standard that supports a data transmission rate of up to 12Gbps and can lossless transmit video signals at 60 frames per second at 4K resolution. Compared with the traditional 6G-SDI or 3G-SDI, the transmission rate of 12G-SDI has increased several times, completely solving the bandwidth bottleneck problem of 4K ultra-high-definition video transmission. Moreover, it features strong anti-interference ability and stable and reliable transmission, making it particularly suitable for long-distance transmission requirements.
To understand the differences among HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI, the key lies in comprehending their continuously upgraded transmission capabilities and the corresponding application scenarios.
Feature dimensions: HD-SDI 3G-SDI 6G-SDI 12G-SDI
Transmission rate
1.485 Gbps, 2.97 Gbps, 6 Gbps, 12 Gbps
The highest supported resolution and frame rate
720p, 1080i 1080p/60fps 4K (2160p)/30fps
The main application scenarios of 4K (2160p)/60fps
High-definition broadcasting and television, early security monitoring professional broadcasting and television production (meeting 1080p/60), medical imaging, 4K program production for video conferences, 4K30fps content recording and transmission, high-end 4K live streaming (such as sports events), large-scale studios, digital films
Ii. Core Advantages of the 12G-SDI interface Board
1. Lossless transmission, realistic picture quality
The most prominent feature of the 12G-SDI interface board developed by Xuanzhan Technology lies in its lossless transmission capability. It can transmit 4K ultra-high-definition video signals to display devices without compression, maintaining every detail of the picture. This feature is particularly important for fields with extremely high requirements for image quality, such as medical imaging and industrial inspection.
2. High bandwidth, low latency
With a high transmission rate of 12Gbps, the 12G-SDI interface board can easily handle the video transmission requirements of 4K@60fps, and even reserves space for higher frame rates and resolutions. Meanwhile, its low latency feature ensures the real-time performance of video transmission, providing key technical support for application scenarios such as unmanned aerial vehicles and real-time monitoring.
3. Strong compatibility
The 12G-SDI interface board not only supports the latest 4K 60fps video transmission, but also is backward compatible with standards such as 6G-SDI and 3G-SDI, effectively protecting the existing status of users and reducing the cost of system upgrades.
4. Rich functional integration
The 12G-SDI interface board has the ability to synchronously output dual video signals of 12G-SDI and 4K HDMI. Moreover, it integrates a variety of practical functions, including 485 control, RS232 and TTL232 (optional) OSD menu, power-off memory and preset position cruise (optional), etc. Users can bring up the OSD menu through external buttons. Conveniently set and save various parameters of the camera module.
Iii. Application Scenario Presentation
1. The field of unmanned aerial vehicles
In the unmanned aerial vehicle (UAV) industry, the combination of a 12G-SDI interface board and a 4KP60 camera module can achieve real-time transmission of 4K60 frames of ultra-high-definition video. Its high bandwidth and low latency features can ensure that the drone maintains the stability and clarity of video transmission during long-distance flights in complex environments.
2. Security monitoring
In the field of security, the 12G-SDI interface board provides strong technical support for high-definition monitoring systems. By integrating AI algorithms, it can achieve functions such as target detection, behavior analysis, and intelligent tracking, significantly enhancing the intelligence level of security systems.
3. Medical imaging
In the medical field, the combination of 12G-SDI interface boards and 4K ultra-high-definition camera modules provides clear image support for precision surgeries. Doctors can perform precise operations based on high-quality video footage, significantly enhancing the success rate and safety of surgeries.
4. Industrial inspection
In the field of industrial inspection, the high resolution and lossless transmission characteristics of the 12G-SDI interface board can capture the subtle flaws in product details, providing a reliable basis for quality control.
Conclusion
The 12G-SDI interface board, as a key technology for 4K ultra-high-definition video transmission, is playing an irreplaceable role in fields such as unmanned aerial vehicles, security monitoring, medical imaging, and industrial inspection.
With the continuous maturation of technology and the expansion of application scenarios, it will continue to drive revolutionary progress in video transmission technology, bringing clearer, smoother and more stable visual experiences to all industries.
The 12G-SDI interface board is becoming a bridge connecting the present and the future with its outstanding performance and broad application prospects. It is not only a witness to technological progress but also an important force driving the development of the industry.
