In the field of equipment inspection, minor anomalies often conceal risks – a loose bolt on a transmission tower in a remote mountainous area may trigger a chain of failures; a hidden crack on the exterior wall of a hundred-meter building may threaten the safety of the structure; in underwater projects, a trace of leakage may indicate a structural crisis.
In the face of these crises, traditional inspection methods often fall short due to insufficient resolution, limited zoom capabilities, or poor environmental adaptability. The Sony FCB-ER9500 camera module, with its 4K/60P ultra-high-definition image quality, 25x lossless optical zoom, and full-scenario environmental adaptability, has become the “microscope” and “telescope” in the field of equipment inspection, redefining the standards for efficient and safe inspection.
I. Technical Gene: The Culmination of Sony’s Imaging Technology
As the flagship product of Sony’s FCB series, the FCB-ER9500’s “hardcore strength” stems from three major technological breakthroughs:
1. 4K/60P Ultra-Clear Dynamic Capture: A Visual Revolution with Four Times the Detail

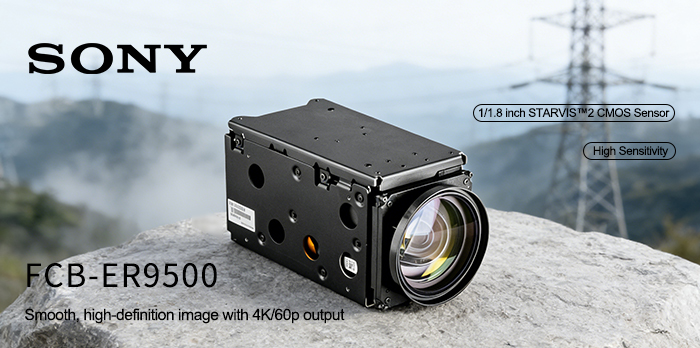

Equipped with a 1/1.8-inch STARVIS™ 2 CMOS sensor, the FCB-ER9500 supports smooth output at 4K (3840×2160) resolution with 60 frames per second. Compared to traditional 1080p devices, its pixel density is four times higher, enabling it to clearly capture minute displacements of bolt threads, millimeter-level cracks on concrete surfaces, and even the granular texture of metal rust. The high frame rate design (60fps) further eliminates motion blur of fast-moving objects, such as the vibration of blades during drone inspections and water flow disturbances when underwater robots move, ensuring every frame is crystal clear.
2. 25x Optical Zoom: Seamless Transition from Macro to Micro

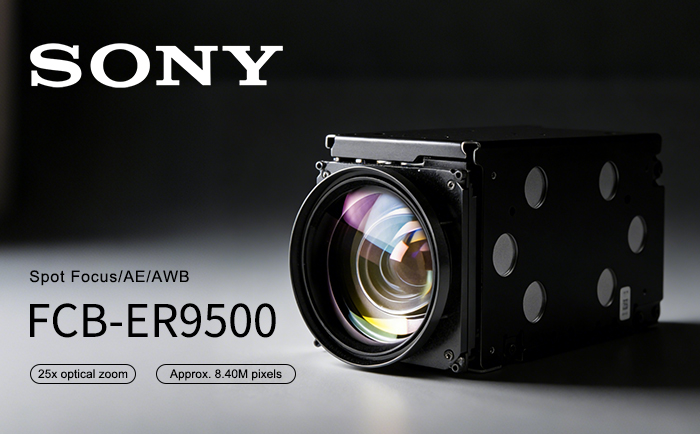

The FCB-ER9500’s 25x optical zoom (focal length range: 5.1mm – 127.5mm) covers the entire scene from wide-angle to telephoto:
Wide-angle end (6.5mm): It can capture the full view of a transmission tower or the facade of a building, quickly identifying abnormal areas.
Telephoto end (162.5mm): It can zoom in up to 25 times, clearly showing microscopic defects such as wear on bolt holes and porosity in steel structure welds.
Unlike digital zoom, optical zoom is achieved through physical movement of the lens, maintaining full image quality throughout. Combined with the three-zone auto focus (AF/AE/AWB) technology, even if the target is partially obscured or the light suddenly changes, the Sony FCB-ER9500 can quickly lock onto the focus, preventing the image from blurring.
3. All-scenario environmental adaptability: Conquering low light, backlight, and vibration
Low-light performance: In infrared sensing mode (ICR-ON), the Sony FCB-ER9500 can achieve a minimum illuminance of 0.028 lux (equivalent to moonlight conditions). Combined with Sony’s “ultra-low light noise reduction algorithm”, it can output clear color images at night, eliminating the “black and white noise storm” of traditional devices.
Backlight suppression: Wide dynamic range (WDR) technology can balance the brightness differences between strong light (such as midday sunlight) and shadows (such as the back of the device), avoiding overexposure of highlights or loss of detail in dark areas.
Enhanced anti-shake: With an integrated gyroscope and electronic image stabilization (EIS) dual-mode anti-shake, the Sony FCB-ER9500 can suppress image jitter caused by drone flight, high-altitude pan-tilt vibration, or underwater current impact, ensuring stability in long focal length shooting.
II. Scene Breakthrough: Accurate Solutions for Three High-Risk Inspection Scenarios
1. Remote Mountainous Areas: The “Efficiency Multiplier” for Drone Inspections
In scenarios such as forest fire prevention, power line inspection, and border surveillance, manual inspections face challenges of treacherous terrain and high costs. When integrated into drones, the FCB-ER9500 can achieve:
Long-distance high-definition capture: Capturing insulators on transmission towers from high altitudes, with 25x zoom for clear identification of cracks in porcelain bottles or foreign objects like bird nests;
Dynamic tracking: 60fps output combined with AI target tracking algorithms enables real-time locking of moving fault points (such as plastic bags falling and entangling lines);
Nighttime operations: With a super-low light sensitivity of 0.028Lx, it supports 24-hour inspections without the need for additional lighting equipment.
2. High-rise Buildings: A Safe Alternative to Ground-level Inspection
In scenarios such as exterior wall inspection of skyscrapers and structural steel inspection of bridges, traditional basket operations pose a risk of falling and are costly. The FCB-ER9500, through a combination of a pan-tilt unit and a coding control board, can achieve:
Remote ground-level observation: Inspectors can control the pan-tilt unit from inside the building or on the ground, with 25x zoom to penetrate distance obstacles and clearly display defects such as hollow tiles on the exterior walls and rust on the steel structure;
Real-time transmission and analysis: When paired with Xuanzhan Technology’s 4KP60 HDMI coding control board, 4K video can be transmitted in real-time to the monitoring center.
3. Underwater Engineering: “Transparency” Detection in the Dark
In scenarios such as underwater search and rescue, inspection of water conservancy facilities, and marine scientific research, the main obstacles are the attenuation of light and turbid water quality. The FCB-ER9500 achieves clear imaging through the following technological breakthroughs:
Infrared enhanced imaging: In infrared sensing mode, it can penetrate turbid water to capture traces such as cracks in underwater pipelines and seepage in dams;
Wide dynamic range anti-glare: For surface reflections or direct underwater lighting, WDR technology can balance brightness differences and prevent overexposure;
Deep water adaptability: After being encapsulated in a waterproof housing, it supports deployment on ROVs (remotely operated vehicles) or fixed monitoring stations.
Case: After the Three Gorges Dam adopted this solution for underwater inspection, it successfully located multiple tiny seepage points, providing crucial data support for preventive maintenance.
III. Customized Ecosystem: Empowering FCB-ER9500 with “Infinite Possibilities”
As an official authorized dealer of Sony (China) and a provider of secondary development solutions for high-definition video, Xuanzhan Technology has created a full-chain customized ecosystem for the FCB-ER9500:
Encoding Control Board Series:
4KP60 HDMI interface Board: Supports real-time output of 4K/60P video and is compatible with mainstream monitoring systems;

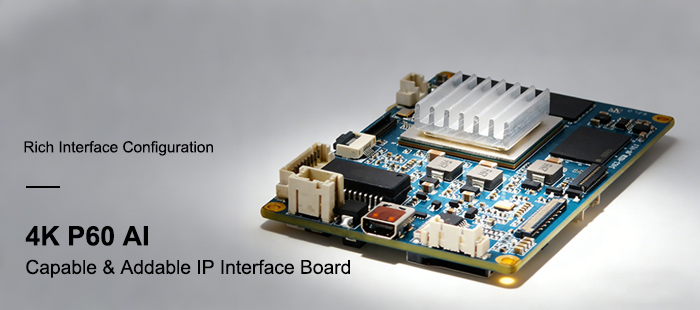

4KP60 AI Network interface Board: Equipped with basic AI functions, enabling intelligent features such as target detection and behavior analysis;
12G-SDI interface Board: Meets the requirements of long-distance, uncompressed video transmission in the broadcasting and television industry.
Industry Solutions: Offers “turnkey” services from hardware selection to software deployment for sectors such as power, construction, and water conservancy.
Summary
From a loose bolt to a dam leakage, from high-altitude cracks to deep-water hazards, Sony FCB-ER9500, with its three core capabilities of 4K ultra-high-definition image quality, lossless zoom, and full-scene adaptability, provides “microscope-level” accuracy and “telescope-level” efficiency for equipment inspection. Paired with Xuanzhan Technology’s customized ecosystem, it is not just a camera module but a complete intelligent inspection solution.
IV. Shenzhen Drone Exhibition, We Invite You to Experience On-site
The Sony new product FCB-ER9500, which made its grand debut at the 93rd China International Medical Equipment Fair (CMEF 2026), will be showcased at the 2026 International Low-altitude Economy and Unmanned Systems Expo and the 11th Shenzhen International Drone Exhibition along with Sony (China)’s official authorized distributor, Xuanzhan Technology. We sincerely invite you to visit the exhibition and experience it on-site.
Exhibition Information of Xuanzhan Technology
Exhibition Time: May 21st – 23rd
Exhibition Venue: Shenzhen Convention and Exhibition Center (Futian)
Xuanzhan Booth: 1C379, Hall 1
