Sony FCB camera block
In the field of professional camera modules, Sony’s FCB series has always been synonymous with quality and technology. Among them, FCB-ER9500 and FCB-EV9500L can be regarded as a pair of “twins”: they have almost exactly the same appearance dimensions (56×64×125 mm), but differ in their core functions and market positioning. The former is a 4K ultra-high-definition flagship that pursues picture quality, while the latter is a versatile all-HD model that focuses on flexibility and cost-effectiveness. For integrators and developers who are looking for “eyes” for medical, drone, security or industrial inspection projects, how to make a wise choice between these two becomes crucial.
It is worth noting that these two star modules will be showcased simultaneously with Sony (China) official authorized distributor Ruiloog Electronic at the 11th Shenzhen International UAV Expo (UASE2026) from May 21st to 23rd, 2026. Attendees will have the opportunity to conduct a direct comparison on-site. This time, based on official technical materials and industry application experience, we have prepared a detailed selection guide for you.
I. Parameter Comparison: Differentiation in Positioning Determines Performance Boundaries

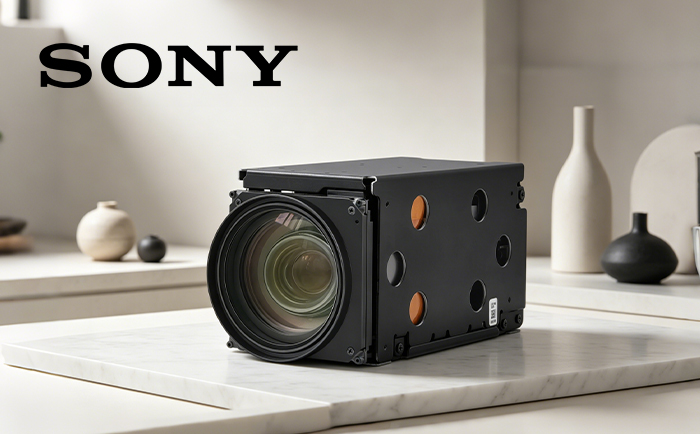

To understand the differences between the two, one must first clarify their core design goals. The FCB-ER9500 is designed to provide a top-level solution for scenarios with strict requirements for picture quality, while the FCB-EV9500L focuses on achieving greater adaptability and cost control within the mainstream high-definition specifications.
| Feature | FCB-ER9500 | FCB-EV9500L | Difference Interpretation |
| Core Positioning | 4K Ultra-HD Medical/High-End Inspection | Full-HD Security/Drone/Industrial Inspection | FCB-ER9500 is designed for high-precision scenarios |
| Image Sensor | 1/1.8″ STARVIS 2 CMOS (Approx. 8.4 MP) | 1/1.8″ STARVIS CMOS (Approx. 4.17 MP) | The effective pixel count of the FCB-ER9500 sensor is doubled |
| Maximum Resolution | 3840×2160 (4K) @ 60fps | 1920×1080 (FHD) @ 60fps | The pixel count of the FCB-ER9500 is four times that of the FCB-EV9500L |
| Video Output | HDMI (YUV 4:2:2 / RGB 4:4:4) | LVDS (YUV 4:2:2) | HDMI is suitable for direct connection to large screens, while LVDS is suitable for on-board integration |
| Optical Zoom | 25x Optical Zoom | 30x Enhanced Optical Zoom | FCB-EV9500L has a slight advantage in zoom ratio |
| Key Applications | Surgical Instruction, Endoscopy, Precision Inspection | Drone Inspection, Industrial Inspection, General Dome | Cameras Each has its own advantages |
II. Scenario-based Decision Making: Matching Requirements for the Best Outcome
Discussing technical parameters without considering the application context is meaningless. The correct choice begins with the precise definition of the core requirements of one’s own project.
Scene 1: Medical Surgery Demonstration and Endoscopy System
Preferred Recommendation: FCB-ER9500
Reason: Medical images cannot afford any ambiguity. The 4K/60fps combination of FCB-ER9500 can capture the microscopic structures in surgery with astonishing clarity and smoothness, such as fine blood vessels, nerve bundles, or tissue textures, providing an indispensable image foundation for remote teaching, surgical recording, and precise diagnosis. Its native HDMI RGB 4:4:4 uncompressed color ensures that the tissue colors are accurately reproduced, avoiding the risk of misjudgment due to color compression. Combined with the outstanding performance of STARVIS 2 in low-light environments, it is undoubtedly the best choice for high-end minimally invasive surgery and other rigorous medical scenarios. In contrast, FCB-EV9500L is more suitable for general ward monitoring with relatively less demanding image quality requirements.
Scene 2: Unmanned Aerial Vehicle Power Inspection and Vehicle-mounted Mobile Monitoring
Preferred Recommendation: FCB-EV9500L
Reason: In such dynamic and complex outdoor environments, the system’s integration flexibility, environmental adaptability, and overall cost are often more important than simply achieving the highest resolution. The LVDS output interface of FCB-EV9500L is a highly standardized integrated interface that is easy to interface with third-party encoding control boards, and can be flexibly converted into various signals such as SDI, HDMI, USB, IP network, MIPI, etc., significantly reducing the difficulty of system integration. Its 30x enhanced optical zoom can effectively bring the observation target closer, and the built-in strong light suppression and wide dynamic range functions can handle complex lighting conditions such as backlighting and low light conditions with ease. For most inspection and monitoring tasks, the 1080P full HD picture quality provided by it is already sufficient and is an extremely cost-effective and reliable choice. If the project clearly requires 4K ultra-high-definition aerial footage, then the FCB-ER9500 should be considered.
Scene 3: Industrial Machine Vision and Precise Inspection
High-precision measurement and defect detection: FCB-ER9500
Process monitoring and status identification: FCB-EV9500L
Reason: The demand in the industrial sector is clearly stratified. If your task involves measuring fine dimensions, detecting tiny scratches or impurities on the product surface, then the ultra-high pixel density brought by the 4K resolution of the FCB-ER9500 is the key to improving detection accuracy and reliability. On the other hand, if it is only used to monitor the operation status of the production line, identify the general classification of the workpieces, or read large characters, the FCB-EV9500L, while providing clear images, can significantly control the overall cost of the solution.
III. Expanding the Ecosystem: Rich Secondary Development Options
Choosing the camera module is not just about selecting the hardware; it’s also about choosing the development ecosystem behind it. Given the different interface characteristics of these two modules, there are mature complementary solutions available for selection in the market. Taking the solution provided by the official authorized dealer of Sony (China) as an example:

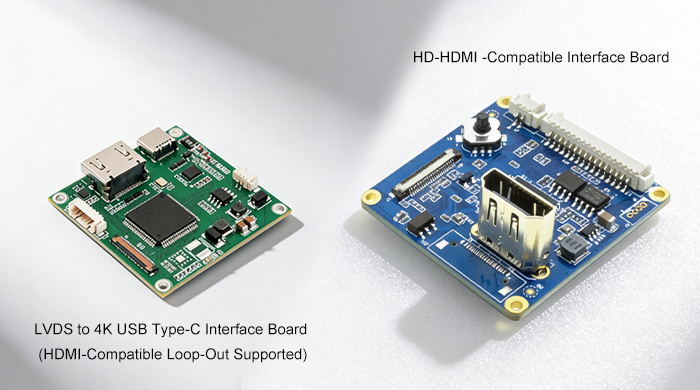

For FCB-ER9500 (HDMI output): It offers 4KP60 HDMI interface board, 12G-SDI interface board, 4KP60 AI network interface board, and 4K USB Type-C video capture board, aiming to leverage its 4K ultra-high-definition performance and connect various high-end display, recording and processing devices.
For FCB-EV9500L (with LVDS output): The solutions are more diverse, including 3G-SDI interface board, HD-HDMI interface board, MIPI/LVDS to IP network interface board, USB3.0 video capture board, USB TYPE-C video capture board, 3-in-1 SDI/HDMI/CVBS interface board, and LVDS to MIPI interface board. The core objective is to maximize the convenience of integration and the compatibility of interfaces, and expand its application boundaries in fields such as security, healthcare, unmanned aircraft, and robotics.
Conclusion
The FCB-ER9500 and FCB-EV9500L are not merely a “high-low” configuration relationship; rather, they are professional tools tailored by Sony for different market dimensions. For scenarios that aim for peak picture quality and meticulous details, the FCB-ER9500 should be chosen; for projects that emphasize flexible integration, cost-effectiveness, and wide adaptability, the FCB-EV9500L is the proven and wise choice.
If you wish to experience the differences in picture quality and features between these two modules firsthand, please come to the Shenzhen International UAV Expo 2026. By conducting a direct comparison on-site, you will be able to more intuitively identify the pair of “sharp eyes” that best suits your project.
Shenzhen International UAV Expo Information:
Exhibition Date: May 21st-23rd, 2026
Exhibition Venue: Shenzhen Convention and Exhibition Center (Futian)
Exhibition Booth: 1st Hall, 1C379
