Thanks to its native MIPI output, the FCB‑EV9500M has become a mainstream choice for drone, embedded vision, robotics and industrial inspection projects. For this reason, many users are seeking viable alternatives. As an authorized dealer of Sony China, Ruiloog Electronic offers the solution of FCB‑EV9500L paired with an LVDS to MIPI interface board. It delivers identical image quality and functionality, serving as a reliable drop‑in replacement for the FCB‑EV9500M.
I. Industry Pain Points: Project Risks Caused by Critical Component Shortages
In embedded vision, drone gimbals and mobile robot applications, most system‑on‑chip (SoC) mainboards adopt the MIPI‑CSI‑2 interface. The Sony FCB‑EV9500M, with native MIPI output, connects directly to mainboards without extra signal conversion, making it widely adopted across many designs.
In real‑world project delivery, temporary shortages of critical components are a common industry reality. Most enterprises therefore prepare technical reserves and alternative selection plans in advance for key components. This mitigates project stagnation and delivery delays triggered by single‑model stock‑outs, ensuring smooth project execution, on‑schedule acceptance and stable business progress.

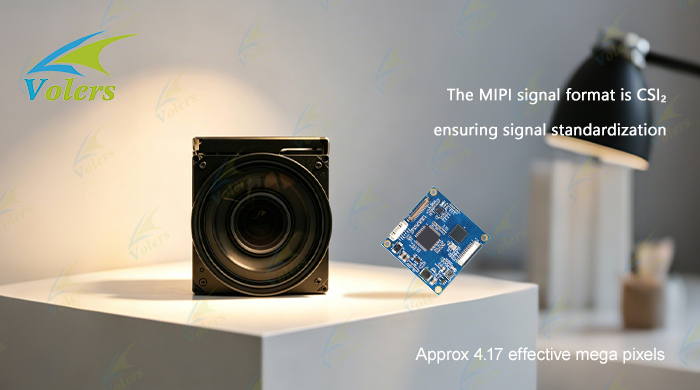

Ruiloog Electronic provides a field‑proven combination: FCB‑EV9500L + LVDS to MIPI interface board. It retains all imaging performance of the FCB‑EV9500M while eliminating risks associated with component shortages.
II. Same Core Hardware: Differences Between FCB‑EV9500L and FCB‑EV9500M
The FCB‑EV9500L and FCB‑EV9500M are twin models in Sony’s 9500 series, sharing highly consistent underlying hardware.
They utilize the same 1/1.8‑inch STARVIS 2 CMOS image sensor and identical ISP image‑processing chip.
They feature matching 30× enhanced optical zoom, autofocus response speed, super image stabilization, Wide Dynamic Range (WDR), low‑light imaging, color algorithms and exposure‑control logic.
Housing dimensions, mechanical structure and VISCA control protocol are fully identical.
The only difference lies in the video output interface:
FCB‑EV9500M: MIPI output
FCB‑EV9500L: LVDS output
In other words, once LVDS to MIPI signal conversion is implemented, the FCB‑EV9500L can fully replicate all operational performance of the FCB‑EV9500M.

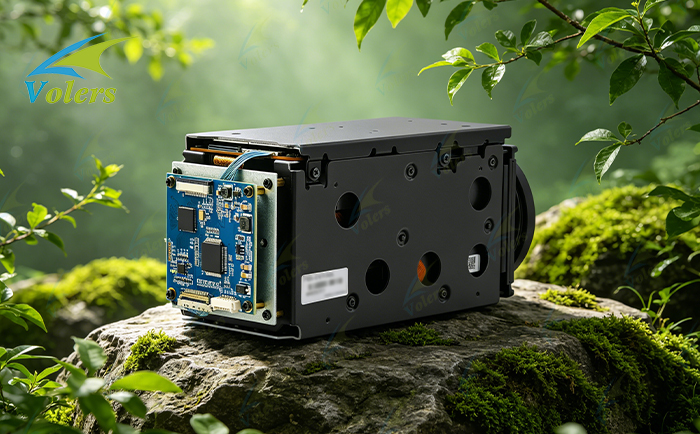

With 17‑year experience in secondary development for Sony zoom camera modules, Ruiloog Electronic has independently developed the LVDS to MIPI interface board. It converts LVDS signals losslessly into standard MIPI‑CSI‑2, forming a plug‑and‑play replacement hardware set.
III. Core Solution Advantages to Address Project Selection Concerns
1. Zero‑performance Degradation, Image Quality Matches Original MIPI Model
The FCB‑EV9500L + LVDS to MIPI interface board combination preserves all native capabilities of the FCB‑EV9500M, supporting 1080P@60fps high‑definition output, 30× enhanced optical zoom, super image stabilization, WDR, low‑light night‑vision and all other built‑in functions.
The LVDS to MIPI interface board performs pure hardware‑level signal conversion with no video compression, no image distortion and low latency. Imaging performance, dynamic response and parameter‑adjustment logic remain consistent with the FCB‑EV9500M, meeting stringent imaging requirements for drones and industrial inspection projects.
2. No Hardware or Software Modifications Required for Direct Drop‑in Replacement
The LVDS to MIPI interface board outputs standard MIPI‑CSI‑2 signals, which can connect directly to mainboards and mechanical assemblies originally designed for the FCB‑EV9500M.
No PCB hardware revisions or full‑system re‑validation are needed. Existing projects can adopt direct drop‑in replacement, saving substantial R&D and debugging time and avoiding extra costs caused by hardware redesign.
3. Dual‑path Planning to Mitigate Shortage Risks
To counter supply‑chain uncertainties, a dual‑path backup mechanism is recommended for the Sony FCB‑EV9500M. The primary path uses the MIPI output FCB‑EV9500M, while the backup path is the FCB‑EV9500L + LVDS to MIPI interface board. Both share identical sensors, ISP and optical performance, with unified control protocols and interchangeable interfaces. With this dual‑path technical reserve, even if the primary model faces stock‑outs or extended lead‑times, the backup solution can be activated rapidly to prevent project stagnation and safeguard customer acceptance and business progress.
IV. Wide Application Scenarios Covering All Original Use Cases
This replacement solution is fully compatible with all deployment scenarios of the FCB‑EV9500M:
Vehicle‑mounted PTZ and vehicle‑borne surveillance imaging equipment
Drone aerial photography and aerial‑inspection electro‑optical gimbals
Inspection robots and embedded vision terminals
Mainstream SoC platforms including Rockchip, Raspberry Pi and NVIDIA Jetson
Note: For drone‑mount applications, the lightweight‑version FCB‑EV9500L is optional to reduce overall system weight and improve flight endurance.
V. Conclusion
Thanks to identical imaging quality, lossless signal conversion, hardware‑software compatibility and stable supply, the FCB‑EV9500L + LVDS to MIPI interface board delivers a cost‑effective, field‑proven replacement for the FCB‑EV9500M.
As an official authorized dealer of Sony China, Ruiloog Electronic has 17‑year expertise in secondary development for Sony FCB zoom camera modules. We supply full‑range Sony FCB zoom camera modules in stock. To resolve industry selection pain points, we also develop a variety of interface boards. Our service scope covers pre‑sales solution customization, in‑sales technical debugging and after‑sales original‑manufacturer technical support, helping embedded, drone and industrial‑vision projects achieve efficient delivery.
FAQ
Q: Does the LVDS to MIPI interface board introduce additional video latency and affect real‑time AI recognition?
A: The LVDS to MIPI interface board conducts hardware‑level signal conversion with low conversion delay and no noticeable latency. It will not interfere with embedded AI real‑time detection and target‑tracking tasks, and meets high real‑time requirements for drone inspection and robot vision applications.
