Sony FCB camera block
In response to the core pain points across the full scenario of remote ultrasound implementation, Xuanzhan Technology, an officially authorized distributor of Sony (China) and a high-definition video secondary development solution provider, has launched an integrated solution featuring the Sony FCB-EV9520L HD zoom camera block paired with an LVDS or MIPI to IP Network interface board.
This solution addresses the various drawbacks of traditional remote ultrasound systems from three core dimensions: medical-grade imaging, long-distance transmission, and remote intelligent control. It is adaptable to all scenarios, including hospital mobile ultrasound equipment, remote consultation centers, and collaborative diagnosis within medical alliances, making it a preferred supporting solution for the current smart upgrade of remote ultrasound.
Sony FCB-EV9520L
I. Four Core Pain Points of Traditional Remote Ultrasound
Currently, conventional remote ultrasound visual acquisition solutions on the market mostly use ordinary consumer-grade cameras. Their hardware performance falls significantly short of medical diagnostic requirements, resulting in obvious technical deficiencies. The specific pain points are concentrated in four main areas:
1. Weak Image Quality, Unable to Support Professional Diagnosis
Ordinary camera sensors have poor photosensitivity. Ultrasound examination rooms are often in low-light environments, causing devices to generate significant noise.
2. Poor Dynamic Adaptability, Distorted Images in Bright/Dark Scenes
Conventional devices lack sufficient wide dynamic range. When faced with lighting changes in the exam room, strong screen backlighting, or changing ambient light conditions, they are prone to overexposure, underexposed dark areas, and color shifts. This fails to truly reproduce the original image on the ultrasound monitor.
3. Complex and Messy Wiring, Poor Adaptation for Mobile Ultrasound Equipment
Traditional transmission solutions require multiple cables for power, video, and control signals, leading to complex and tangled wiring. Clinical ultrasound devices are often designed with movable wheels, and frequent repositioning easily results in cable pulling, tangling, or disconnection, affecting normal equipment operation.
4. Low Precision Remote Control, Incomplete Feature Adaptation
Older camera control protocols are outdated, often supporting only basic zoom functions. They cannot achieve fine adjustments such as focus micro-adjustment, precise white balance adaptation, or exposure control.
II. Core Solution:

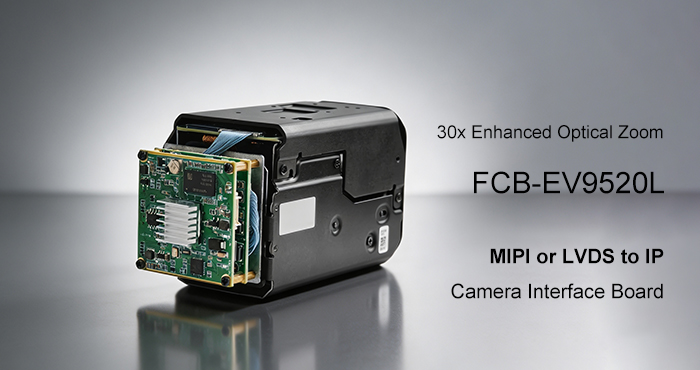

FCB-EV9520L + LVDS or MIPI to IP Network interface board
Addressing the industry pain points mentioned above, this solution leverages Sony’s industrial-grade medical imaging hardware advantages and pairs them with a self-developed LVDS or MIPI to IP Network interface board. This creates a closed-loop solution encompassing “HD imaging + long-distance transmission + intelligent control,” precisely adapting to the full diagnostic scenarios of remote ultrasound and comprehensively resolving industry technical challenges.
1. Sony FCB-EV9520L: Building the Foundation for Medical-Grade HD Imaging
The FCB-EV9520L is Sony’s next-generation HD auto-focus camera module. Equipped with a 1/2.8-inch STARVIS 2 CMOS image sensor, it offers three core advantages: starlight-level low-light performance, wide dynamic range, and high-magnification optical zoom. It perfectly adapts to the specific imaging environment of ultrasound exam rooms, solving image quality pain points at the source.
(1) 0.009lx Ultra-Low Illumination Imaging, Clear and Noise-Free in Dark Conditions:
Under normal low-light conditions in ultrasound exam rooms (ICR off, 1/30s shutter, high sensitivity mode on), the Sony FCB-EV9520L achieves clear imaging at 0.009lx ultra-low illumination, with a minimum illumination down to 0.00008lx. This thoroughly resolves issues of dark noise and blurred images, clearly presenting probe operation details and ultrasound image textures.
(2) 30x Optical Zoom, Free Switching Between Full and Detail Views:
The Sony FCB-EV9520L features 30x optical zoom. It can capture a wide-angle view of the doctor’s overall operation process or quickly zoom in for close-ups of the probe scanning points and fine details on the monitor. This enables a dual-mode coverage of “panoramic monitoring + detail close-up,” allowing remote experts to gain an immersive understanding of the entire diagnosis and treatment process.
(3) 130dB Ultra-Wide Dynamic Range, Anti-Reflection and Distortion-Free:
The high 130dB wide dynamic range effectively improves handling of strong reflections from the ultrasound monitor and screen flicker, accurately reproducing true colors and image details. It solves image distortion caused by excessive contrast between bright and dark areas, fully meeting medical-grade image acquisition standards.
(4) Industrial-Grade Stability, Adapted for Medical Scenarios:
Supports 1080p60 high-definition output for smooth, artifact-free images. It features multiple image optimization functions including Super Image Stabilization, defog, 3D+2D noise reduction, and intelligent exposure compensation. It also supports multi-scene white balance adaptation to suit the complex lighting environments of exam rooms, ensuring reliable long-term operation. [1]
2. LVDS or MIPI to IP Network interface board: Breaking Through Core Transmission and Control Barriers
As the central hub of the solution, the self-developed LVDS or MIPI to IP Network interface board perfectly interfaces with the LVDS signal output of the FCB-EV9520L camera block. It integrates video signal encoding/decoding conversion, network transmission, and remote control, comprehensively resolving the shortcomings of traditional transmission and control methods.
(1) Long-Distance Transmission, Breaking Distance Limits:
The board encapsulates the FCB-EV9520L’s LVDS HD signal into standard IP network streams such as RTSP, RTMP, and ONVIF. Leveraging existing hospital LANs or dedicated networks, transmission distances exceed 100-meter limitations. This enables cross-campus and cross-city remote image transmission without signal attenuation or quality compression loss.
(2) Simplified Wiring for Mobile Devices:
A single power-over-Ethernet cable simultaneously handles video transmission, signal control, and device power supply, eliminating the cumbersome multi-cable wiring of traditional methods.
(3) Simultaneous Multi-Terminal Distribution for Diverse Scenarios:
The IP network stream from the LVDS or MIPI to IP Network interface board supports multi-port simultaneous distribution. A single diagnostic image can be pushed synchronously to remote expert PCs, consultation displays, mobile tablets, and other terminals. This simultaneously meets the needs of remote diagnosis, multi-party control, teaching review, and skills training.
(4) Full-Feature Remote Control:
Supports network serial port transparent transmission and the standard VISCA protocol. Staff can remotely control all camera parameters in real-time via web pages or client software, including zoom, focus, white balance, exposure, and image stabilization. The control response is fast and precise, fundamentally solving the issues of lag and incomplete functionality found in traditional solutions.
III. Overall Implementation Value of the Solution
The complete Sony FCB-EV9520L + LVDS or MIPI to IP Network interface board solution, through the integrated hardware-software combination of a “high-end imaging camera block + intelligent network encoding board,” fundamentally resolves the four core pain points of remote ultrasound: poor image quality, limited transmission distance, inconvenient control, and difficult integration. It preserves the medical-grade HD image quality advantages of Sony’s industrial imaging while breaking through the scenario limitations of traditional short-distance transmission through network-based transformation.
FCB-EV9520L
IV. Common FAQ
Q: What are the core differentiated advantages of this solution compared to ordinary network cameras for remote ultrasound?
A: Ordinary consumer network cameras are typically fixed-focus, suffer from severe image compression, exhibit high noise in low-light conditions, and have weak wide dynamic range performance. They cannot withstand reflection interference from ultrasound monitors, and their color reproduction and image clarity fail to meet medical diagnostic standards. In contrast, the FCB-EV9520L is an industrial/medical-grade zoom camera block featuring a STARVIS 2 sensor, offering 30x optical zoom, 130dB ultra-wide dynamic range, and 0.009lx ultra-low illumination imaging. Its capability in capturing image details, low-light performance, and anti-interference far exceeds that of ordinary cameras. Paired with the LVDS or MIPI to IP Network interface board, it enables network transmission and remote control via VISCA functions, fully meeting the high standards required for remote ultrasound examination, quality control, and teaching.
Q: Besides remote ultrasound, what other smart healthcare scenarios can this solution adapt to?
A: The solution offers extremely high versatility. In addition to core remote ultrasound diagnosis, it can be widely applied in various smart healthcare scenarios such as remote observation, surgical demonstration and remote guidance, ward remote monitoring, medical skills training, and remote quality control within medical alliances. It is also adaptable to high-definition visualization scenarios in industrial inspection, intelligent patrol, and low-altitude drone observation, offering excellent cost-effectiveness and high scenario adaptability.
