Sony FCB camera block
The Sony FCB-EV9500M, leveraging a 1/1.8-inch large-format STARVIS high-sensitivity sensor, 30x enhanced optical zoom, MIPI output, and Super Image Stabilization, can be directly integrated with mainstream SoC platforms such as Rockchip, NVIDIA Jetson, and Raspberry Pi. With its stable imaging performance and mature VISCA control protocol, it has become a core preferred hardware solution for embedded high-definition vision projects.
For critical components in large-scale engineering projects, a common hardware selection strategy is to adopt “two options for core components” to mitigate the risk of single-source supply. As an officially authorized distributor of Sony (China), Ruiloog Electronic, drawing on extensive implementation experience, has identified two FCB-EV9500M replacement solutions that require minimal structural modification and offer easy substitution, catering to different image quality requirements and budget scenarios, thereby comprehensively resolving supply substitution challenges.

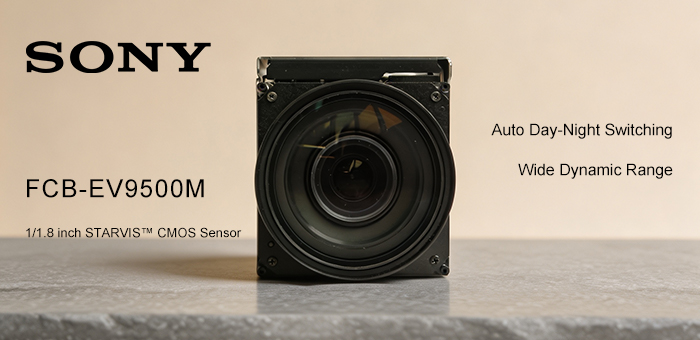

FCB-EV9500M
I. Core Hardware Advantages of the FCB-EV9500M that Cannot Be Replaced
To accurately select a replacement solution, it is essential to first clarify the core parameters of the FCB-EV9500M and its irreplaceable scenario value. These are the key standards that any candidate replacement must match. The three models in the Sony 9500 series share identical external dimensions, differing only in output interface and image quality parameters, each suited for different transmission scenarios: the FCB-EW9500H uses HDMI output, the FCB-EV9500L uses LVDS output, and the FCB-EV9500M uses MIPI output.
Core hardware specifications of the FCB-EV9500M:
1. Imaging Hardware: Equipped with a 1/1.8-inch STARVIS CMOS sensor with approximately 4.17 million effective pixels. The large-format sensor provides enhanced low-light sensitivity and dynamic range.
2. Zoom Lens: 30x enhanced optical zoom, focal length 6.5mm~162.5mm, aperture F1.6~F4.8, delivering clear imaging from wide-angle to telephoto without distortion.
3. Transmission Output: Supports MIPI output, offering 1080p60 high-definition lossless output, adaptable for direct connection to embedded mainboards.
4. Imaging Features: Standard features include Super/Super+ Super Image Stabilization, 130dB wide dynamic range, multi-level defog, ICR infrared sensitivity switching, and area automatic exposure/focus/white balance. [1]

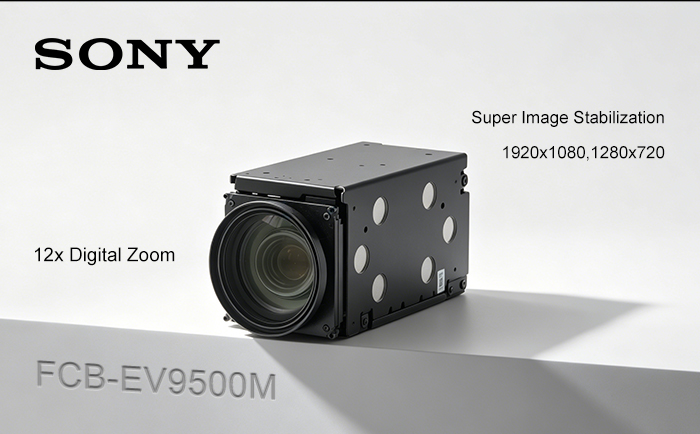

Sony FCB-EV9500M
Ordinary zoom camera blocks on the market cannot simultaneously satisfy the four key characteristics of “large-format sensor, 30x optical zoom, MIPI output, and image stabilization.” This is the core reason the FCB-EV9500M has long held a benchmark position in the high-end embedded vision sector.
II. Two Mature Solutions for Rapid Replacement of FCB-EV9500M
The two replacement solutions outlined below require no modification to the existing device PCB circuitry, mechanical structure, or original VISCA control code. They achieve seamless substitution solely through camera block replacement plus dedicated adapter boards, minimizing project retrofit cycles and costs, and perfectly accommodating both existing project upgrades and new project mass production.
Solution 1: FCB-EV9500L + LVDS to MIPI Interface Board
This is a direct equivalent replacement solution, focused on replicating the original imaging performance and functional parameters.
The FCB-EV9500L and FCB-EV9500M belong to the same series of camera blocks. Their sensor specifications, zoom capability, image stabilization algorithm, imaging parameters, body dimensions, weight, and VISCA control protocol are completely identical. The only difference is the video output interface: the FCB-EV9500L outputs LVDS signals. By pairing it with Ruiloog Electronic’s self-developed LVDS to MIPI interface board, the LVDS high-definition signal can be losslessly converted to standard MIPI CSI-2 signals, perfectly compatible with the original mainboard and transmission link.
Core Advantages of This Solution: Imaging quality, functional logic, control commands, and structural dimensions are fully aligned with the original camera block. No software code or hardware structure modifications are required – it is plug-and-play. It perfectly suits applications such as drones, vehicle-mounted systems, and industrial inspection that demand high imaging consistency, thoroughly resolving project halts caused by supply shortages. Additionally, a weight-reduced version of the FCB-EV9500L is available for lightweight device load requirements.
Solution 2: FCB-ER9500 + 4K HDMI to MIPI Interface Board
This is a high-end upgrade replacement solution. While maintaining compatibility with the existing device architecture, it delivers a 4K ultra-high-definition image quality upgrade, suitable for mid-to-high-end projects with image quality iteration needs.
The FCB-ER9500 is Sony’s new-generation 4K industrial-grade zoom camera block. It retains the unified body structure of the FCB-9500 series and can directly fit existing device mounting positions. The hardware has been upgraded to a 1/1.8-inch STARVIS 2 next-generation high-sensitivity sensor, retaining all core functions including Super Image Stabilization, wide dynamic range, defog, area automatic exposure/focus/white balance, and infrared sensitivity. It also features 25x optical zoom, supports 4K@60P ultra-high-definition output, and is downward compatible with 1080p60 HD mode. Paired with a dedicated 4K HDMI to MIPI interfac board, it seamlessly adapts to original MIPI receiving devices. [2]
Core Advantages of This Solution: VISCA control commands are fully compatible, requiring no secondary software development. While preserving all original device functions, it achieves a leap in image quality, with significantly improved detail expression and low-light imaging capability. It suits high-end inspection, smart transportation, and high-precision industrial detection scenarios that demand stringent image quality. A weight-reduced version of the FCB-ER9500 is also available.

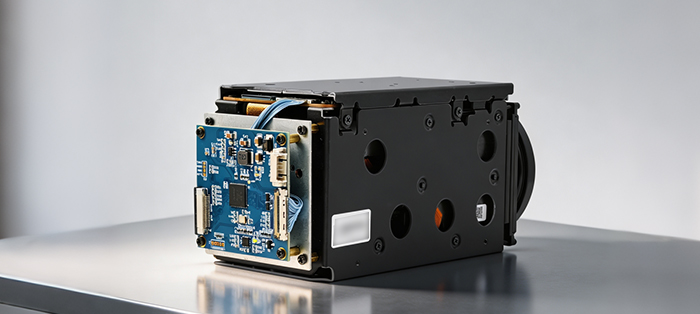

FCB-ER9500 + 4K HDMI to MIPI Interface Board
III. Important Notes on Solution Adaptation
1. The accompanying LVDS to MIPI and 4K HDMI to MIPI interface boards are pure hardware conversion devices, responsible solely for video signal format conversion. They do not include universal driver software. As SoC main controller chips from various vendors (Rockchip, NVIDIA, Allwinner, etc.) have mutually incompatible drivers, it is impossible to adapt to multi-category, small-batch driver development needs. Customers can develop corresponding drivers themselves based on their specific main controller model.
2. Both replacement camera blocks offer dedicated weight-reduced versions, which reduce body weight through structural optimization, specifically tailored for applications with strict load and weight parameters, such as drones and lightweight gimbals.
IV. FAQ
Q: Why do the interface boards provide only hardware and not universal driver software?
A: The embedded market currently features a wide variety of main controller chips. The underlying drivers and adaptation programs for different brands and models of SoC main controllers are completely independent, and no universal driver software exists. To ensure adaptation stability, the solution provides only standardized hardware conversion devices. Customers can develop dedicated drivers based on their own main controller models, maximizing adaptation to various customized project scenarios.
Q: Will the upgraded FCB-ER9500 solution cause compatibility issues in older projects?
A: There are basically no compatibility issues. The FCB-ER9500 inherits the unified appearance structure and standard VISCA control protocol of the Sony FCB-9500 series, so software commands are interchangeable with the original camera block, requiring no changes to control code. It also supports dual-resolution output of 4K and 1080p, perfectly adapting to the 1080p display links of older devices, balancing both compatibility and image quality upgrade needs.
