Sony FCB camera block

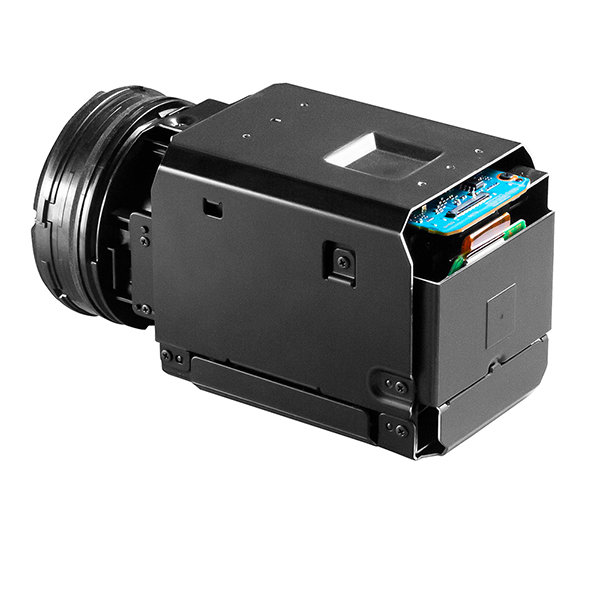

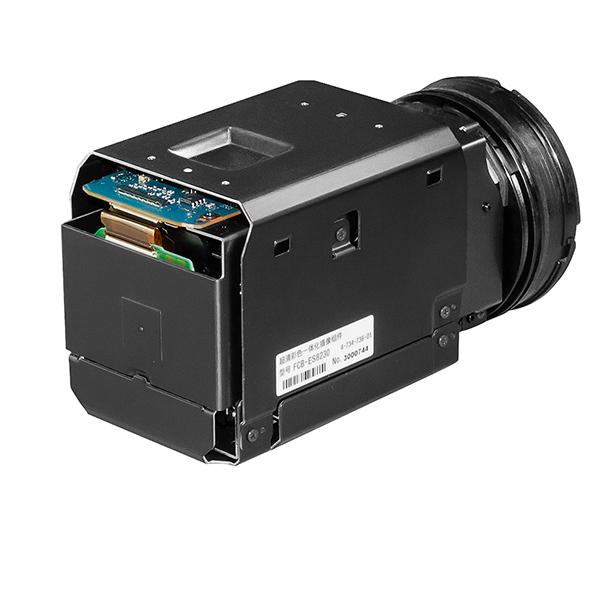

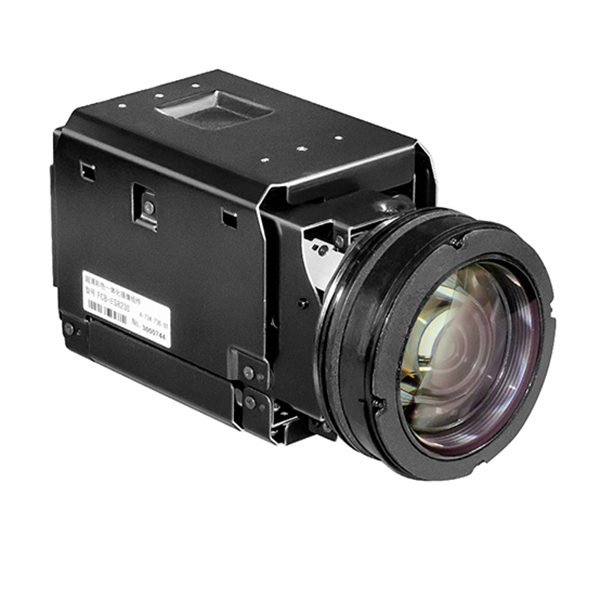

Sony FCB-ES8230 is the latest generation of SONY's 4K ultra HD digital integrated camera with large target surface. It has advanced electronic fog penetration and wide dynamic functions with high dynamics, which can cope with complex external environment. Has high window inhibition function at the same time, because of the FCB-ES8230 choose 1 inch CMOS, oversized photosensitive area, can indoors under low illumination environment bearing less noise, more vivid colors, more have administrative levels feeling of the picture, with 4k of broadcast quality image is high-end conference cameras, medical equipment required for 4 k high-definition camera will choose the product.
SONY FCB-ES8230 Mail Features:
Capture high quality, crisp, clear 4K @30fps images The high-performance 1-type Exmor R CMOS image sensor achieves superb 4K (QFHD) picture quality. Using the latest Sony sensor technology combined with the best optical zoom lens, the FCB-ES8230 produces high quality images in excellent detail and clarity. Fast, bright lens with rapid 12x optical zoom The high quality lens offers a bright F2.8 maximum aperture and 12x optical zoom range. Fast zoom operation (from wide end to tele) is ideal for smooth, rapid transitions from wide area coverage to detailed close ups ensuring critical detail is not missed. Get a steadier picture with optical image stabilisation In a first for FCB technology and inherited from our world leading professional camcorder technology; the FCB-ES8230 comes with a built-in optical image stabilisation capability, countering the effects of blurred, shaky images caused by low-frequency vibration and movement. Advanced 2D/3D Noise Reduction Advanced noise reduction technology filters noise from the image for clearer results, especially in low light conditions. Noise reduction can be selected from six steps to suit a wide range of operating environments. Clear vision round the clock with Day/Night Benefit from optimized picture quality in changing light conditions – a frequent challenge in round-the-clock operations. In high sensitivity mode the camera can operate effectively in lighting levels as low as 2lx (50IRE, ICR off, Iris Open, ACG Max (36db, High sensitivity off)) and 0.5 lx (50IRE, ICR off, ACG Max (36db, High sensitivity on)). See more clearly with Visibility Enhancer and De-fog Picture quality is enhanced dynamically and adaptively on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range. There’s also a de-fog feature that allows clearer viewing in foggy or misty scenes. Auto ICR (Auto IR-cut Filter Removal) In low light conditions the camera automatically switches from day to night mode, removing the IR-cut filter to boost sensitivity for clear pictures in near-darkness. Wide range of features for versatile operation Versatile operation is ensured by a wide range of functions and adjustments, including: White Balance modes; Picture effects (E-Flip, Black & White, Mirror Image, Colour Enhancement, Gamma); Privacy Zone Masking; Picture freeze; Shutter Priority; Iris Priority; Slow AE response etc. SONY FCB-ES8230 Applications: Broadcast Conference medical device SurveillanceProduct Specs
| Product number | FCB-ES8230&FCB-CS8230 |
| Image Sensor | 1/1 Exmor R COMS |
| Image sensor (effective number of pixels) | 20.50 million pixels |
| signal system | 2106P29.97 2160P25 2160P23.98 1080P59.94 1080P50 1080I59.94 1080I50 1080P29.97 1080P25 1080P23.98 720P59.94 720P50 |
| Lens | 12x optical zoom |
| Digital zoom | 12 times (360 times after using optical zoom) |
| Super resolution zoom | 4K 1.67 1080P2.0 times |
| lens parameters | f=3.9mm—46.8mm F1.8-2.0 |
| Minimum object distance | 10mm—2100mm |
| Synchronization system | Built in |
| Signal to noise ratio | More than 50dB |
| video output(HD) | HDMI |
| Camera component control interface | VISCA,baud rate: 9600/19200/38400bps/115200bps |
| Shutter speed | 1/1 second to 1/10,000 second, 22 steps |
| ATW | Automatic/Manual/indoor/outdoor/outdoor automatic/One-click trigger/sodium lamp mode |
| Gain | Auto/Manual (0 steps to 28 steps, +2 steps / total 15 steps) Maximum gain limit (6 steps to 28 steps, +2 steps / total 12 steps) |
| Exposure control | Auto, Manual, Priority Mode (Shutter Priority & Aperture Priority), Brightness, EV Compensation, Slow AE |
| system focuses | one-click automatic/manual |
| BLC | Have |
| Aperture control16 levels | 16 levels |
| Wide-D | Have |
| Image stabilizer | Have |
| Defog Mode | Have |
| Automatic IRC | Have |
| zone shadowing | Have |
| Noise reduction | On/Off（1-5）step |
| High bright spot suppression | Have |
| Slow shutter | Have |
| Image effects | Have,Electronic flip, negative, black and white, mirroring |
| Image freeze | Have |
| Slow shutter | Have |
| Temperature reading | Have |
| ColorBoost | Have |
| Storage temperature | -20 ° C to 60 ° C |
| Storage humidity | 20%----95% |
| Operating temperature | -5°C to 60°C |
| Operating humidity | 20%---80% |
| Power requirement | 6.0V---12.0VDC |
| Power consumption | Power consumption 3.2 W (zoom/focus does not start) 4.0 W (zoom/focus start) |
| weight | 510g |
