| Image Device |
Progressive scan CMOS Image Sensor 1/2.3 type "Exmor R"
|
| Effective Pixels |
Approx. 8.93 Mega Pixels |
| Digital Zoom |
12x (144x with optical zoom) |
| Horizontal Viewing Angle |
73.4° (wide end) to 6.4° (tele end) |
| Minimum Object Distance |
10 mm (wide end) to 1,500 mm (tele end) (Default: 300 mm) |
| Sync System |
Internal |
| Electronic Shutter |
1/1 s to 1/10,000 s, 22 steps |
| White Balance |
Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor/Auto) |
| Gain |
Auto/Manual (0dB to 33dB) Max. Gain Limit (9dB to 33dB) |
| Wide Dynamic Range |
No |
| Backlight Compensation |
Yes |
| Privacy Zone Masking |
Yes |
| Character Generator |
20 characters/line, max. 11 lines |
| Focus System |
Auto (Sensitivity: normal, low), One-push AF, Manual, Interval AF, Zoom Trigger AF,Focus compensation in ICR on |
| Camera Operation / Zoom Switch |
12x (144x with optical zoom) |
| Picture Effects |
E-Flip, Black & White, Mirror image, Color enhancement |
| Exposure Control |
Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation |
| Lens Value |
12x optical zoom, f = 3.9 mm (wide) to 46.8 mm (tele), F1.8 to F2.0 |
| Minimum Illumination |
Color: 0.75 lx (F1.8, AGC on, 1/30 s) High Sensitivity Mode - Color: 3 lx (F1.8, AGC on, 1/30 s) Normal Mode |
| Camera Control Interface |
VISCA (CMOS 3.1 V level) Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, 57.6 Kbps, 115.2 Kbps, Stop bit: 1 bit |
| Dimensions (W x H x D) |
60mm x 64mm x 105mm |
| Weight |
385 grams |
| Operating Temperature |
-5 to +60 (°C) / 20 (%) to 80 (%) Absolute Humidity: 36 (g/m3) |
| Storage Temperature |
-20 to +60 (°C) / 20 (%) to 95 (%) Absolute Humidity: 36 (g/m3) |
| Operating Humidity |
20% to 80% Absolute humidity : 36[g/m3] |
| Storage Humidity |
20% to 95% Absolute humidity : 36[g/m3] |
| Power Consumption |
2.8W (Typ. DC IN 6 - 12V, steady state) |
| Power Requirements |
6.0V ~ 12.0V DC |

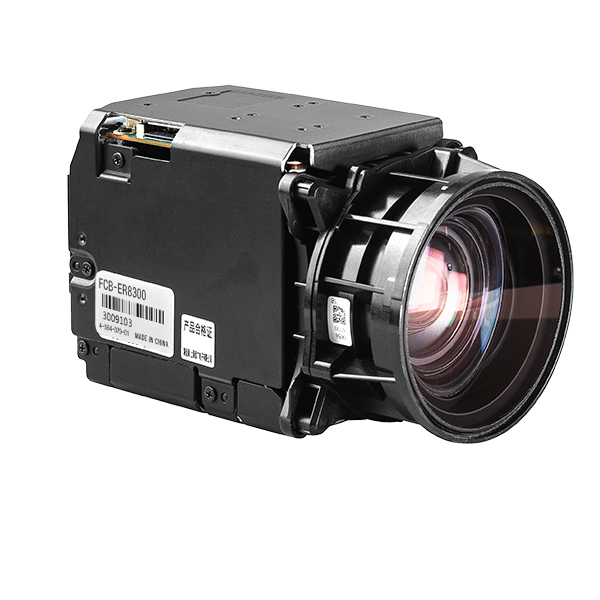

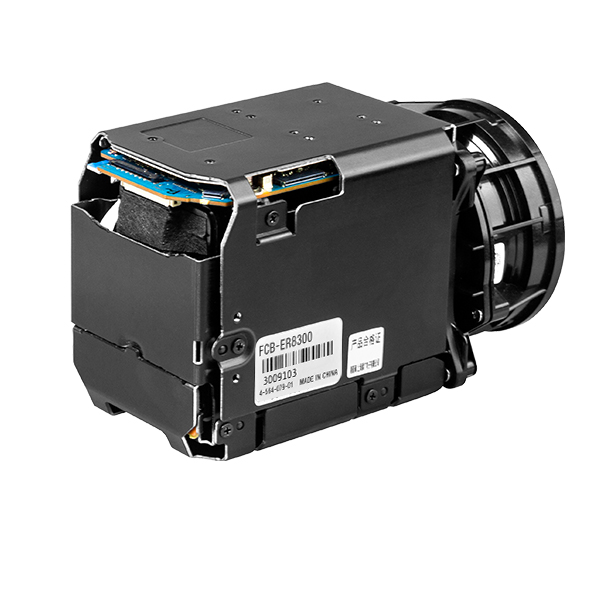

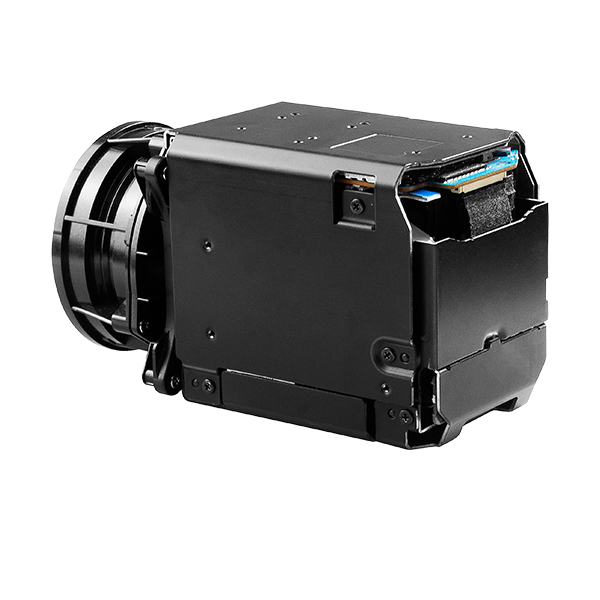

Sony FCB camera block
