| Product number |
FCB-EX995EP
|
| Camera assembly |
|
| Image Sensor |
Types of |
1/4 ” EXview HAD CCD |
| Effective number of pixels |
About 0.44 million pixels |
|
|
| Lens |
28x optical zoom |
| f=3.5mm ( wide-angle end) to 98mm ( distal) |
| F1.35 to F3.7 |
| Digital zoom |
12 times |
| Viewing angle ( horizontal ) |
1080p mode |
– |
| 720p mode |
55.8° ( wide-angle end) to 2.1° ( distal) |
| Minimum object distance |
10mm (wide-angle end) to 1500mm (distal) ( default : 300mm) |
| Synchronization system |
Internal/External(V-lock) |
| Minimum illumination (50%) |
High sensitivity mode |
—— |
| Normal mode |
0.65 lx , （F1.35 50IRE） |
| Recommended illumination |
100 lx to 100,000 lx |
| Signal to noise ratio |
50dB or more |
| signal system |
HD |
720p/59.94, 720p/50, 720p/29.97, 720p/25 |
| SD |
NTSC, PAL |
| Video output |
Digital |
Y/Cb/Cr 4:2:2 (Conforms to ITU-R BT656) |
| Analog |
VBS 1.0Vp-p (Negative synchronization) Y/C |
| Camera component control interface |
VISCA ( CMOS 5V class) , baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps,115.0 Kbps stop bit: 1 bit |
| Electronic shutter speed |
1/1 to 1/10,000 seconds, a total of 22 steps |
| White balance |
Automatic, automatic tracking, indoor, outdoor, outdoor automatic, sodium lamp fixed / automatic, one-button, manual |
| Gain |
Auto/Manual/ Maximum gain limit ( -3 dB to +28 dB, +2 dB step / total 16 steps) |
| AE control |
Auto, manual, priority mode ( shutter priority and aperture priority) , brightness, EV compensation, slow AE |
| Focusing system |
Auto ( sensitivity: normal, low) , one-touch auto focus, manual, infinity, interval auto focus, zoom trigger auto focus, focus compensation when ICR mode is on |
| EV compensation |
Have |
| BLC |
Have |
| Aperture control |
16 steps |
| Preset |
6 positions |
| Camera component performance |
|
| Wide-D* |
Yes ( on/off) |
| Image stabilization |
Have |
| StableZoom |
Have |
| Digital output interface |
Have |
| Automatic ICR |
Have |
| Spherical privacy zone shadowing |
Have |
| Noise reduction |
Yes ( on/off ) ( level 5 to 1 off a total of 6 steps) |
| Dynamic frame measurement |
Have |
| Alarm function |
Have |
| Slow AE response |
Yes ( about 5 minutes) |
| Image effects |
Yes ( electronic flip, negative, blackboard, mirror, color enhancement) |
| Image freeze |
Have |
| Slow shutter |
Have |
| Temperature reading |
Have |
| Title display |
Yes ( 20 characters/line, up to 11 lines) |
| Camera component mode display |
Have |
| Button switching control |
Have |
| Camera component operation switching |
no |
| General specifications |
|
| Storage temperature |
-20 ° C to 60 ° C |
| Storage humidity |
20% to 95% |
| Operating temperature |
-5 ° C to 60 ° C |
| Operating humidity |
20% to 80% |
| Power requirement |
6.0 V to 12.0 V DC |
| Power consumption |
2.6 W ( zoom/focus does not start) , 5.0 W ( zoom/focus start) |
| weight |
230 g |
| Size ( width x height x depth) |
50.0 x 57.5 x 87.9 mm |

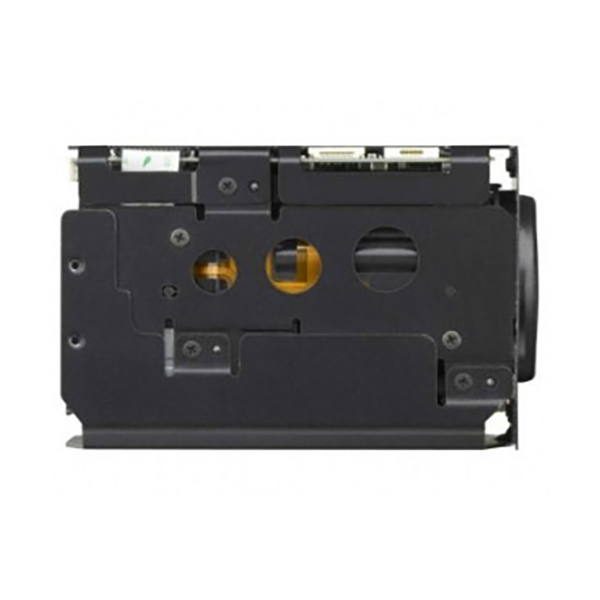

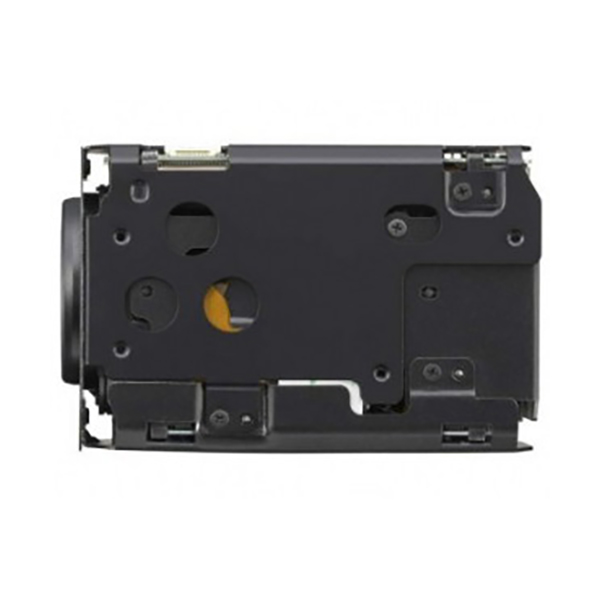

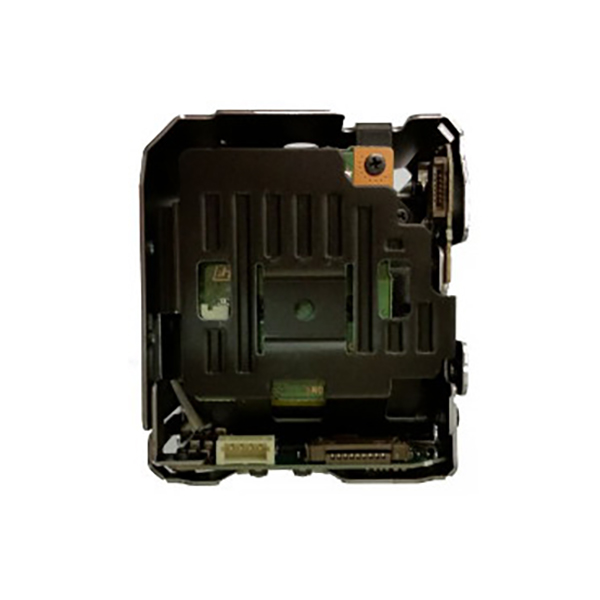

Sony FCB camera block
The user conducts secondary development and design. This series of camera components has been specially designed and developed for integrated installation in dome/gun, mobile police, automatic photo booth, video booth and amblyopia.
SONY FCB-EX995EP is equipped with a 1/4-inch EXview HAD CCD, a 28x optical zoom lens, wide dynamics, and image stabilization.
SONY FCB-EX995EP key feature:
(1) The camera unit is equipped with a newly developed 28x smart lens with f=1.35. This lens has a fast zoom capability (2.5 seconds from the far end to the wide end) and is stable and durable.
(2) Support progressive scan technology
(3) Equipped with digital output interface
(4) Multiple operation modes
(5) Support enhanced digital drop function
(6) Wide dynamic function supporting new technology: automatic wide dynamic, interlaced mode width Dynamic and progressive mode wide dynamic
(7) support image anti-shake function
(8) high resolution up to 550 TV line
(9) support advanced white balance mode
(10) support -5oC to 60oC operating temperature range
(11) Support temperature reading function
(12) support slow AE response function
(13) support color enhancement function
(14) Continuing the functions supported by the C and D versions
