Sony new color camera block FCB-EW9500H model specification

SONY’s new color camera block FCB-EW9500H model parameters, SONY’s new FCB-EW9500H has been on the market for more than a year, so what are the characteristics of this integrated camera movement?

The following by Shenzhen Xuan Zhan Technology Co., Ltd. to answer the analysis for you.



First, FCB-EW9500H characteristics

1, video output: digital (HDMI).

2, SONY FCB-EW9500H 400W HD integrated movement camera components.

3. The FCB-EW9500H camera assembly is equipped with a 1/1.8 Type STARVIS CMOS Sensor imager supporting full HD resolution (1920 x 1080) and a 30x optical zoom lens to achieve excellent zoom performance.



Two, image sensor type and effective pixel number

Image sensor type: 1/1.8 STARVIS CMOS sensor; Effective pixel count: about 4.17 million pixels.

This camera uses a 1/1.8-inch lens ™ CMOS (complementary metal Oxide Semiconductor) image, sensor (~ 4.17 million effective pixels)

Support high definition to produce high quality images, images.

Using the Image Signal Processor (ISP), you can do the following to obtain the image.

-4M 60fps/ Full HD 60fps output image

The following functions are provided.

– Noise reduction (NR)

– Wide dynamic range mode (Wide D), visibility enhancer (VE) and mist eliminator

-Super + image stabilizer, considering environmental protection, the module includes both lead-free and halogen-free, circuit boards.

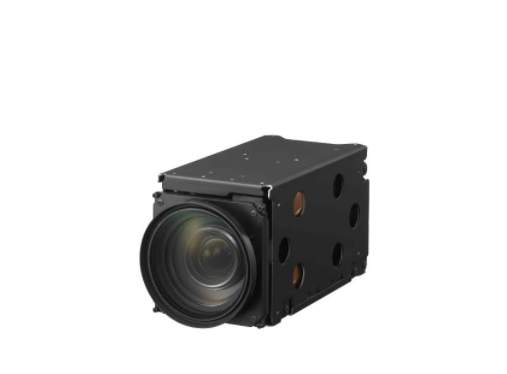

3. SONY FCB-EW9500H 400W HD integrated movement camera component product pictures

Sony new color camera block FCB-EW9500H model specification - Company News - 1

SONY FCB-EW9500H

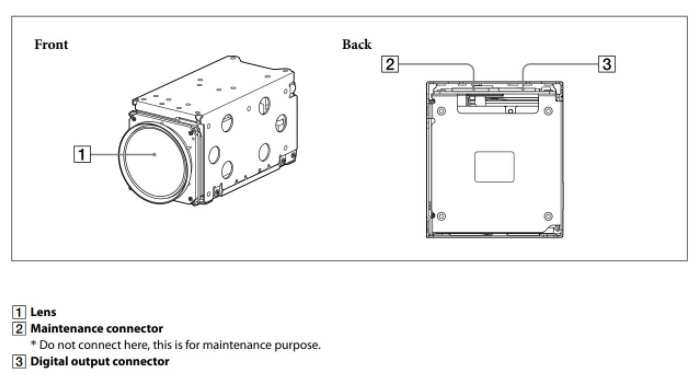

Four, control design position

Sony new color camera block FCB-EW9500H model specification - Company News - 2

SONY FCB-EW9500H control design position



Five, where can I download 2021 SONY new color camera module FCB-EW9500H model parameters?

Customers can visit “Sony FCB-EW9500H(FCBEW9500H) 4M-HDMI 30x Optical Zoom Camera Block“, or consult our customer service staff to obtain the latest SONY parameter manual.
