Electronic colposcopy is the fourth generation of high-tech digital imaging system integrating modern digital electronic technology and computer technology. Through the high-definition camera to enlarge the examination site, the computer real-time clear image of the examination site displayed on the computer monitor, its high quality light source and high magnification of the clear image can identify very small lesions. The doctor can observe the lesion on the computer monitor, which is easy to operate and can be used for both diagnosis and treatment.
What practical solutions will Xuanzhan Technology, as the official authorized agent of SONY, and 15 years (by March 2023) of video product secondary development experience, bring to the electronic colposcopy industry? I hope you can find the ideal electronic colposcopy solution here.
Electronic colposcopy solution (III) : SONY FCB-ER8530 with HDMI 4K interface board

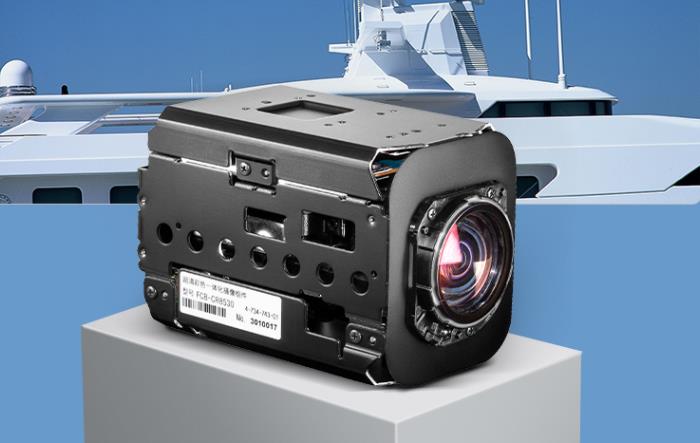

SONY FCB-EV8530
The development of electronic vaginoscope is becoming more and more mature, and many users have adopted 4K ultra HD cameras, which not only have clear and delicate pictures, but also make it easier to identify smaller lesions, but also are the future development direction.
1. Main components
(1) SONY FCB-ER8530
(2) HDMI 4K interface board
(3) LVDS line
(4) 4K ultra HD video capture card
(5) Computer (PCI/E slot)
(6) HDMI cable
2. Plan implementation
SONY FCB-ER8530 autofocus camera movement, using 1/2.5 TYPE Exmor R CMOS sensor, equipped with 20x optical zoom lens, 2160p/30fps 4K ultra HD output, advanced electronic fog through and high dynamic wide dynamic can greatly improve the picture definition, at the same time, Image stabilization, high highlight suppression and low light to achieve clear images, can also effectively improve the picture quality, SONY 4K ultra HD camera movement FCB-ER8530, is the future development direction of electronic colposcopy solutions.
FCB-ER8530 automatic focus camera movement is connected to the HDMI 4K interface board independently developed by Xuanzhang Technology through LVDS cable, and then connected to the HDMI 4K interface board and computer through HDMI cable, which can automatically identify the 4K ultra HD video format of the movement. The images captured by the FCB-ER8530 camera are instantly displayed on the computer screen, supporting 720P, 1080I, 1080P and 2160P frame rates.
After the FCB-ER8530 autofocus camera movement is connected to the HDMI 4K interface board, it can realize the functions of zoom, focus, gain and white balance through its own five-way keys or RS-485 and other control devices.
According to the user needs, the development of wired or wireless external remote control, remote control button number is not limited, can control the FCB-ER8530 camera zoom in and out of a variety of functions, in addition, can also be connected to the external foot switch, mainly to achieve the camera freeze photo and other functions.

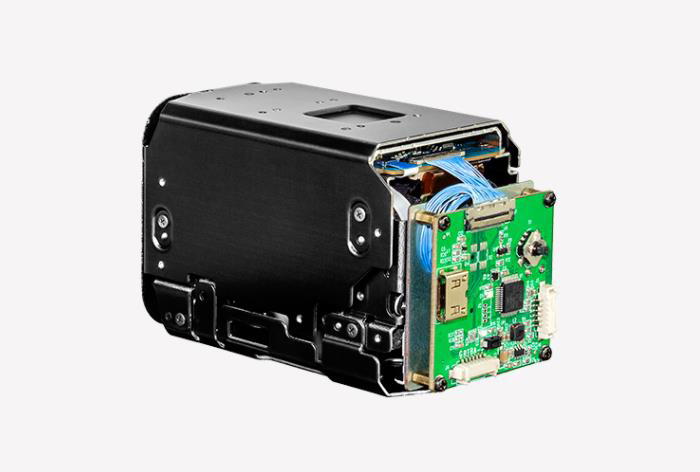

SONY FCB-EV8530 with interface board
For the secondary development of video products, Xuanzhan Technology has rich practical experience, and can assist you to formulate the electronic vaginoscope solution you want. If you think it is not perfect enough, you can first read the following two solutions before making a decision.
SONY FCB-EV7520+USB3.0 interface board, Digital electronic vaginoscope solution (1)
SONY FCB-EV7100+3G-SDI interface board, Digital electronic vaginoscope solution (II)
