Sony FCB camera block

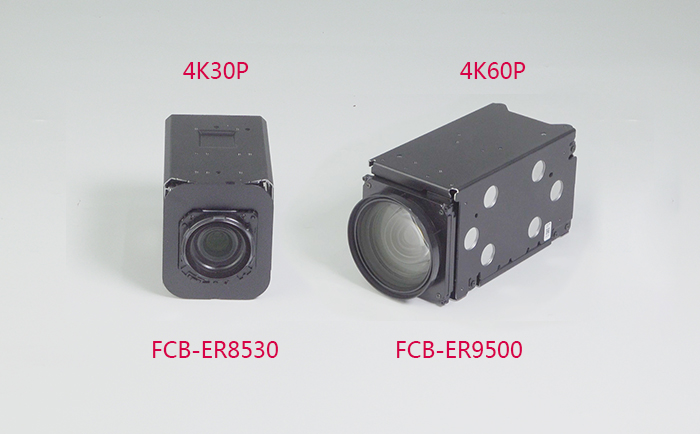

FCB-ER9500 and FCB-ER8530 are SONY 4K ultra HD integrated camera modules, where the FCB-ER8530 image format is up to 2160P30, and the FCB-ER9500 can reach up to 2160P60, which is SONY’s first 4K60P integrated camera module.
As an official authorized distributor of SONY, we will exhibit FCB-ER9500 for the first time at the 9th Shenzhen International UAV Exhibition in 2024. During the exhibition, we will showcase the advanced functions and performance of FCB-ER9500. Welcome to experience and consult.
In addition to the differences between 4K60P and 4K30P, what will be the better performance of the FCB-ER9500 compared to the FCB-ER8530?
First, let’s look at the difference between 4K60P and 4K30P
The FCB-ER9500 and FCB-ER8530 both have 4K (3840 x 2160 pixels), the former is recorded at 60 frames per second, the latter only 30 frames per second, so the FCB-ER9500 can provide a more natural and smooth video picture, of course, but also must have higher processing power and storage space.
Then, look at the sensors
According to SONY’s message to the dealer, in terms of sensors, the FCB-ER9500 follows the size of the FCB-9500 series 1/1.8 “, and the FCB-EV9520L version of STARVIS2 CMOS, such a hardware configuration, compared to the FCB-ER8530, what are the better quality improvements?
The 1/1.8 inch sensor of the FCB-ER9500 is larger than the 1/2.5 inch sensor of the FCB-ER8530, which means that with the same number of pixels, the larger sensor size of the FCB-ER9500 helps to increase the physical area of a single pixel, thereby improving light reception.
STARVIS CMOS is SONY’s latest low-light level image sensor technology, which supports higher frame rate, high sensitivity, high sensitivity, low illumination, and low noise. The STARVIS2 CMOS used in the FCB-ER9500 has higher frame rate support and higher wide dynamic range, so it supports 4K60P, compared to the FCB-ER8530 of the Exmor R CMOS sensor. The FCB-ER9500 is capable of capturing brighter and sharper images in low-light environments, making it ideal for night monitoring and low-light conditions.
Again, compare the multiples of optical zoom
25x optical zoom compared to 20x optical zoom, the FCB-ER9500 has more powerful zoom than the FCB-ER8530, which can provide longer distance capture, not only without loss of image quality, keeping details sharp, but also provide better magnification.
In addition to the differences in the above functions, compared with the FCB-ER8530, the FCB-ER9500 has super image stabilization, excellent optical axis consistency, infrared night vision function, and regional automatic exposure, regional automatic focus, regional automatic white balance and other excellent performance.
