After the successful launch of the new USB3.0 Capture Module (equipped with TYPE-C interface), XENT Technology – as the official authorized agent of SONY (China) FCB camera and the secondary development solution provider of high-definition video products, recently, once again, A 4K USB3.0 Capture Module integrating 4K ultra HD resolution, USB3.0 high-speed data transmission and the advantages of TYPE-C and HDMI dual 4K output is launched. With its excellent performance and flexible connection mode, the module has quickly attracted wide attention both inside and outside the industry.

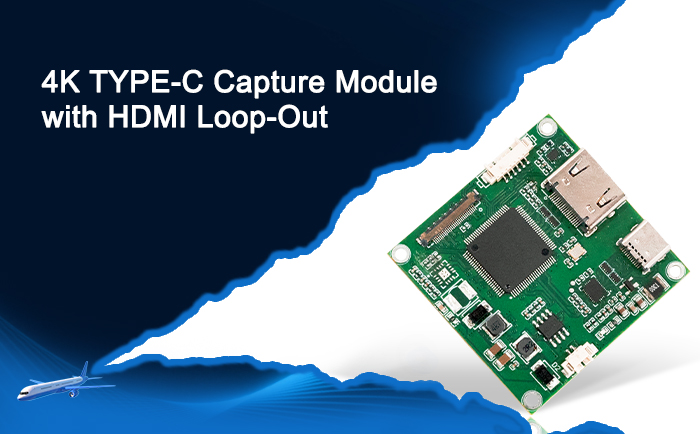

Product overview
4K USB3.0 Capture Module with its high-speed data transmission and convenient acquisition functions, suitable for SONY FCB series 4K HD integrated camera movement and other LVDS interface 4K ultra HD cameras.
It realizes high-speed data transmission of 4K ultra-high-definition images through the USB3.0 TYPE-C interface, and the transmission rate can reach 5Gbps.
At the same time, support 4K HDMI loop, this design makes the HDMI video signal can be flexibly transmitted to multiple devices, can be more convenient to achieve signal transmission and expansion, to meet different application needs.
Technological advantage
1, high-speed transmission: 4K USB3.0 Capture Module based on the USB3.0 standard development, the transmission rate of up to 5Gbps, enough to support the real-time transmission of 4K ultra-high-definition video signals, to ensure that the picture is clear and smooth, but also to reduce the delay in the data transmission process.

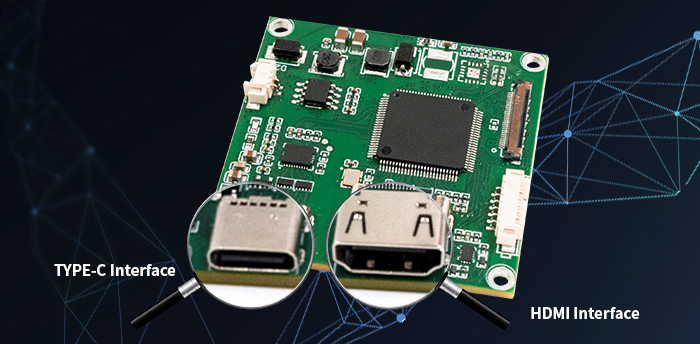

2, dual 4K output: 4K USB3.0 Capture Module supports TYPE-C and HDMI dual 4K interface, of which TYPE-C supports 2160P/15FPS, HDMI loop supports 2160P/30FPS.
This design of the acquisition module considers the compatibility of different devices, so that users can choose the appropriate interface for 4K video signal transmission according to their needs. The flexibility of the TYPE-C interface is particularly suitable for laptops, PCS and mobile devices, while HDMI loop out provides a solution for users who require higher frame rate output. The combination of TYPE-C and HDMI loop provides users with powerful video processing capabilities, ensuring clear and smooth image output in a variety of application scenarios.
3, platform compatibility: 4K USB3.0 Capture Module supports a variety of operating systems and platforms, including Windows, Mac and Linux systems, without additional drivers or configuration, to achieve real-time data transmission and control.
4, control function: 4K USB3.0 Capture Module can control the camera through the computer and TTL serial port to achieve remote control, such as adjusting the focal length, exposure, etc.
At the same time, it can also communicate with the external MCU, which can realize the relevant control of the camera and flexible interconnection with other devices, providing more powerful support for video acquisition and processing.
5, cost-effective: 4K USB3.0 Capture Module will be the acquisition, coding, control and other functions integrated in a module, reduce the external device connection, improve the stability and reliability of the system, more importantly, greatly reduce the cost.
Application scenario
1, video capture: widely used in the field of video capture, such as teaching system, medical, security, etc., through efficient coding and transmission, video surveillance and real-time transmission.
2, video conference: with the rise of telecommuting, 4K USB3.0 Capture Module can collect and transmit the video signal of the camera to the computer, to achieve real-time transmission of high-definition pictures.
3, live video: support high-quality video live, to meet the needs of game live, online education and so on.

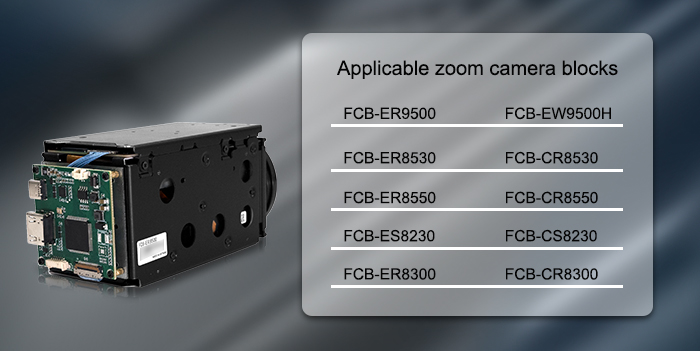

Applicable camera
FCB-ER9500,FCB-ES8230,FCB-ER8530, FCB-ER8550, FCB-ER8300, FCB-EW9500H
Sum up
This 4K USB3.0 Capture Module has become a new star in the field of video capture with its high-speed transmission, dual 4K output interface design, powerful compatibility and control functions. It not only meets the current market demand for 4K ultra HD video capture, but also provides users with a more cost-effective solution with the characteristics of integration. With the continuous progress of technology and the growth of market demand, this module will undoubtedly play a more important role in the field of multimedia data acquisition and transmission in the future.
