Sony Camera Datasheet

Download SONY’s official Technical Specsheet——FCB-ES8230

SONY integrated camera official technical specifications, you can query the camera specification summary, function, connection protocol, detailed specifications, electrical characteristics, operational precautions and packaging content, FCB-ES8230 technical specifications are what? SONY official authorized agent Ruiloog for you to analyze one by one, and provide the specification download link.

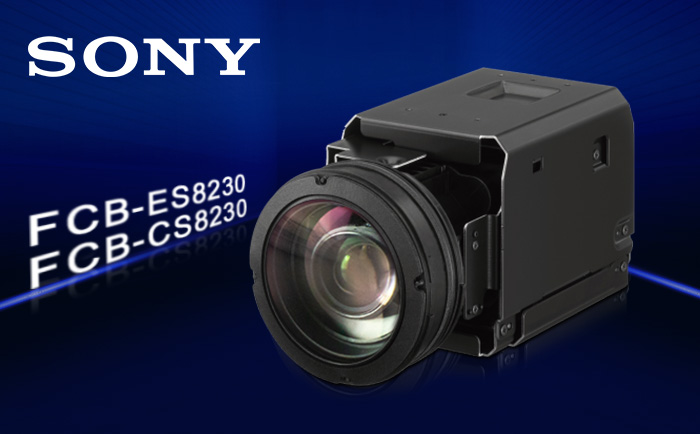

  FCB-ES8230



First, download way

1. SONY Official website:
Visit Sony homepage.
Find technical specifications for related products in the Product Support or download Center area.
Enter the product model (such as FCB-ES8230) to search.
Download and save the official technical specifications.



Download SONY's official Technical Specsheet——FCB-ES8230 - Sony Camera Datasheet - 2



2. Official authorized agent website:
For example, Shenzhen Xuan Exhibition Technology Co., LTD. SONY movement China general agent.
Visit their official website and find the technical specifications of the relevant products in the product center or download center.
Also enter the product model to search and download.

Ii. Overview of technical specifications (Taking FCB-ES8230 as an example)

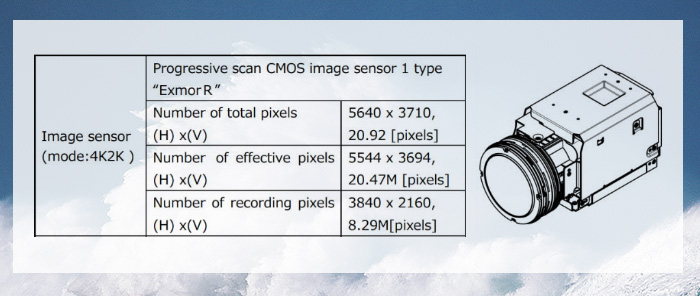

Image sensor:
Type: 1/1-inch Exmor R CMOS.
Effective pixels: About 20.5 million.

Footage:
Optical zoom: 12x.
Digital zoom: 12x.
Super resolution zoom: 4K 1.5x, 1080P 2.0x.
Lens parameters: f=3.9mm~46.8mm, F1.82.0.
Focusing range: 10mm~2100mm.

Video output:
Supports a variety of image formats, such as 2160P (4K), 1080P, 720P, etc.
Video output mode: HDMI.

Controls:
Control mode: VISCA protocol.
Baud: 9600/19200/38400 BPS / 115200 BPS.

Image function:
With wide dynamic, electronic fog, noise reduction, privacy area shielding, day and night switching, high highlight suppression and other functions.

Other features:
Image stabilization function, automatic gain control.
Automatic white balance (including automatic, manual, indoor, outdoor, outdoor automatic, one-click trigger, sodium lamp mode).
Backlight compensation, aperture control, screen effects (such as flip, black and white, screen freezing, etc.).
Slow exposure, high highlight suppression, temperature reading, color enhancement and other functions.
Power Supply and working environment:
Power requirements: 6.0V to 12.0VDC.
Storage temperature: -20°C to 60°C
Storage humidity: 20%~95%.
Operating temperature: -5°C~60°C.
Working humidity: 20%~80%.



Third, precautions
The technical specifications downloaded may contain more detailed information such as specific dimensions, weight, power consumption, etc.
Through the above channels, you can easily obtain SONY’s official technical specifications for the FCB-ES8230 and FCB-CS8230, and learn more about the performance and features of these two products.
