4K UHD Surgical Video Camera HDMI (Regular Version)

4K UHD Surgical Video Camera Overview The 4K Ultra HD surgical video camera for medical field developed by our company is integrated with Sony 1/2.5-inch CMOS image processor with up to 8.51 mega pixels. In addition, the camera carries an optional 20x optical zoom lens,providing unique ultra HD image, showing real time and high-definition picture quality. The camera supports HDMI video signal output, so the stability and high definition image transmission are ensured. Equipped with autofocus functionthe camera operation is easier and more convenient. The camera adopts ergonomic design. By using VOLERS HD video recording system, the surgical video camera can achieve real-time video recording and realize the whole process of video recording through the operation. In addition, we have a number of patent Copyrights to ensure the uniqueness and innovation of the product. 4K UHD Surgical Video Camera Application Widely used in clinical medical operating room, remote teaching, clinical skills training, dentistry,teaching,pet surgery scene video recording,scientific research and clinical assistance in hospitals or medical schools such as medical aesthetics. 4K UHD Surgical Video Camera Features Adopt SONY's new generation 1/2.5 Type “Exmor” CMOS Sensor，20x optical zoom (medical grade), 12x digital zoom. Up to 2160P@30HZ video image format, up to 8.51 mega effective pixels.High-quality images with a maximum resolution of 3840X2160 can be achieved. Integrated design, in line with ergonomics, no dust, easy to clean. Standard ONDAL. spring arm docking bracket makes the instalation easy. RS485 control, PELCO control protocol. Simple operation interface, multi-functional touch key panel with high zero sensitivity.Convenient and fast debugging, scene switching, focusing, zoom and other functions. Automatic, fast and precise focusing, true color reproduction under high brightness, automatic strong light suppression function. Customized HDMI 2.0 dedicated HD video cable with transmission distance of about 5m ~ 10m. 4K UHD Surgical Video Camera Button Functions Full HD Surgical Video Camera Regular Version Button Functions

Full HD Surgical Video Camera Regular Version Button Functions-2

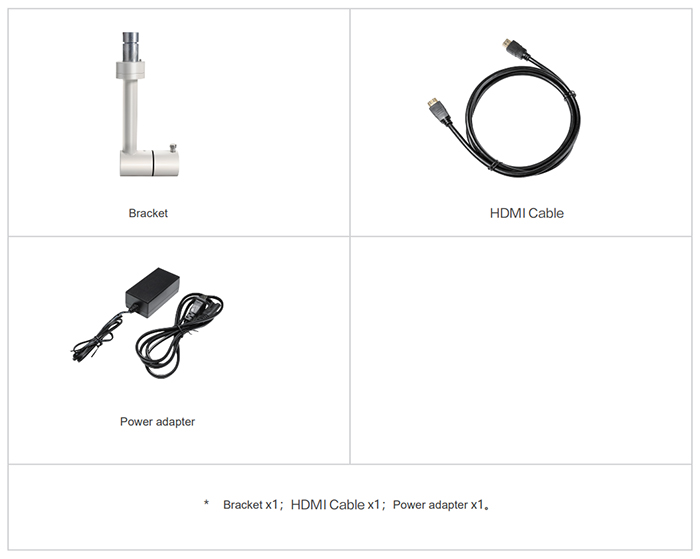

4K UHD Surgical Video Camera Product accessories 4K UHD Surgical Video Camera Product accessories-4

Specifications

4K UHD Surgical Video Camera(Regular Version) Specifications

Image sensor	1/2.5 Type “Exmor” CMOS with progressive mode
Signal system	2160P/29.97,2160P25,1080p/59.94,1080p/50,1080p/29.97,1080p/25,1080i/59.94, 1080i,720p/59.94, 720p/50,
Number of effective pixels	About 8.51 megapixels (16:9)
Focus mode	Support manual focus and autofocus (AF)
Lens focal length	20x optical, 12x electronic magnification F=4.4mm to 88.4 mm, F2.0 to F3.8
Dynamic range	Dynamic Range Extender (DRS) , combine the image from the darkest and brightness area
Electronic Shutter	1/25、1/50、1/100、1/120、1/150、1/300、1/1000、1/2000、1/4000、1/10000,etc.
White balance	Auto, ATW, Indoor, Outdoor, One，Push WB, Manual WB,Outdoor，Auto
Video signal	HDMI
Remote control	RS485 communication, capable to control the camera remotely
Control Protocol	PELCO-P/D protocol
Power source	DC12V~24V 1.5A
Power	Approx. 6.8 W
Operating temperature	-5 ° C to 60 ° C
Storage temperature	-20 ° C to 65 ° C
Size	225120195mm(without adapter hook and sterilization handle)
Net Weight	about2.8KG(with adapter hook)
