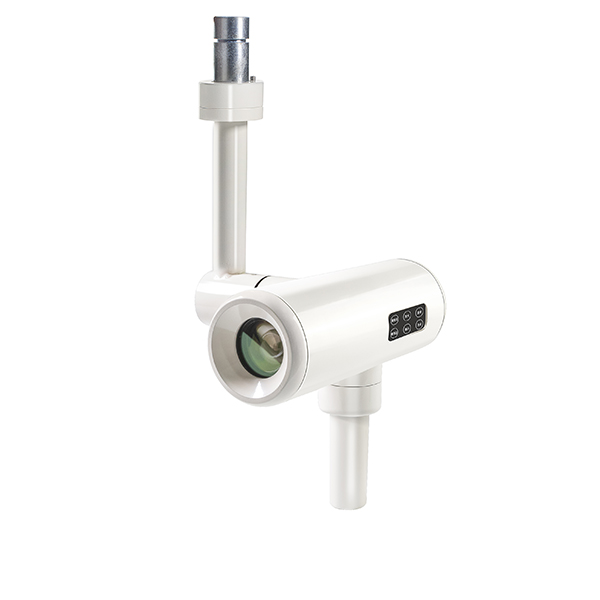

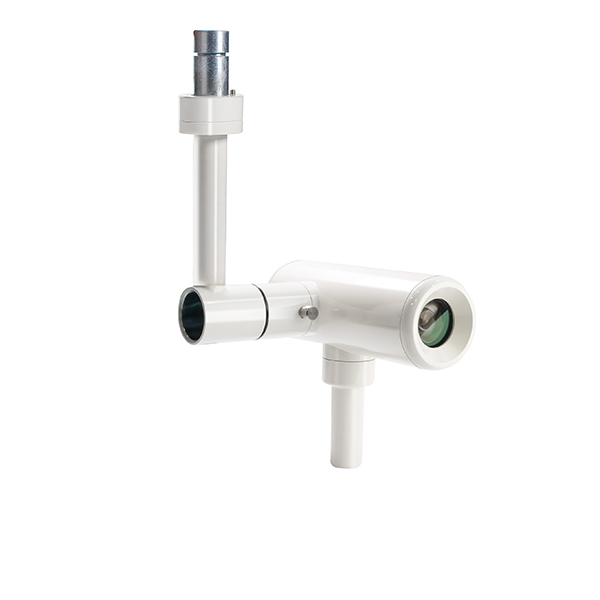

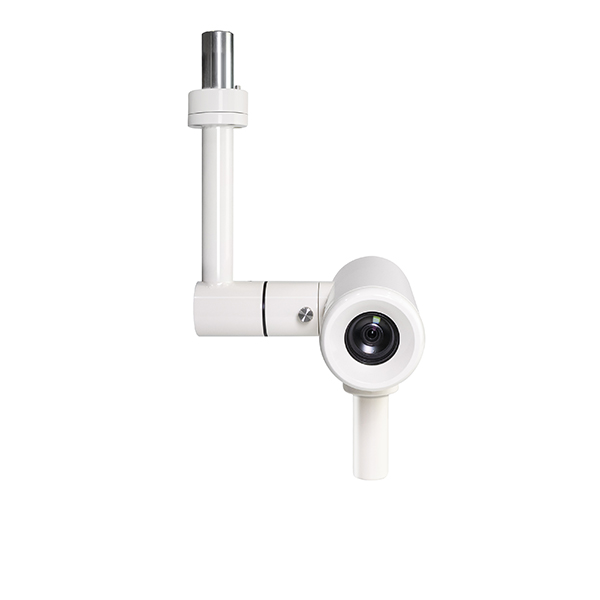

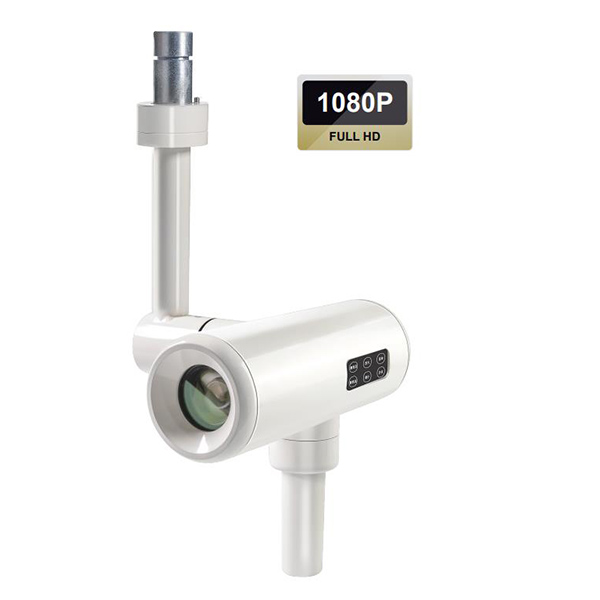

Sony FCB camera block
The full HD surgical video camera for medical field developed by ourcompany is integrated with Sony 1/2.8-inch CMOS image processorwith up to 2.38 mega pixels.
In addition, the camera carries 30x opticalzoom lens, providing uniqueultra HD image, showing real time and high-definition picture quality.The camera supports HD-SDI and 3G-SDI video signal output, so thestability and high definition image transmission are ensured.
Equipped with autofocus function, the camera operation is easier and moreconvenient. The camera adopts ergonomic design. By using VOLERSHD video recording system, the surgical video camera can achievereal-time video recording and realize the whole process of video recordingthrough the operation. In addition, we have a number of patent Copyrightsto ensure the uniqueness and innovation of the product.

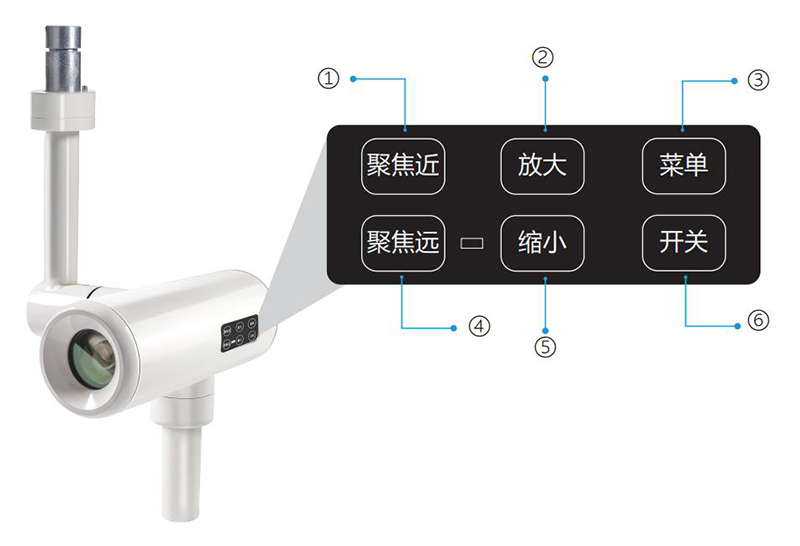

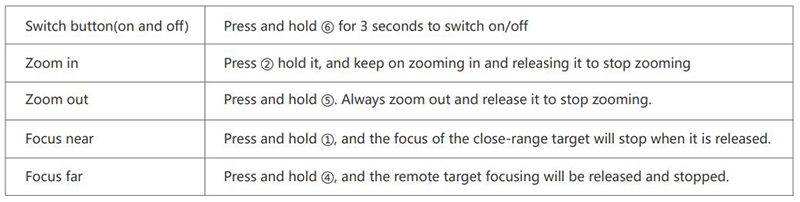

Full HD Surgical Video Camera Application Widely used in clinical medical operating room, remote teaching, clinical skills training, dentistry,teaching,pet surgery scene video recording,scientific research and clinical assistance in hospitals or medical schoolssuch as medical aesthetics. Full HD Surgical Video Camera Features ● Up to 1080P @ 60HZ full HD video image format, up to 2.38 mega effective pixels.High-quality images with a maximum resolution of 1920×1080 can be achieved. ● Automatic, fast and precise focusing, true color reproduction under high brightness, automatic strong light suppression function. ● The scene shooting mode can be customized according to the user’s needs, and the multi-scene mode can be switched quickly. ● Simple operation interface, multi-functional touch key panel with high zero sensitivity.Convenient and fast debugging, scene switching, focusing, zoom and other functions. ● Customized 75 ohm SDI video connector, the longest transmission distance is about 100m. ● The special control software for shadowless lamp perfectly solves the problem of light spots in the surgical field.(Software note number of HD surgical field camera control system: 2017SR557533) ● Laser cross cursor auxiliary positioning system, to solve the difficulty that the camera can not aim at the surgical field. ● Integrated design, in line with ergonomics, no dust, no dust, easy to clean, standard ONDAL spring arm docking bracket,And that installation is convenient.(Appearance patent number: ZL 2017 3 0146926. 6 Appearance patent number: ZL 2018 3 0234305. 8)(Auxiliary positioning system patent No.: ZL 2017 2 1638974. 8) ● VOLERS HD video recording system supports external pickup and sound box to realize real-time audio intercom between operating room and demonstration room; It also supports real-time audio and video recording. ● RS485 control, PELCO control protocol. Full HD Surgical Video Camera Button Functions

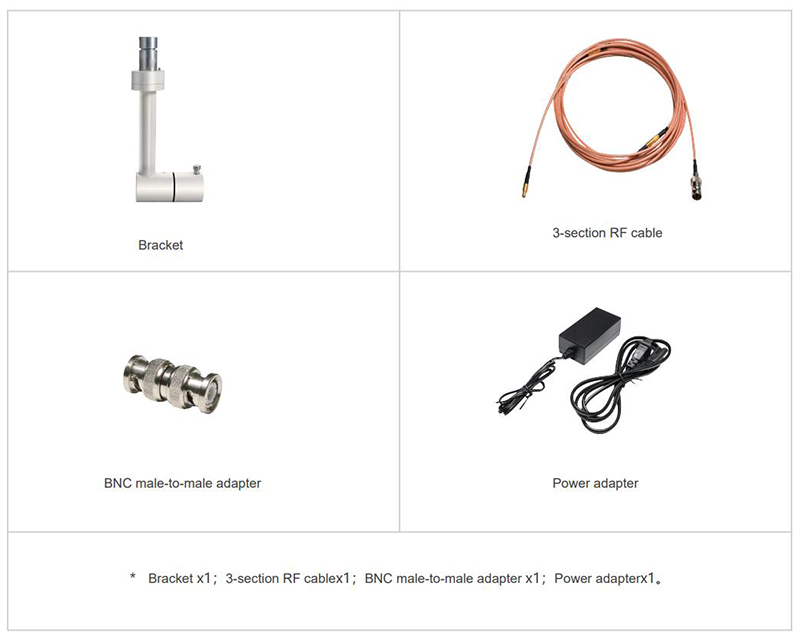

Full HD Surgical Video Camera Product accessories
Specifications
| Image sensor | 1/2.8"， 2.0M CMOS Sensor |
| Signal system | 1080p/60, 1080p/50, 1080p/30, 1080p/25, 1080i/60, 1080i/50 |
| Number of effective pixels | About 2.38 megapixels |
| Resolution | 1920X1080 |
| Lens focal length | 30x optical, 12x digital zoom F= 4.3 mm to 129 mm, F1.6 to F4.7 |
| Viewing angle (horizontal) | 58.4°(W)～3.2°(T) |
| Object distance | 1.2m (W) ~ infinity (T) |
| Minimum illumination | 0.5 LUX |
| Auto iris | Yes |
| Day and night switching | Yes |
| Video output | HD-SDI、3G-SDI |
| Camera control interface | Pelco D protocol, baud rate: 2400kb 4800kb 9600kb/s, address bits: 1~254 bits optional |
| S/N signal-to-noise ratio | above 50 dB |
| Electronic shutter | 1/50～1/10,000s |
| White balance | Auto/ATW/Indoor/Outdoor/One-touch/Manual |
| Gain | automatic/manua |
| Automatic exposure control | automatic/manual/priority mode |
| Synchronization signal | internal |
| Wide dynamic range | Yes |
| Special features | backlight compensation, strong light suppression, high-resolution mode setting |
| Privacy zone masking | Yes (8 areas optional) |
| Title displays | 1 line of 20 characters |
| Focus system | automatic (sensitivity: normal, low)/one-button AF/manual |
| Image effects | black and white/horizontal mirror/vertical flip |
| Storage temperature | -20～60℃ |
| Operating temperature | 0～50 °C (recommended) |
| Power supply | DC 12～24V 1.5A |
| Power consumption | 4W maximum |
| Weight | about 2.8kg (with adapter hook) |
| Size | 225*120*195mm (without adapter hook and sterilization handle) |
