4K UHD Surgical Video Camera HDMI (Remote Control Version)

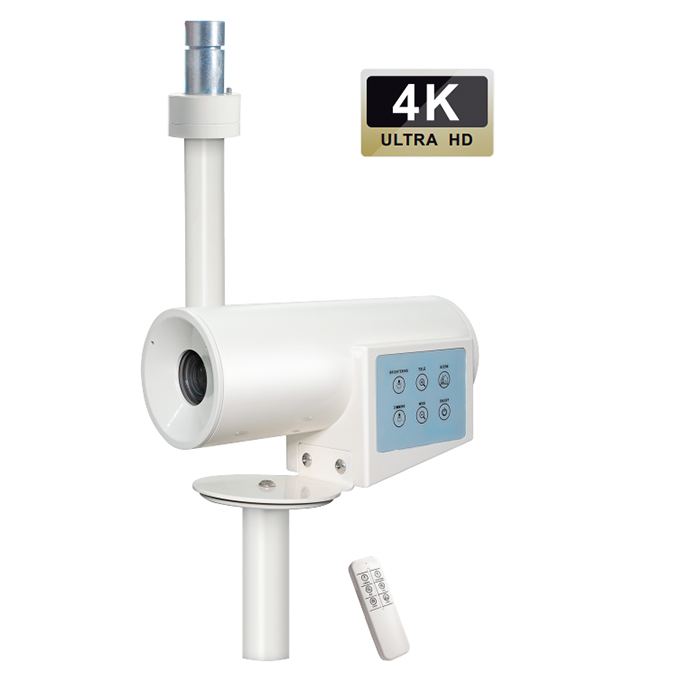

4K UHD Surgical Video Camera HDMI (Remote Control Version) Overview The 4K Ultra HD surgical video camera for medical field developed by our company is integrated with Sony 1/2.5-inch CMOS image processor with up to 8.51 mega pixels. In addition, the camera carries an optional 20x optical zoom lens,providing unique ultra HD image, showing real time and high-definition picture quality. The camera supports HDMI video signal output, so the stability and high definition image transmission are ensured. Equipped with autofocus function and 2.4G wireless remote controlwithout dead angle control, the camera operation is easier and moreconvenient. The camera adopts ergonomic design. By using VOLERSHD video recording system, the surgical video camera can achievereal-time video recording and realize the whole process of videorecording through the operation. In addition, we have a number ofpatent Copyrights to ensure the uniqueness and innovation of theproduct.

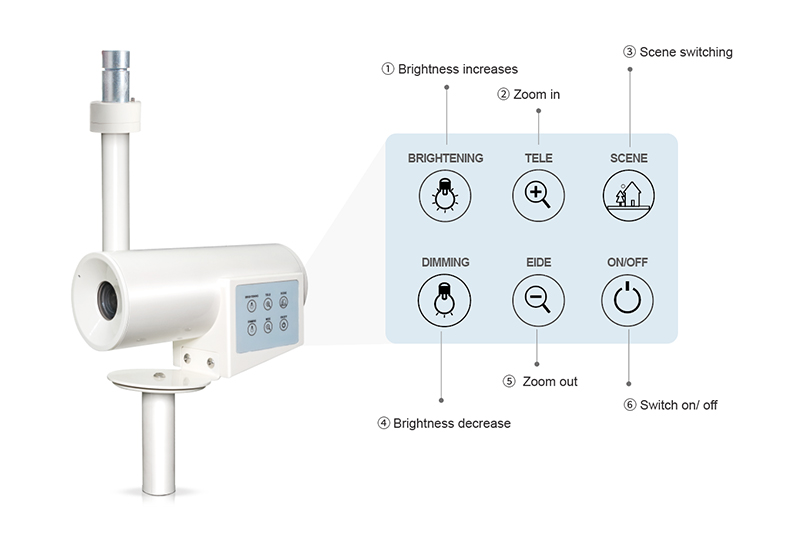

4K UHD Surgical Video Camera HDMI (Remote Control Version) Application Widely used in clinical medical operating room, remote teaching, clinical skills training, dentistry,teaching,pet surgery scene video recording,scientific research and clinical assistance in hospitals or medical schools such as medical aesthetics. 4K UHD Surgical Video Camera HDMI (Remote Control Version) Features Adopt SONY's new generation 1/2.5 Type “Exmor” CMOS Sensor，20x optical zoom (medical grade), 12x digital zoom Up to 4K Ultra HD video image format, up to 8.51 mega effective pixels.High-quality images with a maximum resolution of 3840X2160 can be achieved. Automatic, fast and precise focusing, true color reproduction under high brightness, automatic strong light suppression function. The scene shooting mode can be customized according to the user's needs, and the multi-scene mode can be switched quickly. Simple operation interface, multi-functional touch key panel with high zero sensitivity.Convenient and fast debugging, scene switching, focusing, zoom and other functions. 2.4G wireless remote control without dead angle control, to solve the traditional cable constraints. The special control software for shadowless lamp perfectly solves the problem of light spots in the surgical field.(Software note number of HD surgical field camera control system: 2017SR557533) Laser cross cursor auxiliary positioning system, to solve the difficulty that the camera can not aim at the surgical field. (Auxiliary positioning system patent No.: ZL 2017 2 1638974. 8) Integrated design, in line with ergonomics, no dust, easy to clean. Standard ONDAL. spring arm docking bracket makes the instalation easy. (Appearance patent number: ZL 2017 3 0146926. 6 Appearance patent number: ZL 2018 3 0234305. 8) VOLERS HD video recording system supports external pickup and sound box to realize real-time audio intercom between operating room and demonstration room; It also supports real-time audio and video recording. RS485 control, PELCO control protocol. Customized HDMI 2.0 dedicated HD video cable with transmission distance of about 5m ~ 10m. 4K UHD Surgical Video Camera HDMI (Remote Control Version) Button Functions
