  5. DK-CZ08210X1A, Panasonic 4K Camcorder zoom block camera
DK-CZ08210X1A-2

DK-CZ08210X1A, Panasonic 4K Camcorder zoom block camera

DK-CZ08210X1A is a Panasonic all-in-one camera module. It features a 1/2.3-inch CMOS sensor with a total pixel count of approximately 18.91 million. Paired with a 20x optical zoom lens, it can achieve high-definition 4K ultra-high definition and vivid color quality.

在线询价
  • 产品详情
Overview: DK-CZ08210X1A is a Panasonic all-in-one camera module. It features a 1/2.3-inch CMOS sensor with a total pixel count of approximately 18.91 million. Paired with a 20x optical zoom lens, it can achieve high-definition 4K ultra-high definition and vivid color quality.

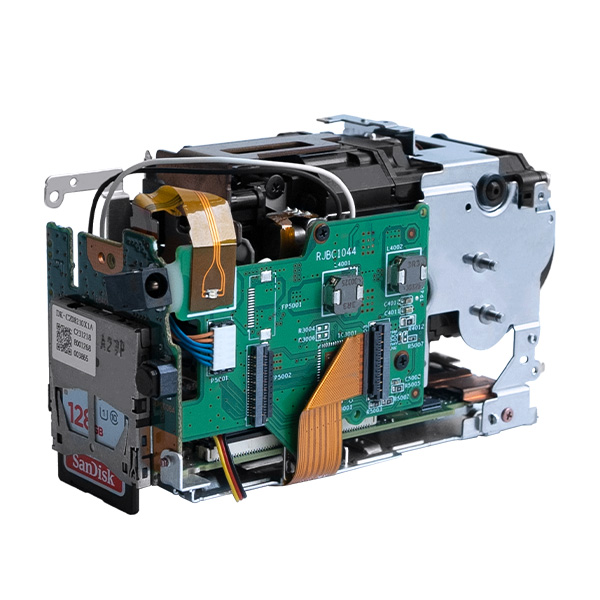

DK-CZ08210X1A-1

DK-CZ08210X1A supports 4K ultra-high resolution video recording. It features high-speed and high-precision auto-focusing, as well as optical hand shake correction functions. It can handle complex outdoor environments and output stable and clear images. Features: It adopts a 4K high-speed processing chip to achieve high-precision 4K natural picture quality photography, 25.9M ultra-clear photos, and record high-fidelity vivid colors 2. High-speed and high-precision auto-focusing technology and micro-drive technology enable rapid focusing and sensitive response of moving objects 3. Equipped with a 4K high-magnification zoom lens, it achieves 20x optical zoom, 25x4K iA zoom, and 40x high-definition zoom effects 4. A small 4K high-precision optical lens enables the camera to achieve a compact and lightweight structure 5. High-precision lenses are adopted to effectively suppress ghosting, flare, distortion and color cast, etc., achieving clear and vivid video recording 6. The 1/2.3 type BSI sensor with large-capacity 4K high-speed data readout effectively suppresses the longitudinal tilting (roller shutter) phenomenon of high-speed moving objects, achieving picture quality recording close to nature 7. The optical hand shake correction and tilt correction functions effectively reduce low-frequency jitter 8. The camera control mode is the UART interface, which is compatible with multiple baud rate Settings 9. +12V single power supply The HDMI output video can display OSD information such as video recording, photo taking, zoom ratio, video quality, and SD card writing 11. The function of taking photos in Video recording (Picture in Video) can be realized.

Product Specs

DK-CZ08210X1A Product Specs:
Model No.  Panasonic DK-CZ08210X1A
Image sensor Type 1/2.3-inch CMOS sensor
Total pixel count Approx. 18.91 Mega
Effective pixels of the video  4k：8.29Mega / FHD：6.10Mega（16:9）
Lens Optical zoom: 20x, iA zoom: 25x (4K), 40x (FHD)
f=4.08 mm (width) to 81.6 mm (narrow)
 F1.8～F3.6
Camera mode Format  MPEG-4
Camera pixel count  4K：3840*2160 FHD：1920*1080
Pixel count for taking photos  4K：6016*3384 FHD：4992*2808
Shutter speed (manual)  1/30～1/8000
Photographic mode Format  JPEG
Pixel count for taking photos  16:9：6784*3816 4:3：5216*3912
Shutter speed (manual)  1/2～1/2000
System Output interface  HDMI（1080i / 1080p）
Output format  PAL / NTSC
Control interface  UART
Baud rate  19200 / 38400 / 57600 / 115200 / 230400
External power supply  DC12V ±20%
Power Consumption approx. 5W when shooting videos
Mode iA Five types of automatic detection and correction functions
Tilt correction Two modes are available: Normal and Strong
Time setting System date and time setting
Storage Temperature  -40℃ - 70℃
Operating Temperature  -25℃ - 60℃
Storage Humidity  20% - 90%
Operating Humidity  20% - 80%
 Weight Approx. 163g
 Size  53.4mm × 61.5mm × 105.4mm
