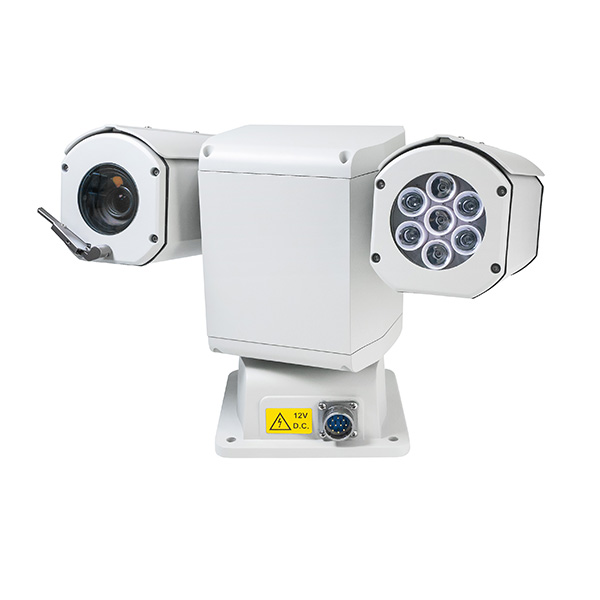

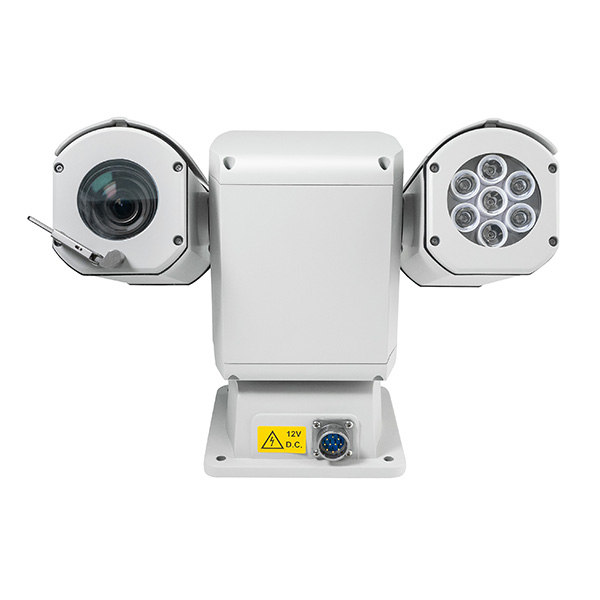

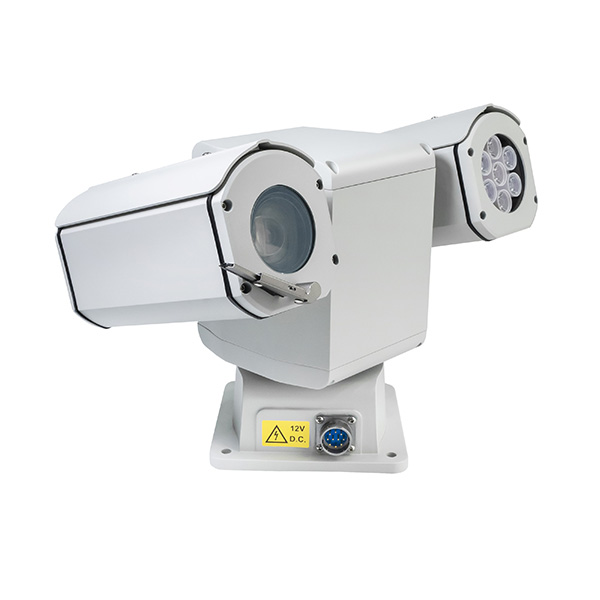

Long Range IR PTZ Camera VRS-806

Optional configuration: IP, SDI, IP + SDI dual output Lighting mode: infrared, white light, laser PTZ Camera VRS-806 Feature

The glass in the camera enclosure has the function of automatic defogging, which can effectively solve the repeated fogging and condensation of the glass caused by the temperature difference in the camera bin.
With 3D frame selection function, the monitoring operation is convenient.
With wiper function, the material has good weather resistance and is easy to replace.
Infrared fill light design, more flexible and reasonable fill light at night. White light is also available
The voltage stabilizing module has wide adaptability to power supply.
Die cast aluminum alloy design, protection grade IP66.
It can be expanded and equipped with thermal imaging。
Optional on-board shock absorber
The whole system adopts RS485 online upgrade to facilitate the customization, upgrade and update of PTZ program

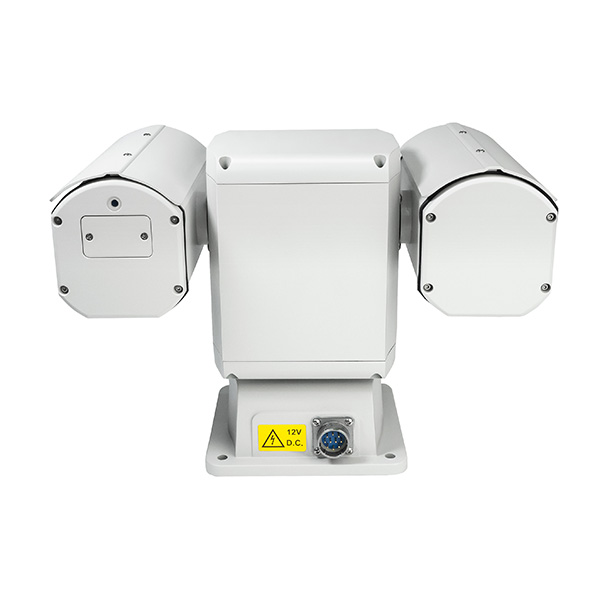

PTZ Camera VRS-806 Infrared : imported array infrared lamps, multi-group angle coordination, service life can reach 30,000 hours, night vision distance 100-120 meters White light : using high-intensity dot-matrix white light-emitting chips, the night vision distance is 80-100 meters Laser : Imported 808nm laser is used to achieve synchronous zooming, the angle is adjustable or automatically adjusted according to the multiple of the camera, the laser spot angle is 1° to 50°, and the laser power is optional Thermal imaging : thermal imaging equipment can be customized. PTZ Camera VRS-806-3

Camera parameters: (the zoom module is optional)

sensor	1/1.8 Exmor CMOS
Zoom	30x optical zoom
12x digital zoom
Focal length	f=5.5mm-180mm
Effective Pixels	2MP 1080P
SNR	≥50dB
Minimum illumination	0.001Lux (color)
0.0001Lux (B/W)
BLC	ON/OFF
White balance, aperture, focus	automatic / manual
Color/black and white automatic conversion	automatic
Electronic shutter	1/1～1/10,000s
Electronic fog penetration	SUPPORT
Electronic image stabilization	SUPPORT

Product application

PTZ Camera VRS-806 Product application: It can be widely used in vehicle mobile law enforcement, substation, iron tower, inspection robot and other scenes.

PTZ
Pan fastest speed	120°/S
Tilt fastest speed	100°/S
Pan manual speed control	0°—100°/S
Tilt manual speed control	0°—80°/S
Pan angle	360°endless rotation
Tilt angle	-90°— +90°
Preset	256 positions
Wiper	support
Fill light	IR：>100M
Relative humidity	<90%
Protection level	IP66
Working temperature	-40°C — +65°C
Power range	AC24V ±10% 45W Max/ DC12V OPTIONAL
weight	6kg

PTZ Camera/

Long Range IR PTZ Camera VRS-806
